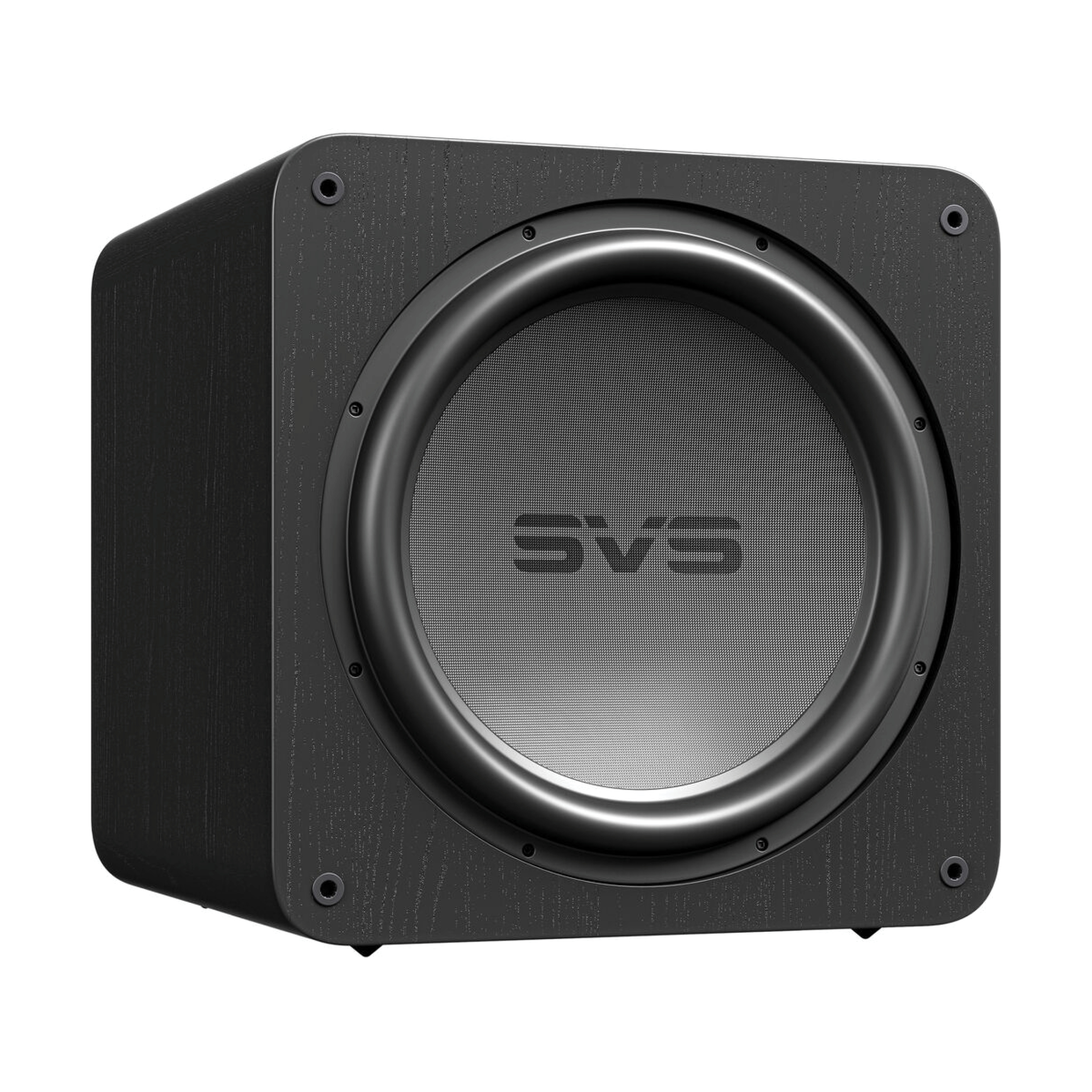

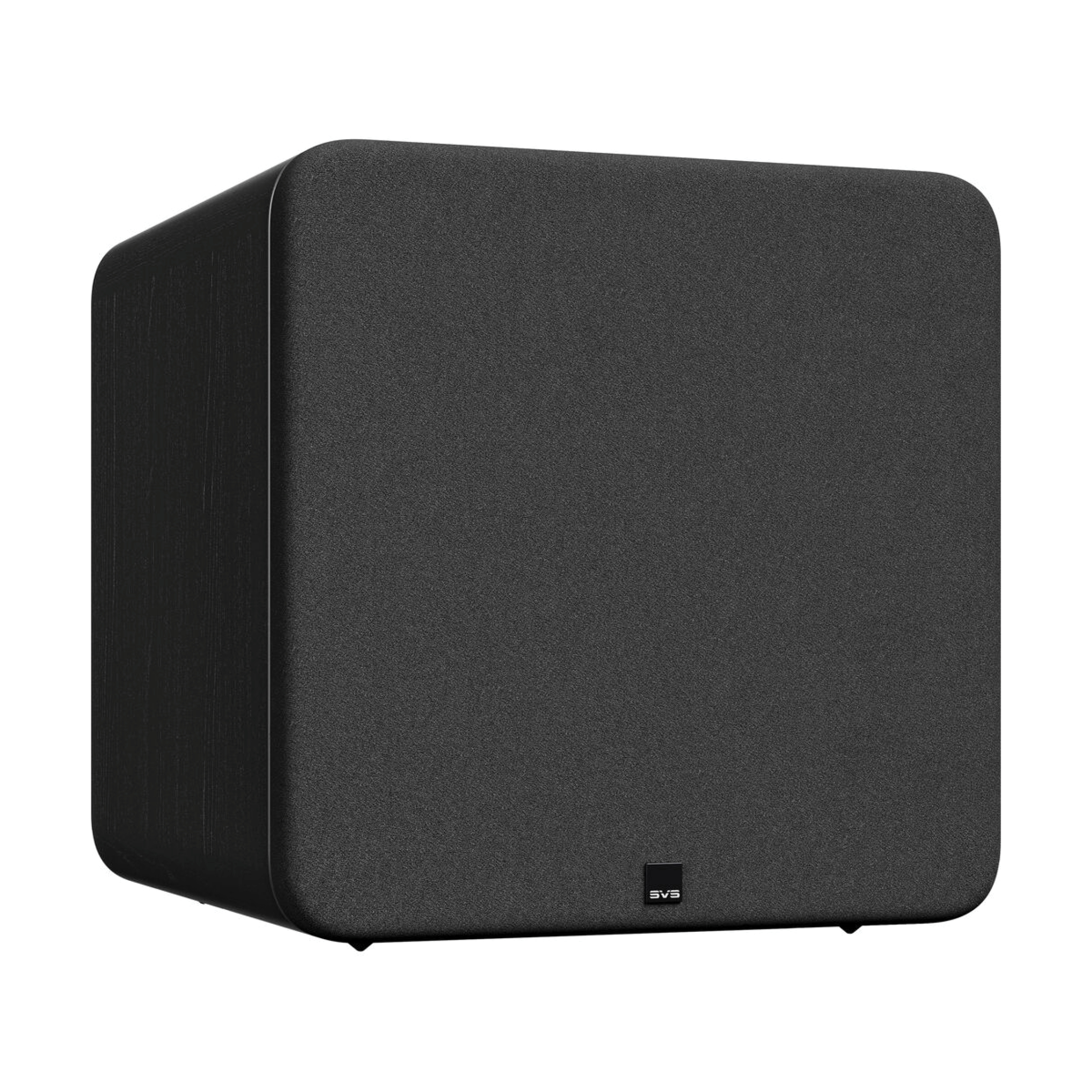

SVS SB-17 ULTRA Black Oak
Designed to achieve the pinnacle of low-end performance in your home cinema, the black oak-colored SB17-Ultra R|Evolution 17" Subwoofer from SVS features SVS' largest driver to date, with a 17" fiberglass composite cone woofer, joined by dual 8" voice coils and a 55 lb four-piece toroidal ferrite magnet motor assembly.
Subwoofer Type: Active
Enclosure Type: Sealed
Subwoofer Drivers: 1x 17" / 43.2 cm Composite
Magnet: 55 lb / Ferrite
Voice Coil: Dual 8" / 20.3 cm
Ports: No
Frequency Response: 15 to 320 Hz (±3 dB)
Amplifier Class: Class-D

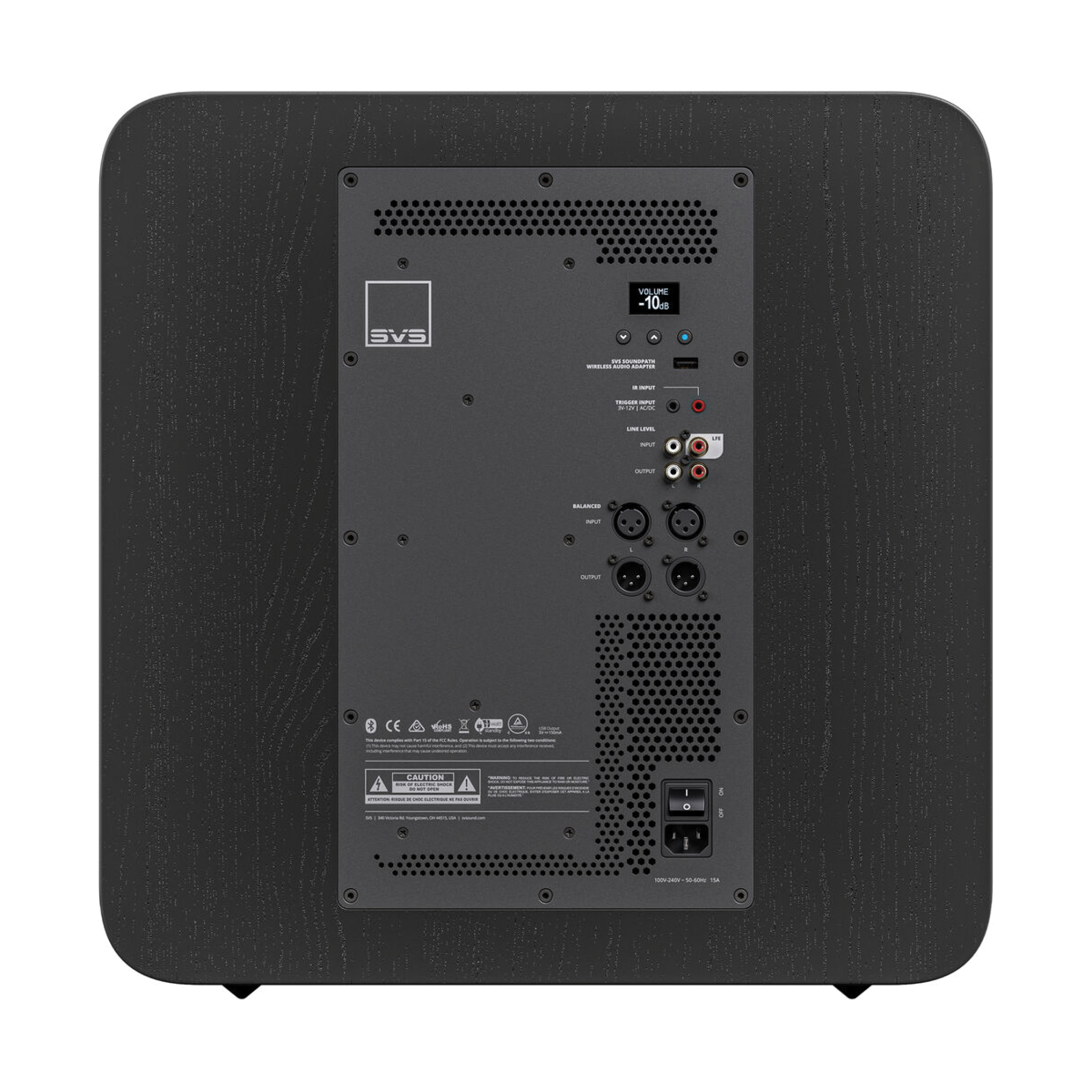

Inputs/Outputs:
• 1x RCA Input (LFE)
• 1x RCA Output
• 1x 1/8" / 3.5 mm Input (IR)
• 1x 1/8" / 3.5 mm Input (12 V Trigger)
• 1x USB-A Thru
SNR (Signal-to-Noise Ratio): 120 dB
Wireless Connectivity
Wireless Connection Protocols: Bluetooth
Power
Input Power: 100 to 240 VAC, 50 / 60 Hz at 15 A
Power Consumption: 0.5 W (Standby)
Physical
Color: Black Oak Woodgrain
Placement & Mounting Options: Floorstanding
Cabinet Material: MDF
Grille: Cloth
Cable Length: Power: 6' / 1.8 m
Dimensions:
• 19.5 x 20 x 21.1" / 495 x 507 x 537 mm (with Grille)
• 19.5 x 20 x 20.3" / 495 x 507 x 516 mm (without Grille)
Weight: 124.0 lb / 56.2 kg
