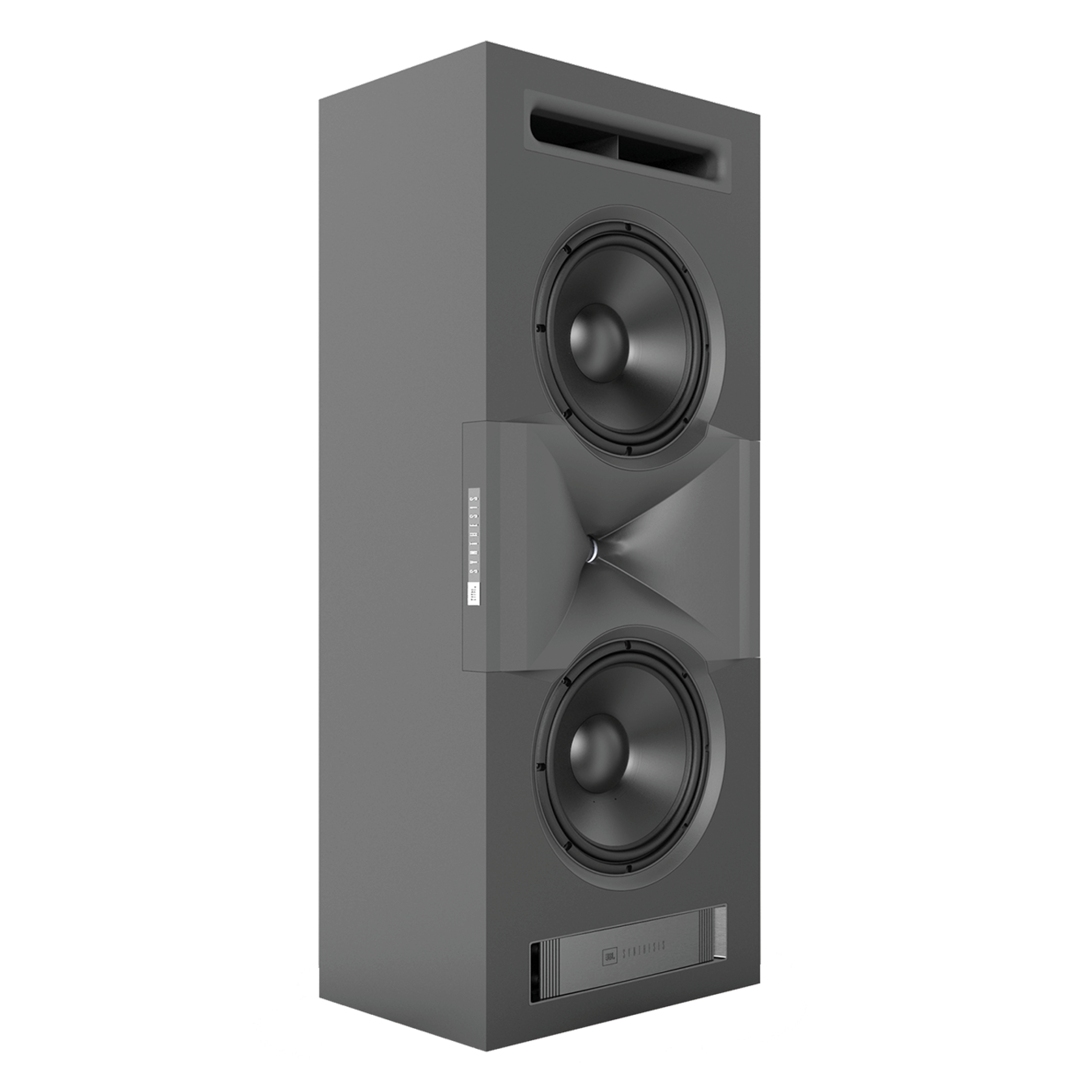

Type: 2-Way In-room loudspeaker
• Low Frequency Drivers: Dual 12-inch (300mm) Black Carbon Cellulose Composite Cone (C4)
cast-frame woofers
• High Frequency Driver: 3” (75mm) dual annular Teonex® ring-diaphragm compression
driver with dual neodymium motor structures mated to Sonoglass® HDI™ horn
• Recommended Amplifier Power (Full bandwidth): 500 WRMS, minimum
• Recommended Amplifier Power (80 Hz HPF): 500 WRMS, minimum
• Impedance: 4 Ohm
• Loudspeaker Sensitivity: 94 dB/1W/1m
• Frequency Response: 40 Hz - 24 kHz (-6 dB), 3rd order LF roll-off
• Crossover Frequency: 775 Hz
• Coverage area, -6 dB @ 10 kHz: Approximately 120 degrees horizontal x 100 degrees
vertical
• Coverage area, -6 dB @ 20 kHz: Approximately 90 degrees horizontal x 70 degrees vertical
• Enclosure Type: Complementary Bass Alignment System (CBAS™)
• HF Level Controls: 3 Position - No grille, With grille, or With screen
• Grille Dimensions: 47.98” H x 19” W x 0.787” D (1218.7mm x 482.6mm x 20mm)
• Product Dimensions: 47.98” H x 19” W x 14.49” D (1218.7mm x 482.6mm x 368.1mm)

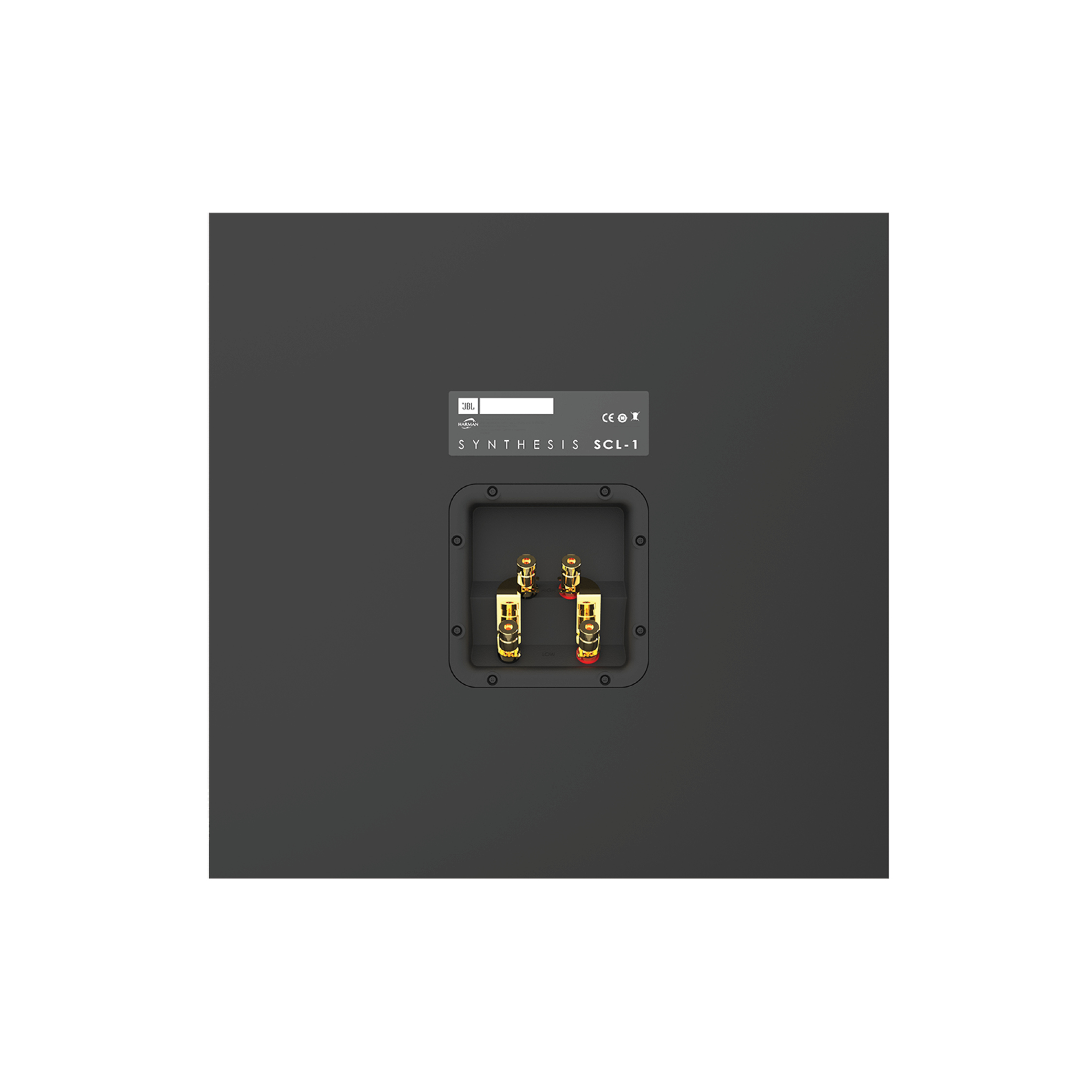

• Input Type: Dual sets of gold-plated spring-loaded binding posts
• Product Weight: 177.5 lb. (80.5kg)
• Shipping Weight: 306.5 lb. (139 kg)
