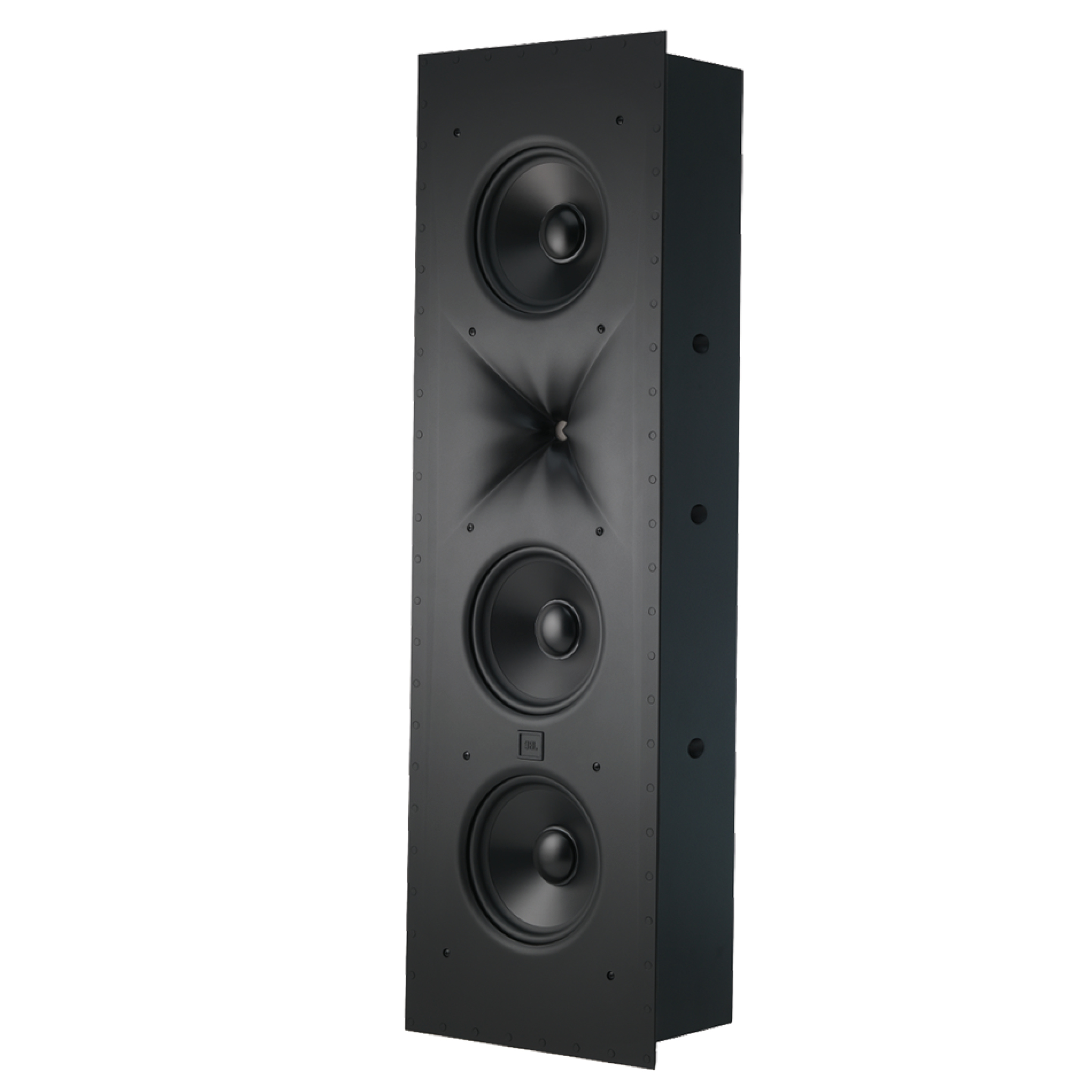

Speaker Type: 2-1/2-way Triple 8” In-wall Loudspeaker
• Low frequency transducer: Three 8” (200mm)cast-frame, Advanced Aluminum Matrix cone
woofers
• Mid/High frequency transducer: D2415K, 1.5” (38mm), dual annular ring Teonex® diaphragm
compression driver mounted to Sonoglass® horn/baffle
• Maximum recommended power: 450 watts RMS
• Frequency response (-6dB on-axis): 57Hz–25kHz
• Coverage area (-6dB@20kHz): 80 x 70 Degrees (Hor x Vert)
• Coverage area (-6dB@10kHz): 100 x 100 Degrees (Hor x Vert)
• Sensitivity (2.83V@1m): 92dB
• Nominal Impedance: 6 Ohm
• Crossover frequencies: 225Hz, 1.3kHz
• Enclosure type: Sealed in-wall mount with included back box
• Inputs: Dual gold-plated binding posts
• Finished grille dimensions (H x W): 40.2” x 12.8” (1020.8mm x 325.5mm)
• Cutout dimensions with backbox (H x W): 38.25” x 11.5” (971.6mm x 292.1mm)
• Mounting depth with backbox: 5.8” (147mm)
• Weight: 53.5 lb (24.3kg)
• Finishes: Matte Black with white paintable grille
