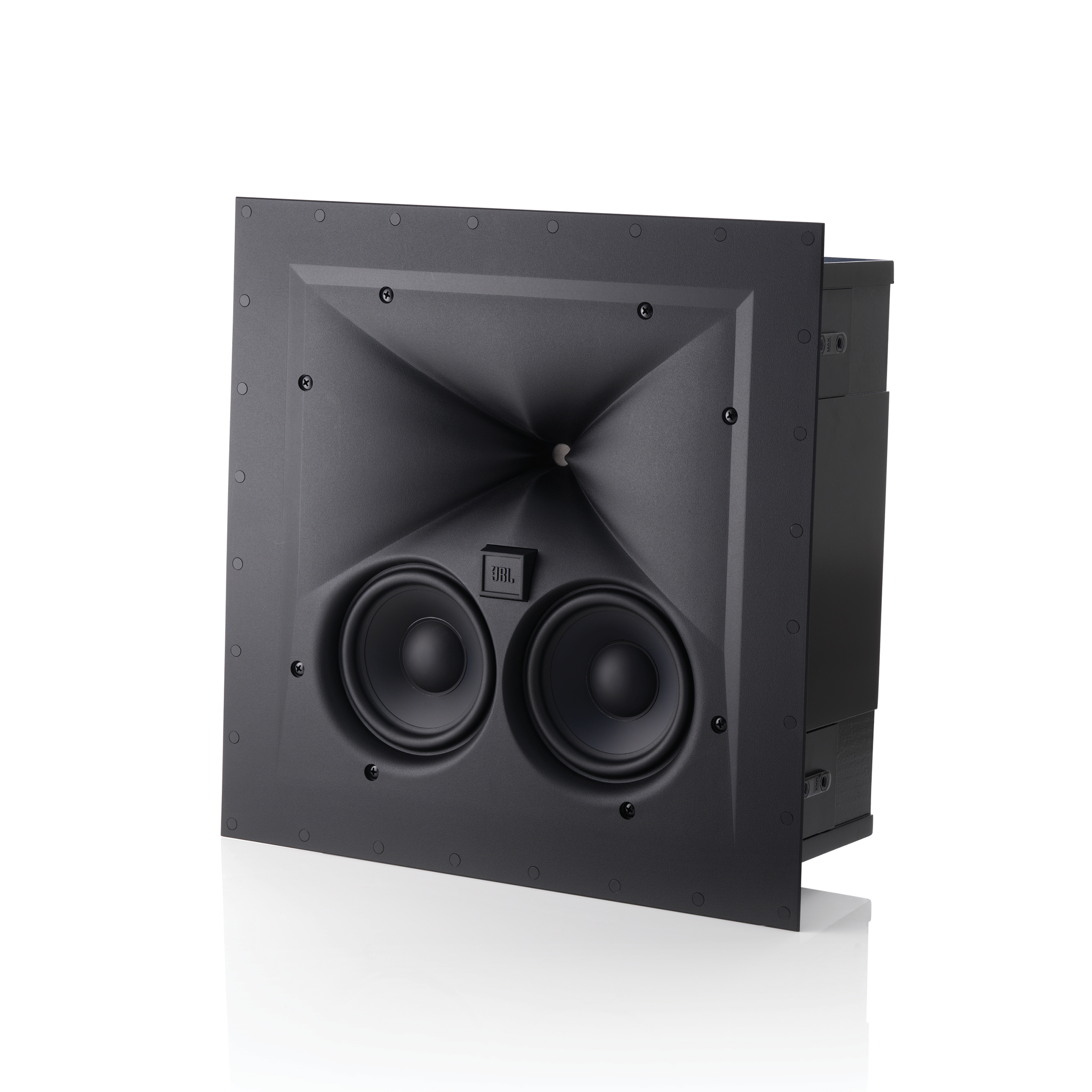

• Low Frequency Transducer: Dual 5-¼” (130mm) cast-frame, advanced aluminum matrix cone
woofers
• Mid/High Frequency Transducer: D2-derived 1” (25mm) 2409H annular ring, Teonex® diaphragm
compression driver
• Maximum Recommended Amplifier Power: 300 watts RMS•
• Frequency Response (-6dB on-axis): 65 Hz – 33KHz
• Coverage area (-6dB @ 20 KHz): 90 x 60 deg, (-6dB @ 10 KHz): 110 x 90 deg (Hor. x Vert.)
• Sensitivity (2.83V@1m): 91dB
• Nominal Impedance: 6 Ohm
• Crossover Frequencies: 1.3 KHz

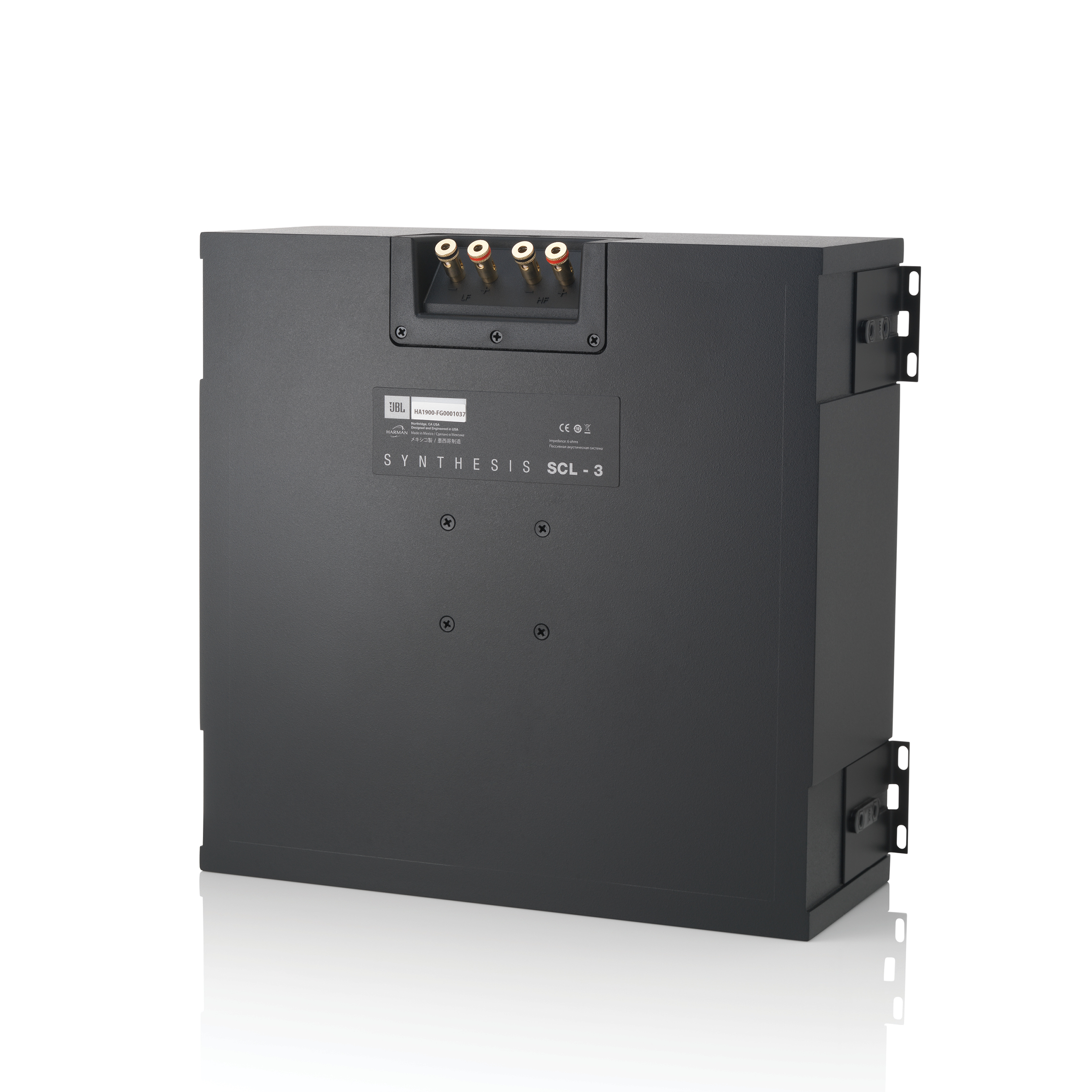

• Enclosure type: Sealed In-Wall Mount with included back box
• Inputs: Dual Gold-plated Five-way Binding Posts
• Dimensions (H x W x D): 16.5” x 16.5” x 6.01” (418mm x 418mm x 153mm)
• Weight: 24.3 lb (11.02 kg)
• Finishes: Matte Blac
