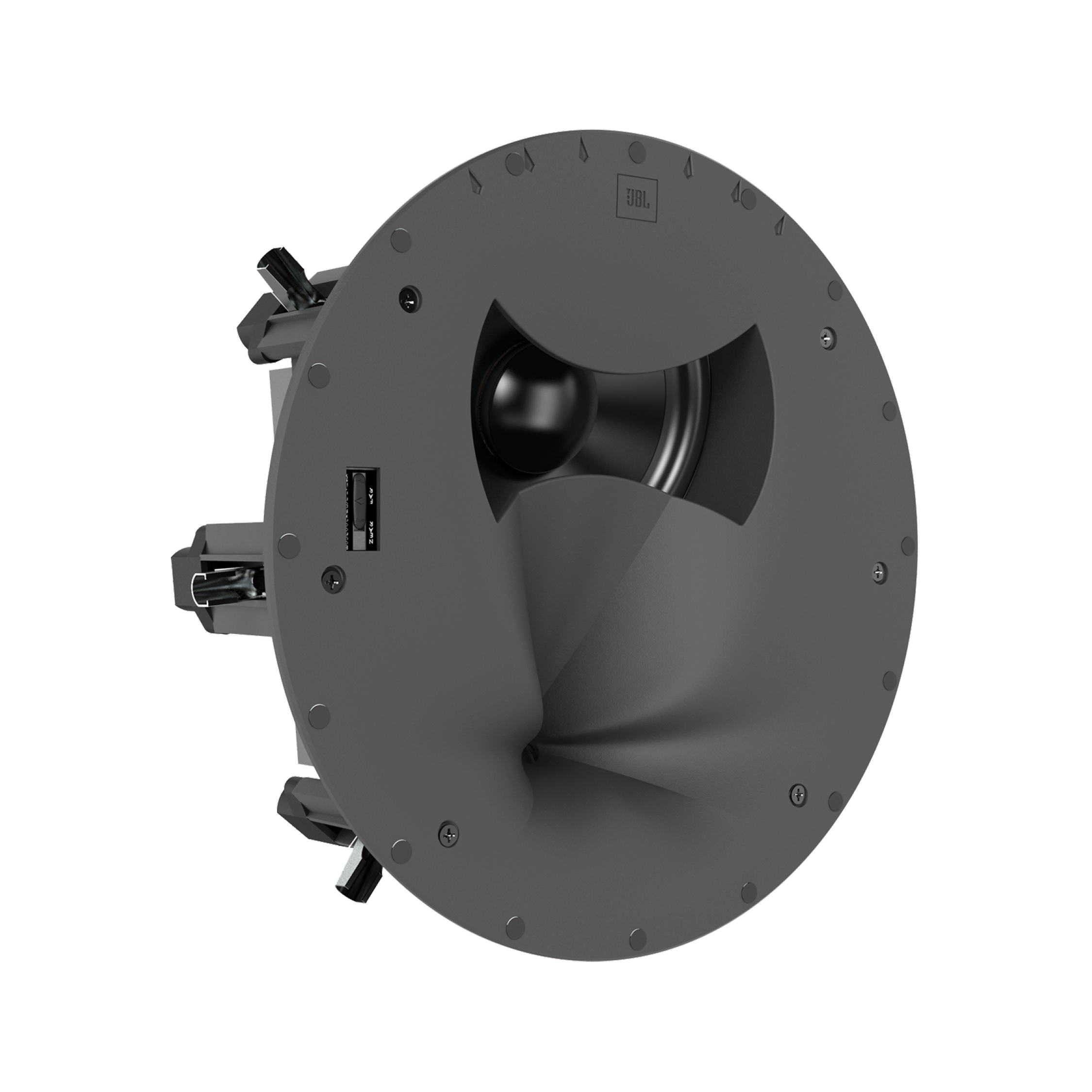

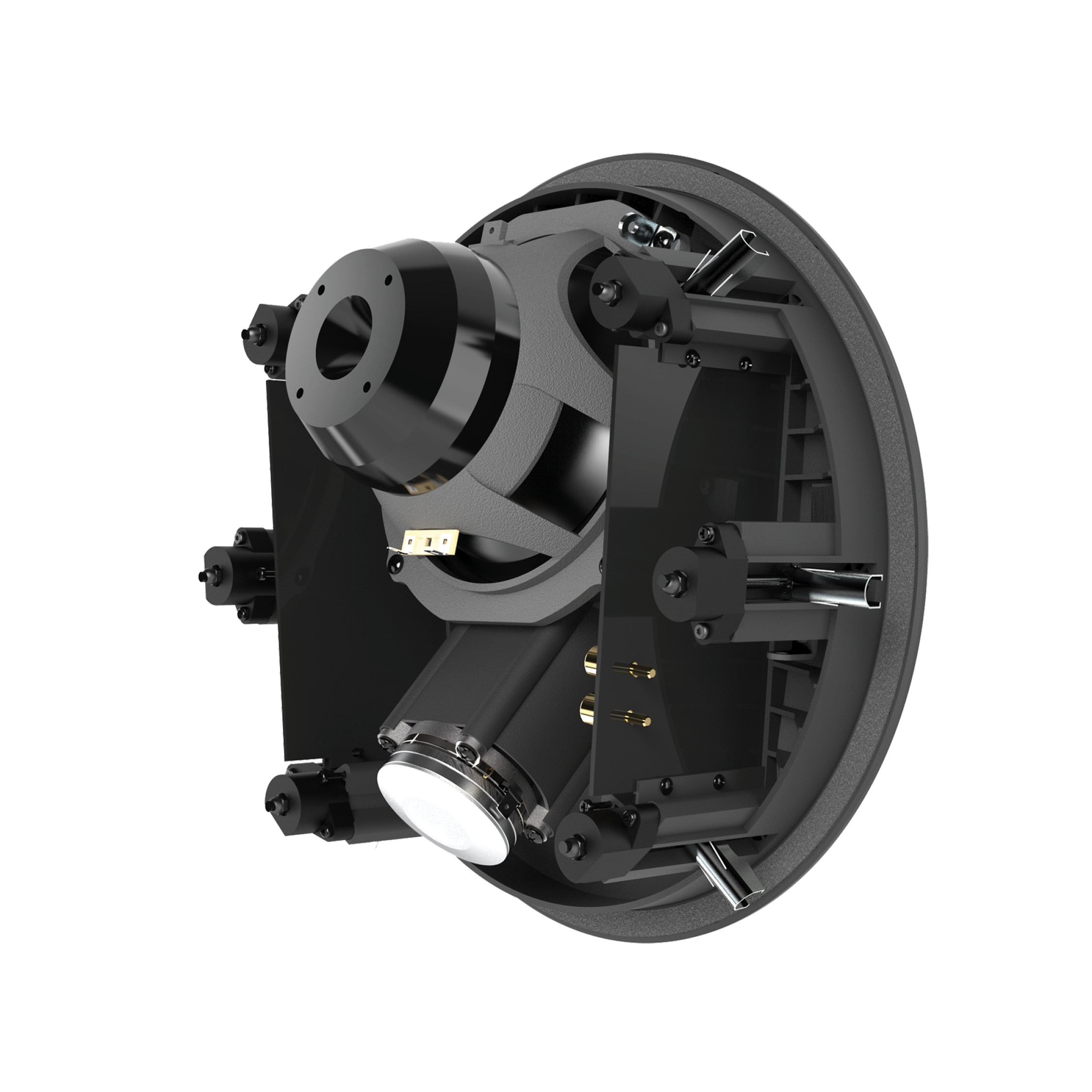

JBL Custom Speakers SCL-5
Type: 2-Way In-ceiling loudspeaker
• Low Frequency Driver: 7” (180 mm) advanced Aluminum Matrix cone cast-frame woofer
(JW180PB-6)
• High Frequency Driver: 1” (25 mm) 2409H Teonex® annular ring-diaphragm compression driver
• Recommended Amplifier Power: 25 – 125W RMS
• Impedance: 6 Ohm
• Loudspeaker Sensitivity: 86 dB/2.83V/1m
• Frequency Response: 48Hz - 32kHz (-6 dB on-axis), 2pi anechoic
• Crossover Frequency: 1575 Hz
• High Frequency Coverage Angle (-6 dB): 60° Vertical (Up: 30°, Down: 30°, from 45° Vertical
Center line), 120° Horizontal, from 2k Hz to 10k Hz.
• Enclosure Type: Open back
• Controls: Boundary Proximity Control

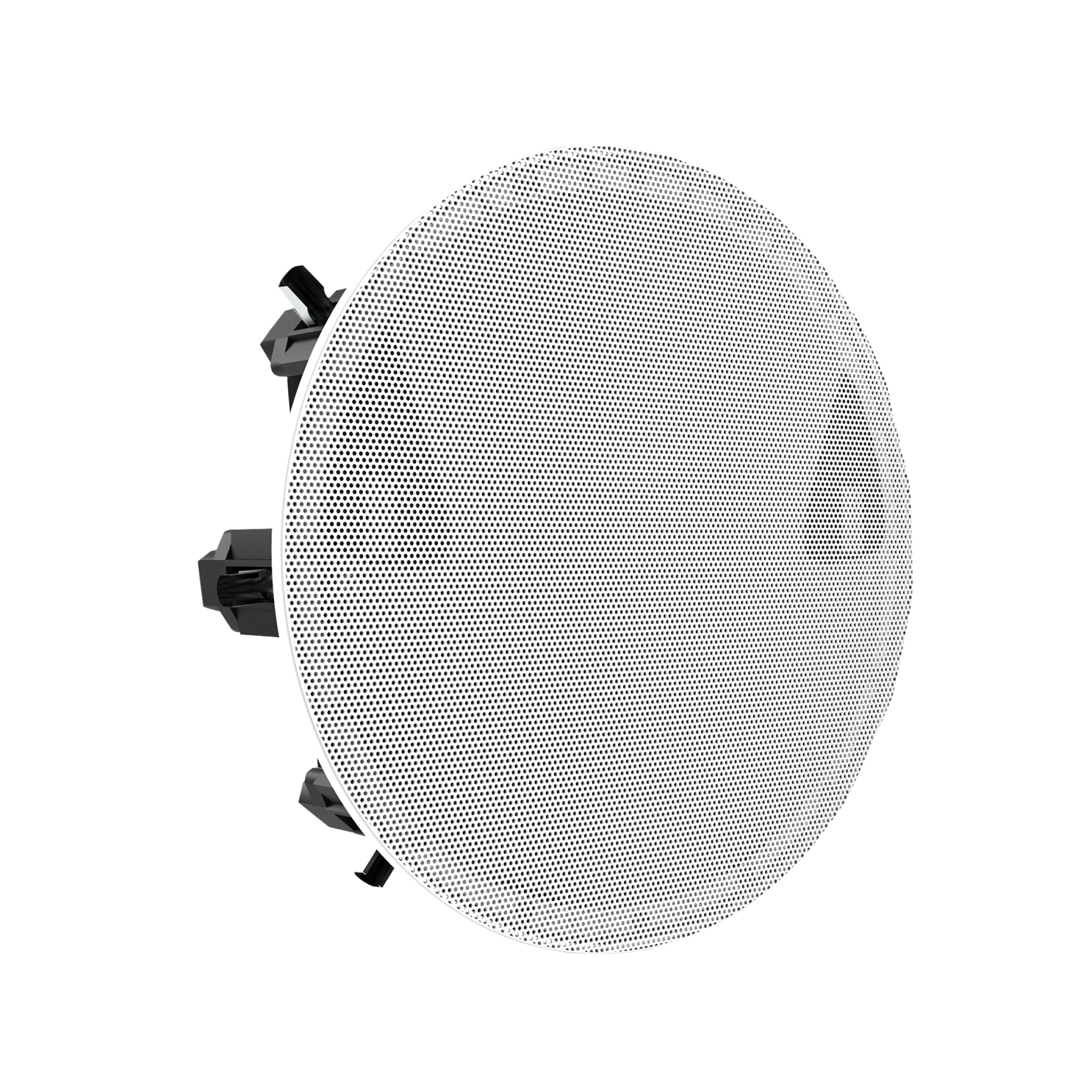

• Grille Dimensions: Round: 12.5” (318 mm) diam. Square: 12.5” (318 mm) x 12.5” (318 mm)
• Product Dimensions (grille): 12.5” H x 12.5” W x 5.98” D (318 mm x 318 mm x 151.9 mm)
• Cut-out Diameter: 11.3” (287 mm)
• Mounting Depth: 5.58” (141.8 mm)
• Input Type: Gold-plated spring-loaded binding posts
• Product Weight: 8.6 lb. (3.9 kg), 9.2 lb. (4.2 kg) with one grille
• Shipping Weight: 12.5 lb. (5.7 kg)
