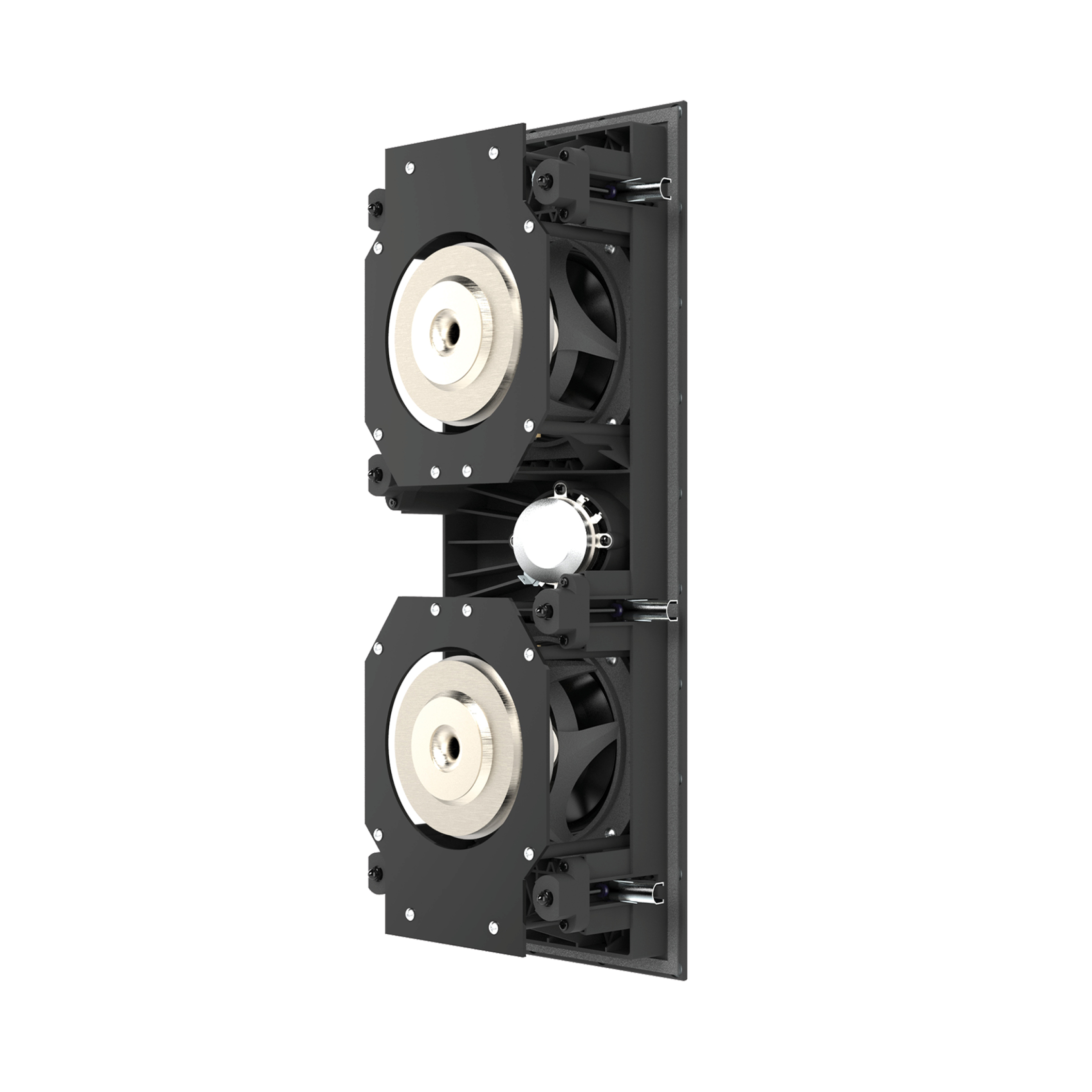

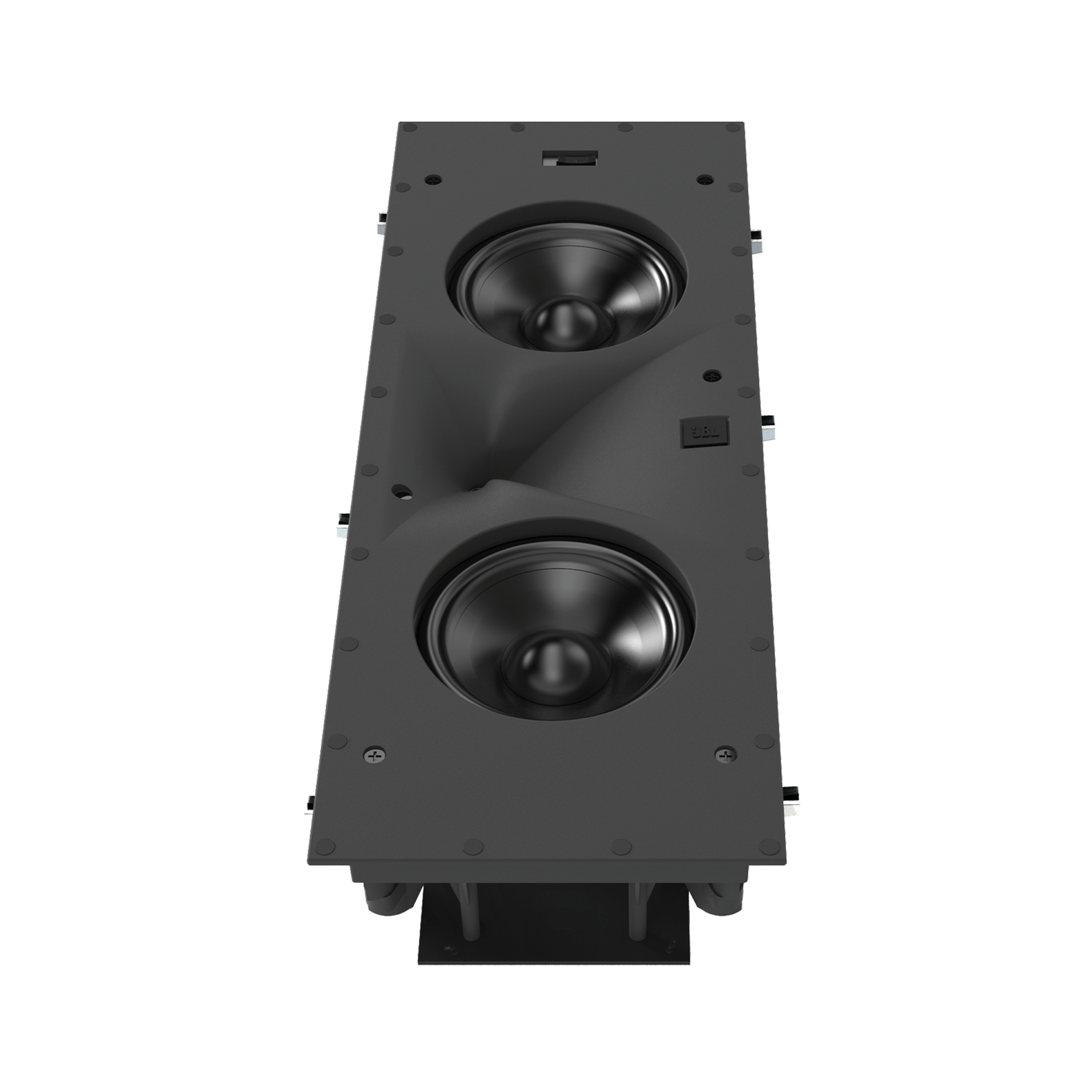

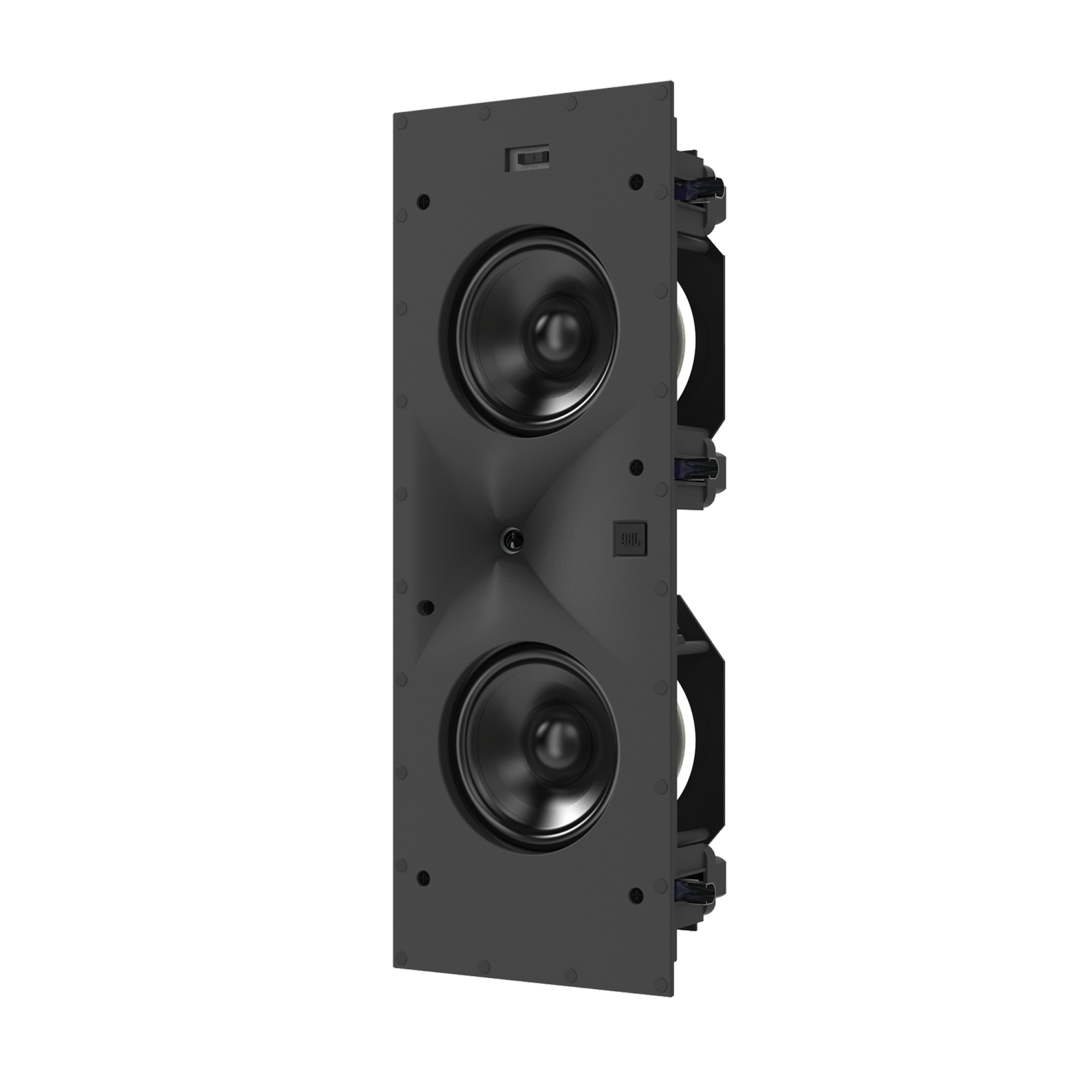

JBL Custom Speakers SCL-7
Type: 2-Way In-wall loudspeaker
• Low Frequency Driver: Two 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame
woofers (JW13Al-4)
• High Frequency Driver: 1” (25 mm) 2410H-2 Teonex® annular ring-diaphragm compression driver
• Recommended Amplifier Power: 25 – 150W RMS
• Impedance: 4 Ohm
• Loudspeaker Sensitivity: 88 dB/2.83V/1m
• Frequency Response: 55Hz - 30kHz (-6 dB on-axis), 2pi anechoic
• Crossover Frequency: 2.0 kHz
• High Frequency Coverage Angle (-6 dB): 60° Vertical, 90° Horizontal (Left: 30°, Right: 60°, from
center line), from 2 kHz to 15 kHz.
• Enclosure Type: Open back
• Controls: Boundary Proximity Control
• Grille Dimensions: 7.32” (186 mm) x 19.15” (486 mm)
• Product Dimensions (with grille): 7.32” (186 mm) x 19.15” (486 mm) x 3.88” (99 mm)
•Cut-out Dimensions: 5.94” (151 mm) x 17.80” (452 mm)
• Rough-in Bracket: WB52
• Mounting Depth: 3.64” (93 mm)
• Input Type Gold-plated spring-loaded binding posts
• Product Weight: 12.6 lbs (5.72 kg)
• Shipping Weight: 14.6 lbs (6.62 kg)
