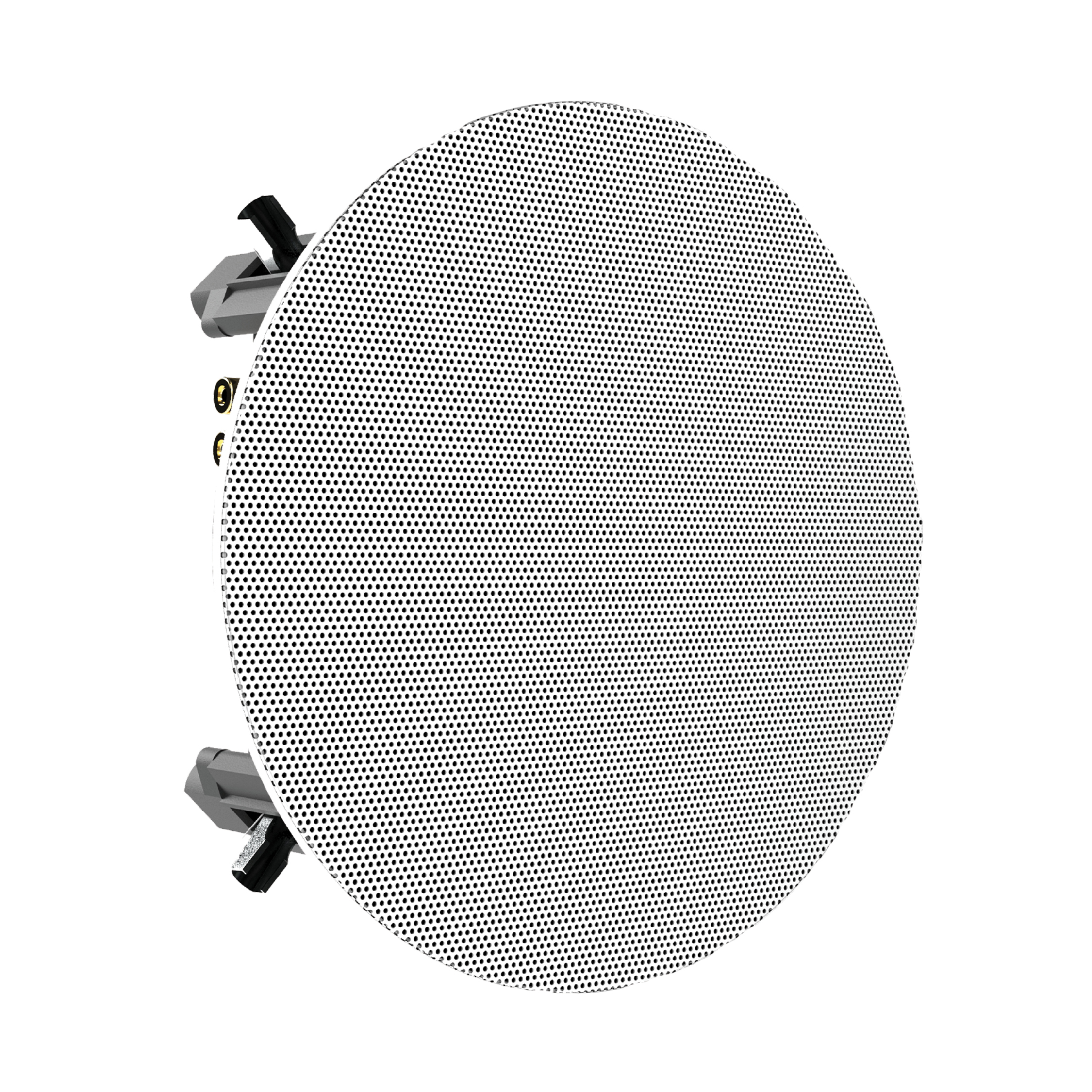

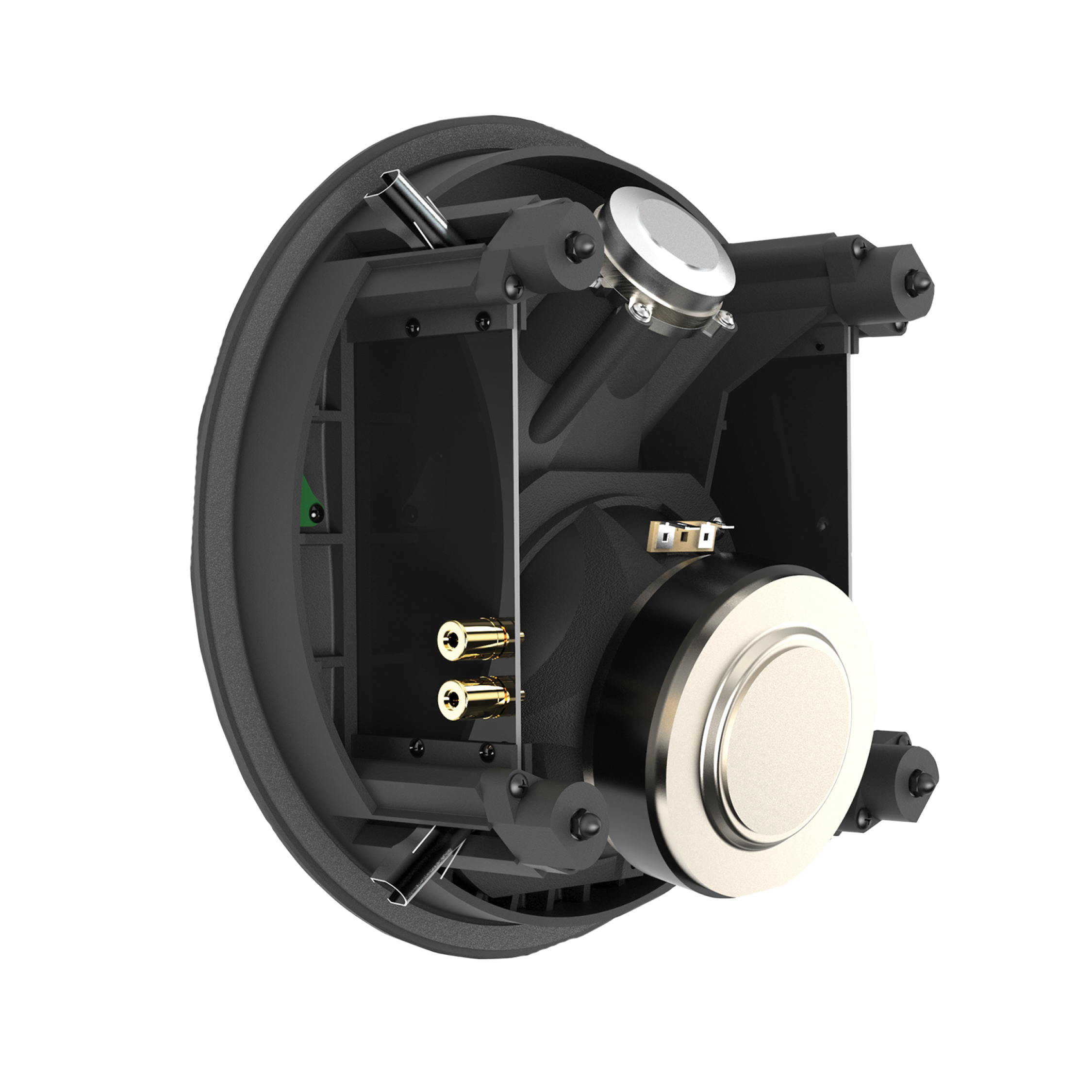

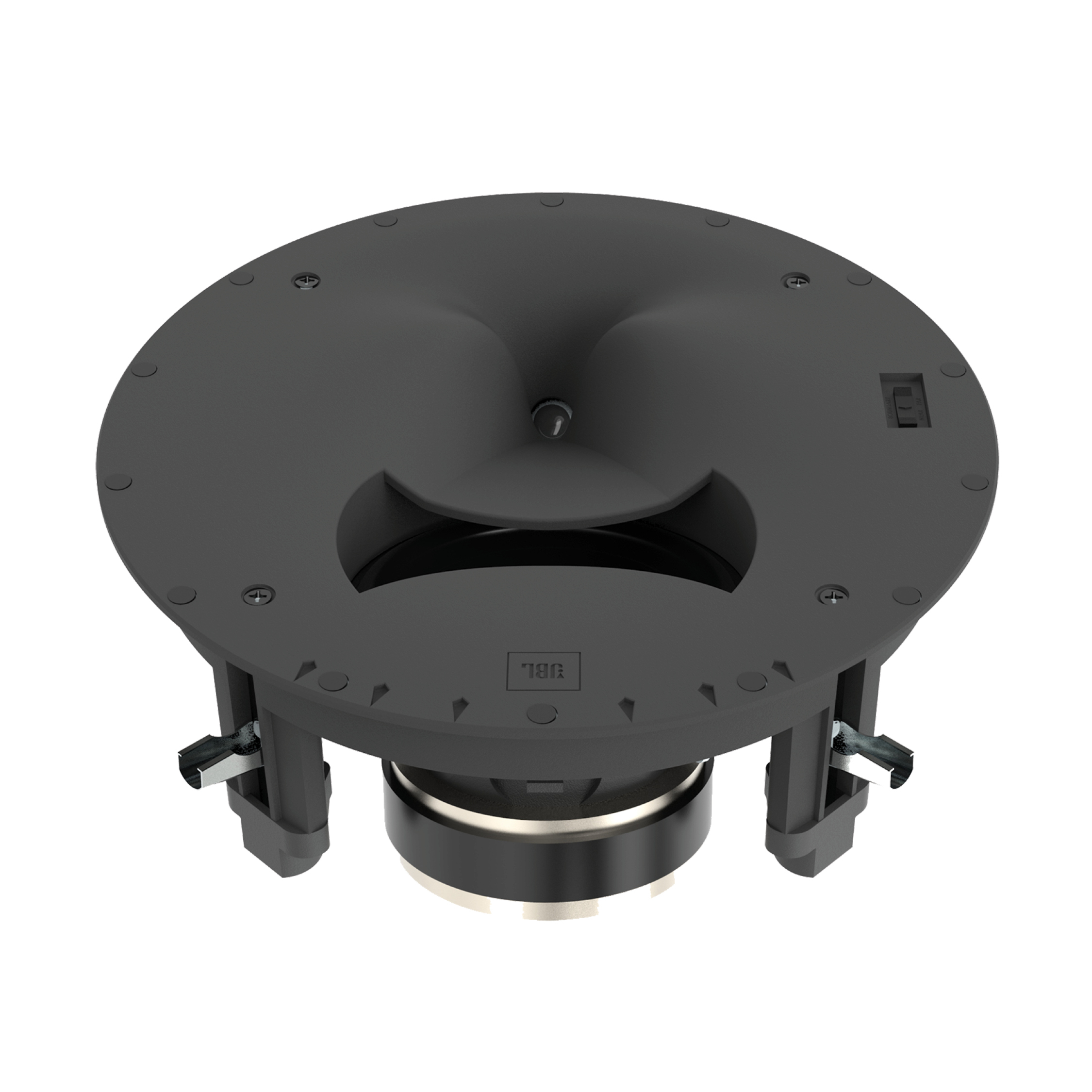

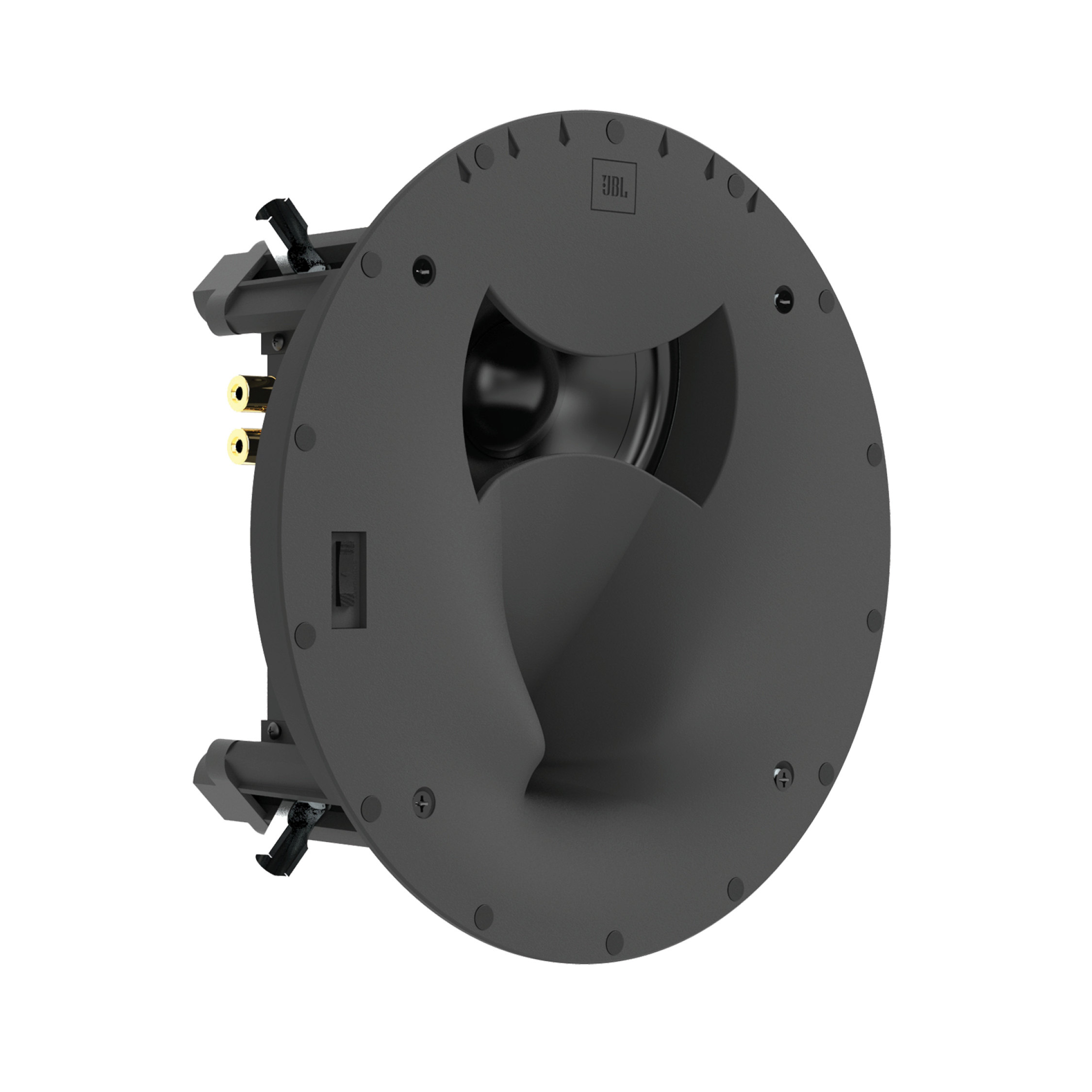

JBL Custom Speakers SCL-8
Type: 2-Way In-ceiling loudspeaker
• Low Frequency Driver: 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofer
(JW130Al-4)
• High Frequency Driver: 1” (25 mm) 2410H-2 Teonex® annular ring-diaphragm compression
driver
• Recommended Amplifier Power: 25 - 100 W RMS
• Impedance: 4 Ohm
• Loudspeaker Sensitivity: 85 dB/2.83V/1m
• Frequency Response: 55 Hz - 30 kHz (-6 dB on-axis), 2pi anechoic
• Crossover Frequency: 1.8 kHz
• High Frequency Coverage Angle (-6dB): 60° Vertical (Up: 30°, Down: 30°, from 45° Vertical
Center line),
• 120° Horizontal, from 2k Hz to 10k Hz.
• Enclosure Type: Open back
• Controls: Boundary Proximity Control
• Grille Dimensions: Round: 10.77” (273 mm) Diameter Square: 10.77” (273 mm) x 10.77” (273 mm)
• Product Dimensions (grille): 10.77” H x 10.77” W x 4.73” D (273 mm x 273 mm x 120 mm)
• Cut-out Diameter: 9.49” (241 mm)
• Accessory Rough-in Bracket: CB8
• Mounting Depth: 4.54” (115 mm)
• Input Type: Gold-plated spring-loaded binding posts
• Product Weight: 7.8 lb. (3.5 kg)
• Shipping Weight: 10.6 lb. (4.8 kg)
