JBL In-Wall Sub. SSW-4
Šifra: 19629
In-wall Subwoofer

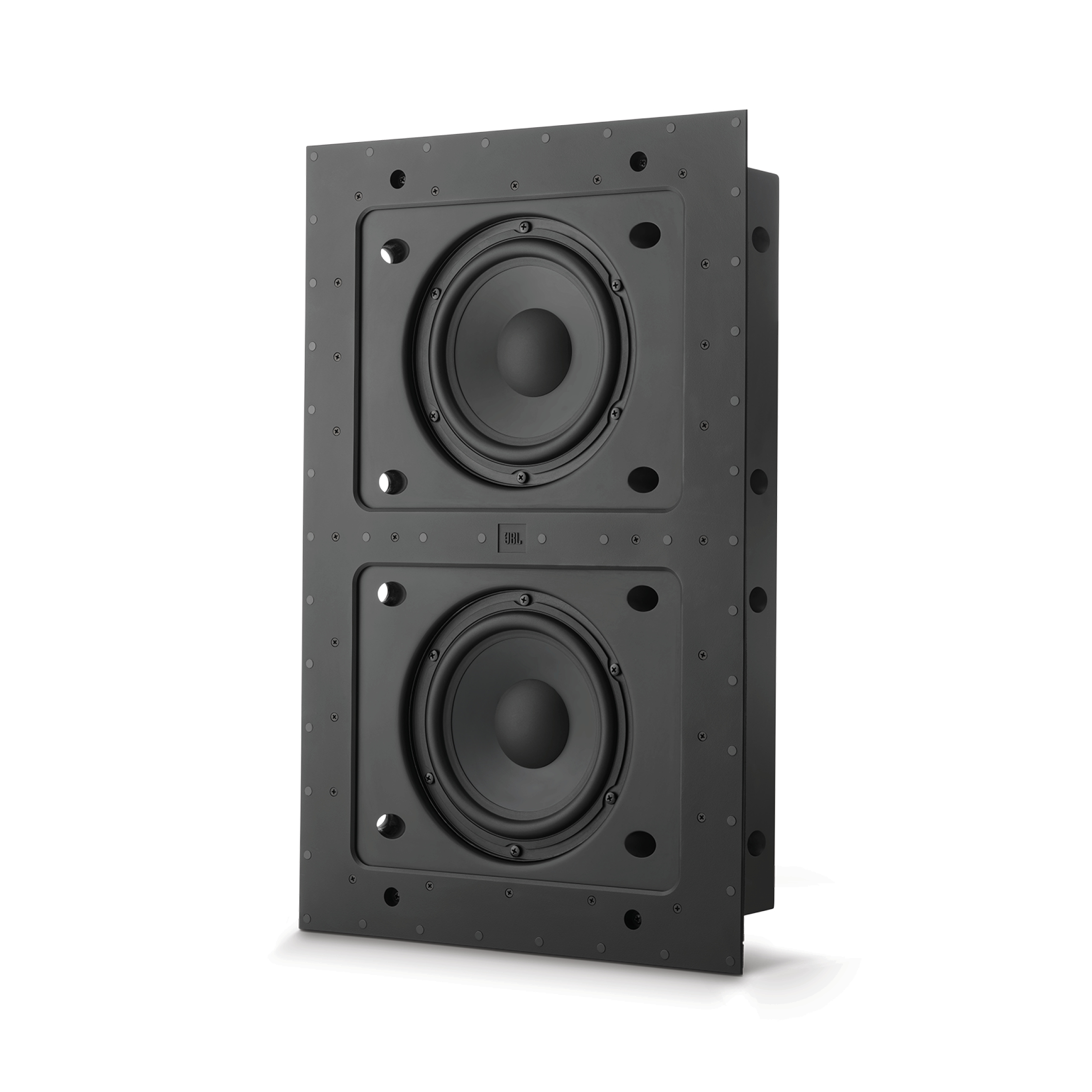

• Dual 8” (200mm) low-profile, long-throw, Klippel-optimized, metal cone woofers
• Front-firing drivers with sealed back box for superior acoustic tuning

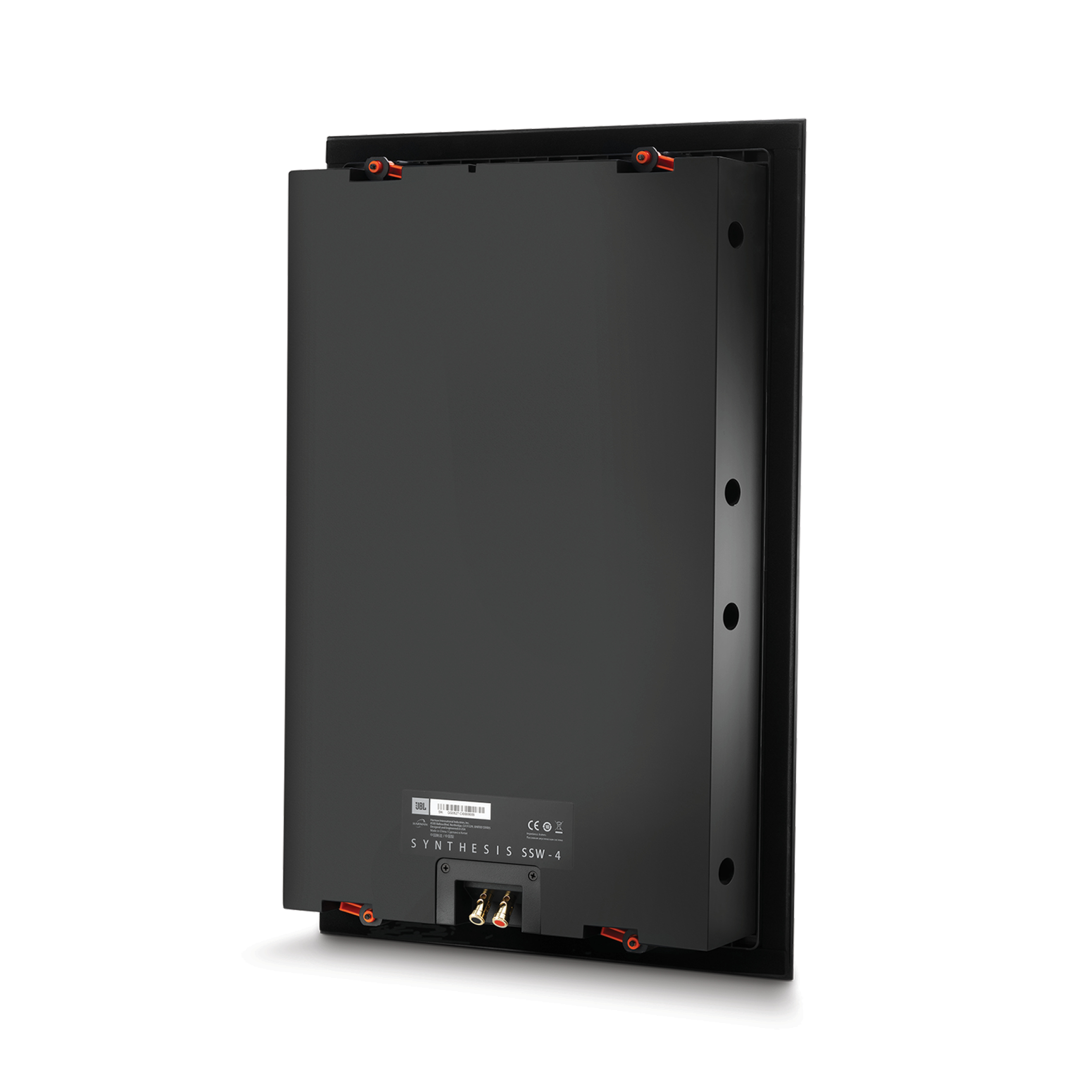

• Gold-plated speaker terminals

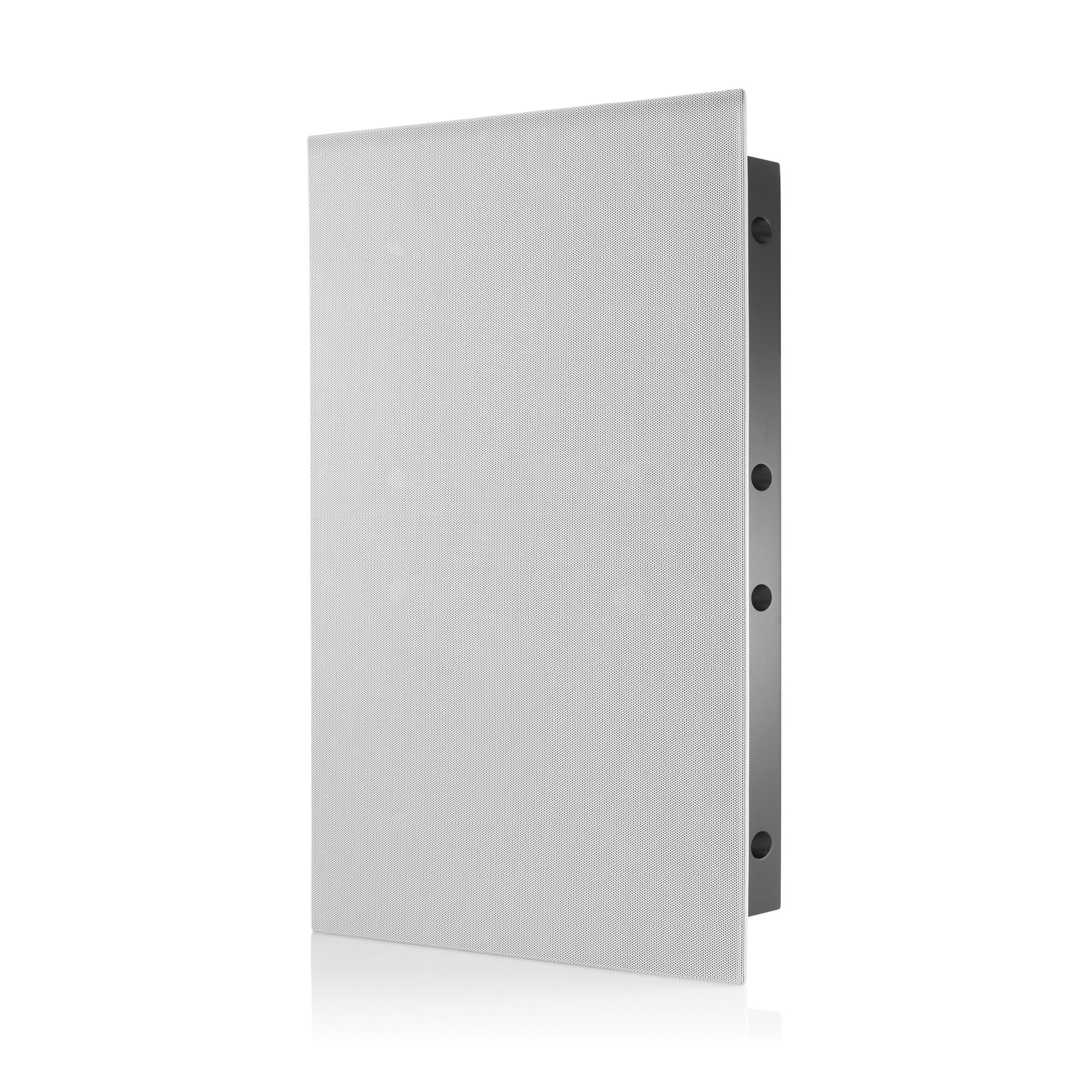

• Zero-bezel, magnetically-attached grille
• Mounting cutout size (H x W): 23-1/2” x 14-1/2” (596.9mm x 368mm)
• Sensitivity (2.83V/1m): Variable using the SA1000
• Nominal impedance: 8 ohms
• Required Amplifier: JBL Synthesis SDA-8300 (Connect up to eight SSW-4 Subwoofers with
each SDA-8300 Amplifier)
• Dimensions (H x W x D): 25-3/8” x 16-1/2” x 4” (645mm x 419mm x 102mm)
• Weight: 28.4 lb (12.9kg) per speaker
