Frequency Response / Acoustic Data:

    Frequency Response: 27Hz to 40kHz (+/-3 dB)
    Nominal Impedance: 6 ohms

    Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
    Recommended amplifier power: 20 – 300 watts

Speaker Specs:

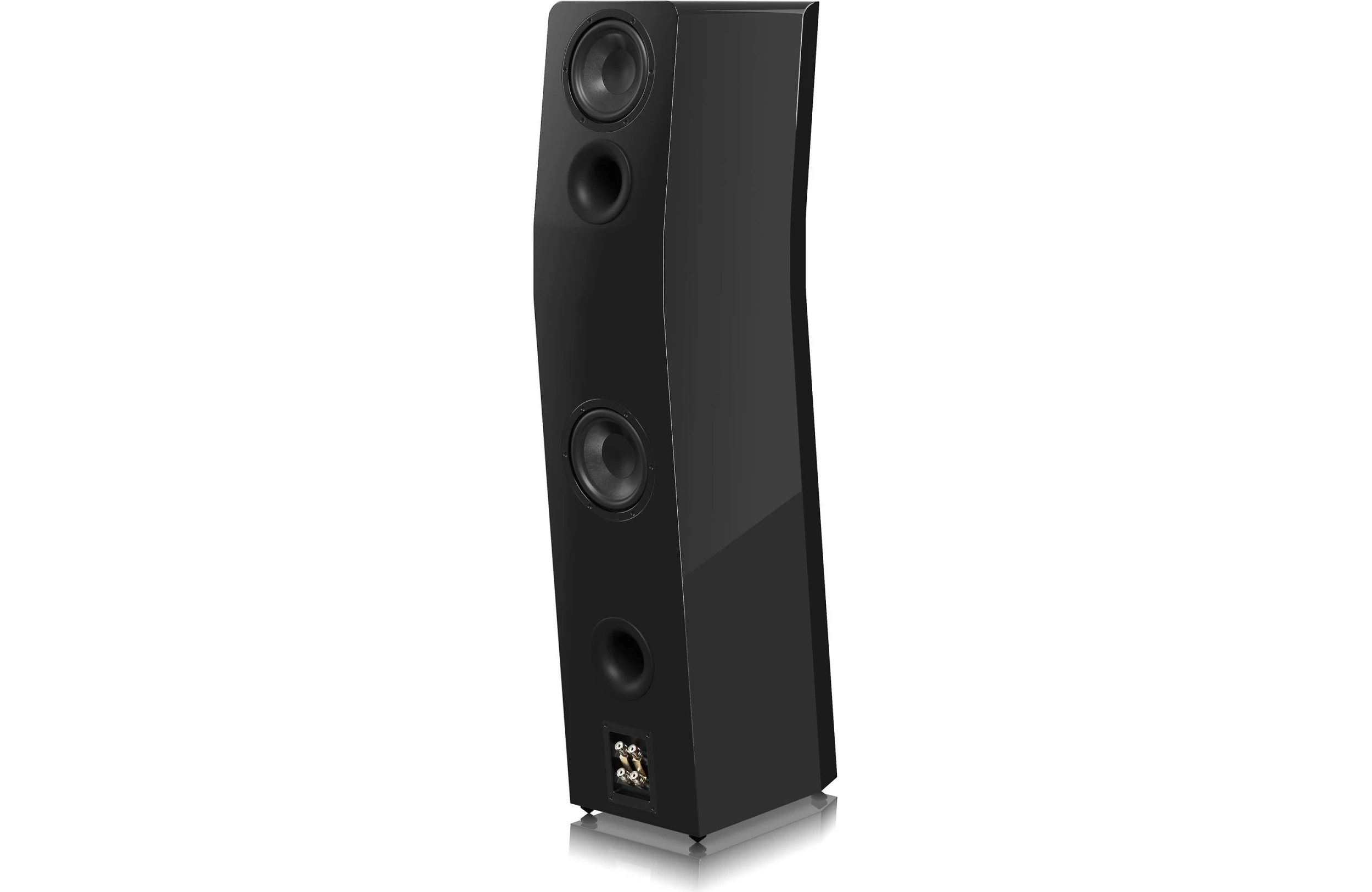

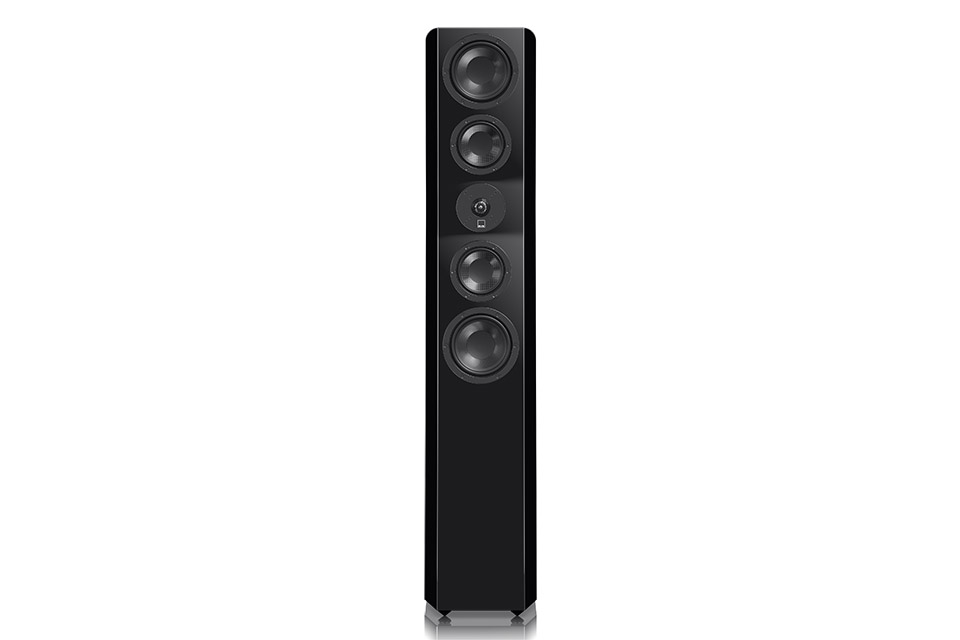

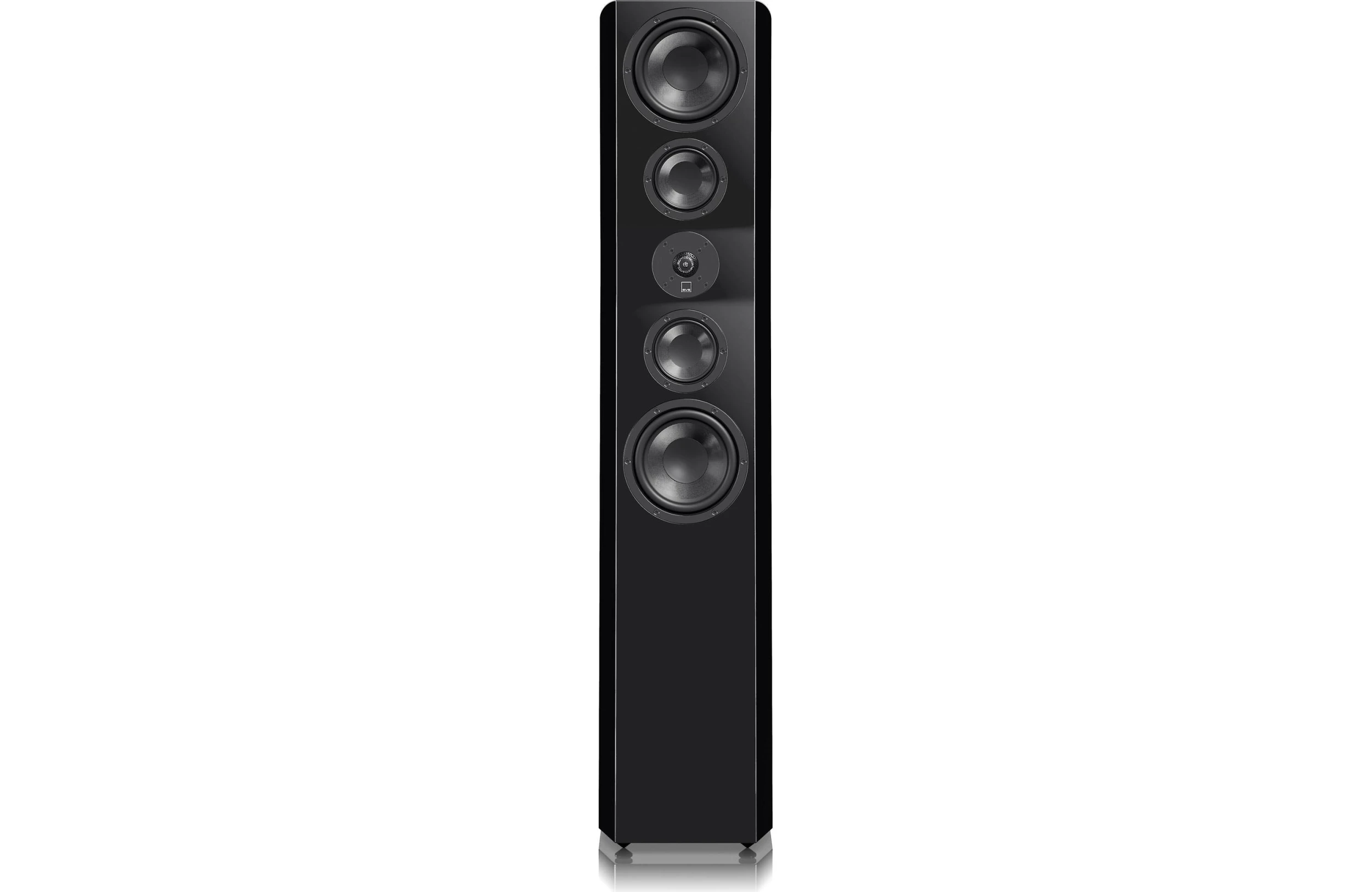

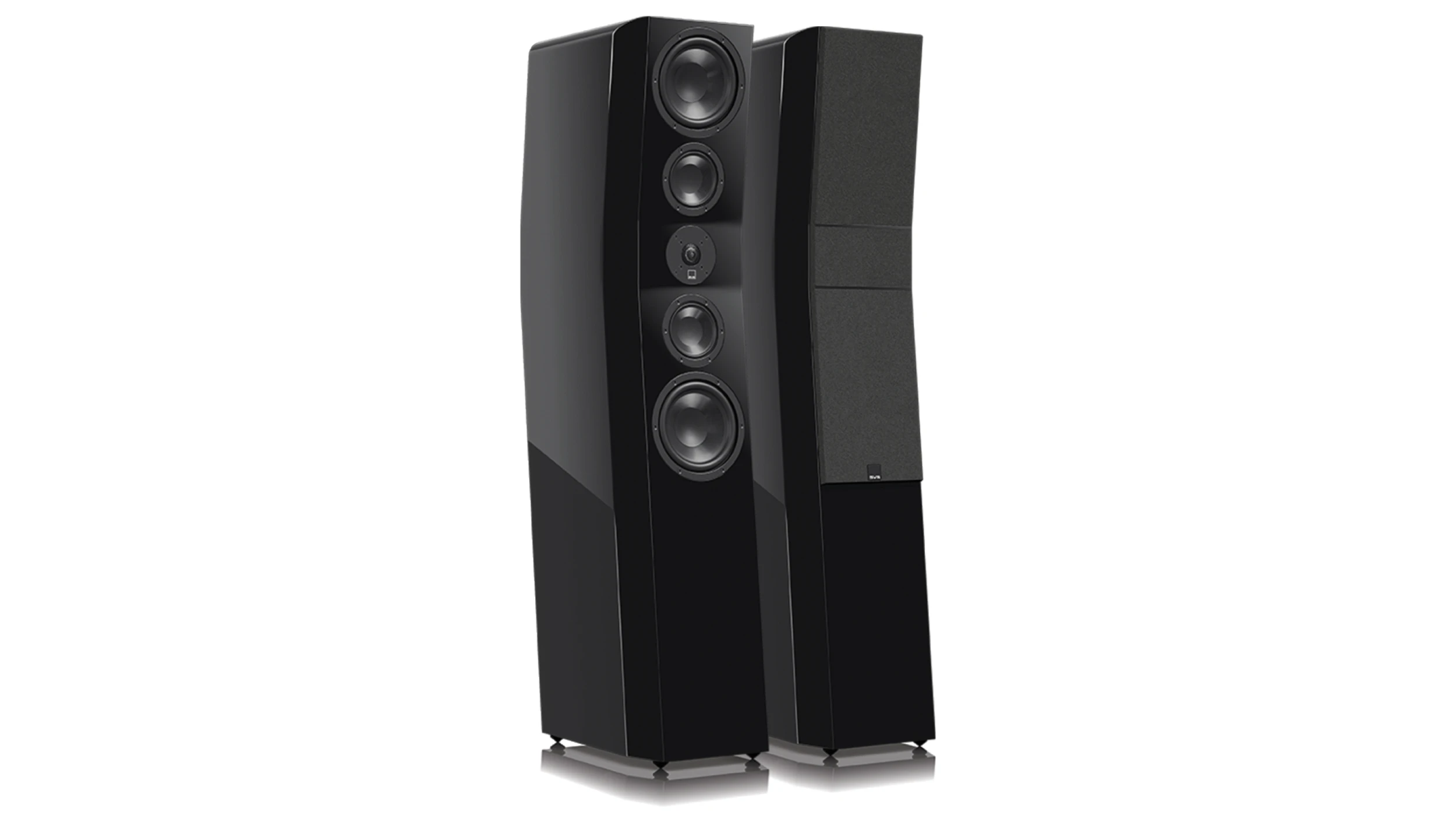

    Floor-standing Tower Loudspeaker
    Piano gloss black, piano gloss white, real black oak veneer finish options
    Dual gold-plated 5-way binding posts
    Dual 2.5” wide-flared rear-firing ports   

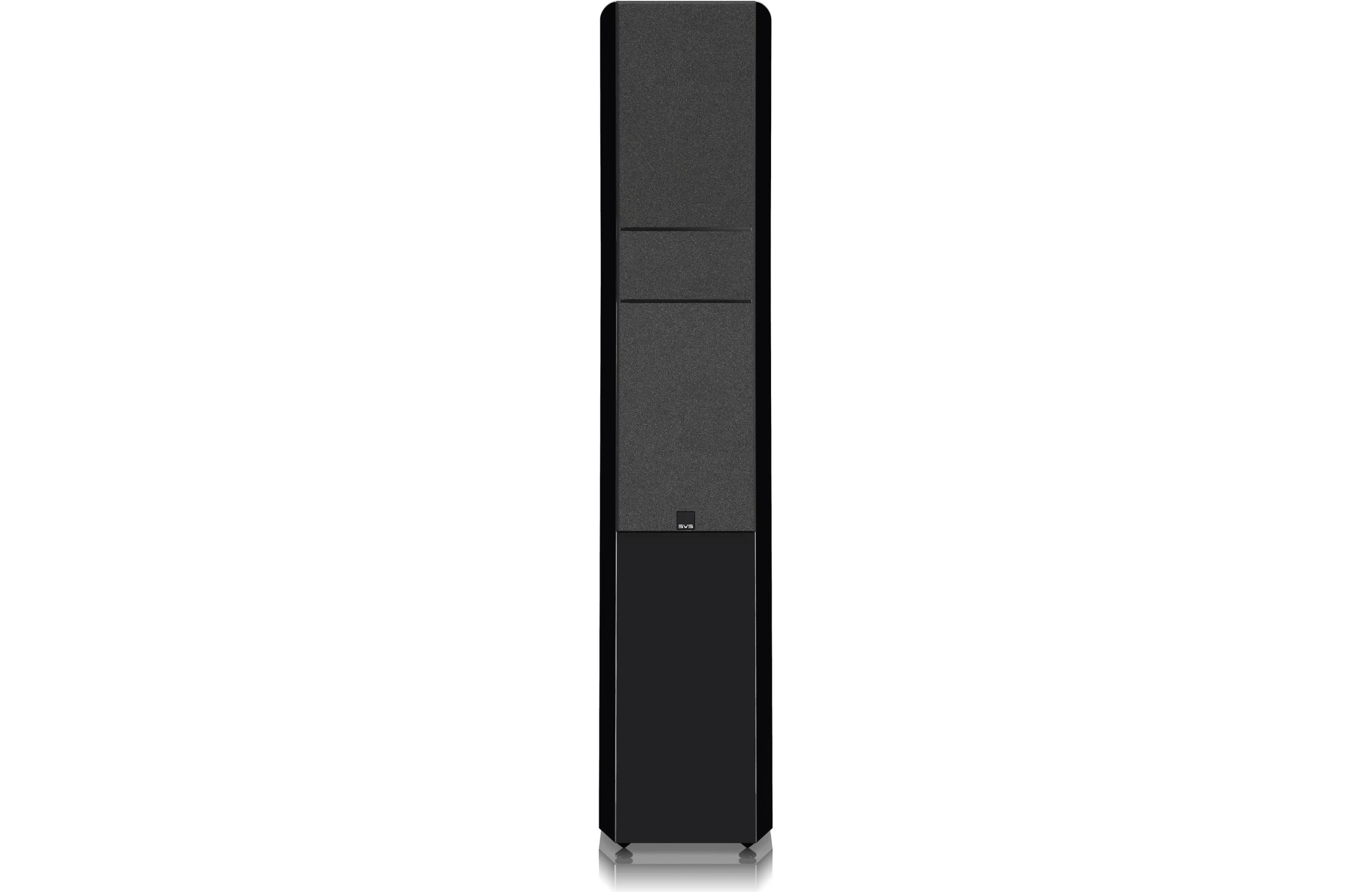

    Cloth grille with magnetic retention system
    Elastomer screw-in feet – adjustable for level

    Spiked metal screw-in feet included – adjustable for level
    Cabinet Dimensions: 46.54” (H) x 9.8” (W) x 17.3” (D) / 1182mm (H) x 249mm (W) x 439.3mm (D)
    Overall Dimensions: 47.13” (H) x 9.8” (W) x 17.3” (D) / 1197mm (H) x 249mm (W) x 439.3mm (D) (includes grille, feet, and binding posts)
    Weight Packaged: 80.5 pounds / 36.5 kgs
    Weight Unboxed: 69.7pounds / 31.6 kgs

Driver Specs:
1” Diamond Coated Tweeter

    FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
    Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
    Silver tinsel for optimal signal transfer and power handling.

4.5” Midrange Drivers

    Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
    Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
    Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.

6.5” Woofers:

    Long stroke motor and suspension for high output.
    Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
    Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
    Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover & Cabinet Specs:
Crossover:

    3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
    Tweeter-to-Midrange crossover: 1.9 kHz
    Midrange-to-woofer crossover: 160 Hz

Cabinet:

    Acoustically Centered Time Alignment architecture.
    Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
    Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective acoustic-center of each driver is equidistant from the listener.   The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
    Quad 6.5” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
    Dual 4.5” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
    Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
    Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
    FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
