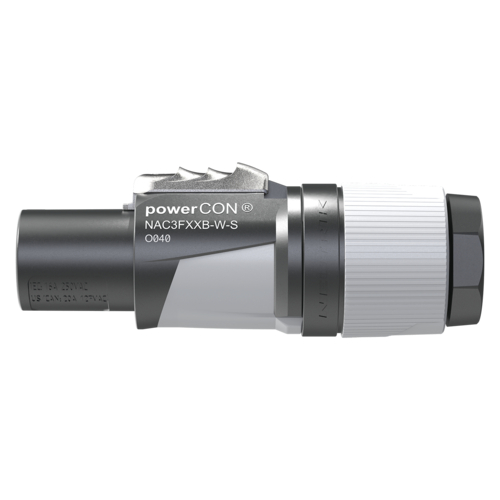

Neutrik NAC3FXXB-W-S-D powerCON
Šifra: 18147
Na stanju
900,00 rsd
750,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Cara Dušana 85, Niš
- Ugrinovački Put 10n, Zemun
- Svetogorska 9, Beograd
- Centralni magacin
Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 12 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
| Product | |
| Title | NAC3FXXB-W-S |
| Connector series | powerCON blue/grey |
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | > 3 kVac (after mating cycles) |
| Insulation resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC, CBC |
| Rating USA / Canada | cUL 60320-1: 20 A 127 V AC, CBC |
| Mechanical | |
| Cable O.D. | 6 - 12 mm |
| Lifetime | typically 5’000 mating cycles |
| Wiresize (mm²) | 1.5 – 2.5 mm² |
| Wiresize (AWG) | 16 – 12 AWG, see above cable list |
| Locking device | Twist lock |
| Termination | Screw type terminals |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
| Temperature range | -33 °C to + 80 °C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
