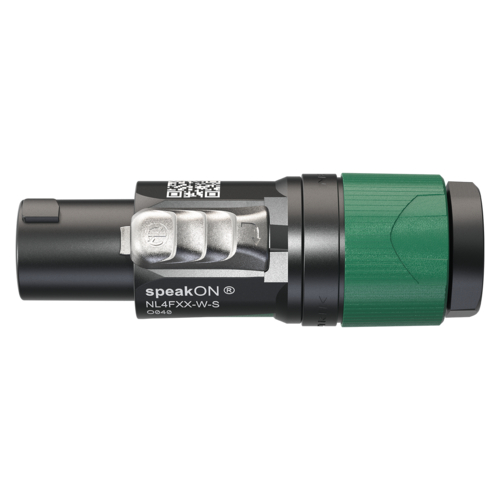

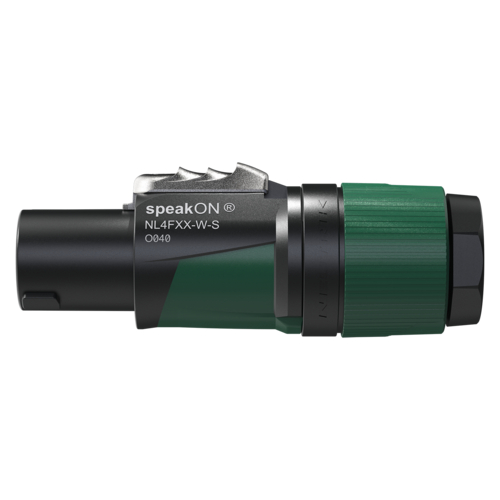

Neutrik NL4FXX-W-S
Šifra: 18148
Na stanju
720,00 rsd
600,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Cara Dušana 85, Niš
- Ugrinovački Put 10n, Zemun
- Svetogorska 9, Beograd
- Centralni magacin
4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm
| Product | |
| Title | NL4FXX-W-S |
| Connector series | speakON 4 pole |
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 4 |
| Rating Europe | IEC 61984: 37 A 250 V AC |
| Rating USA | UL1977: 35 A 250 V AC |
| Rating Canada | CSA C22.2 No.182.3: 24 A 250 V AC |
| ATTENTION: | This product is strictly not intended for use as an AC mains or power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT |
| Mechanical | |
| Cable O.D. | 6 – 12 mm |
| Lifetime | typically 5’000 mating cycles |
| Wiresize (mm²) | 1.5 – 4 mm² |
| Wiresize (AWG) | 17 – 11 AWG |
| Locking device | Twist lock |
| Termination | screw type terminals |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
| Temperature range | -33 °C to +80 °C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
