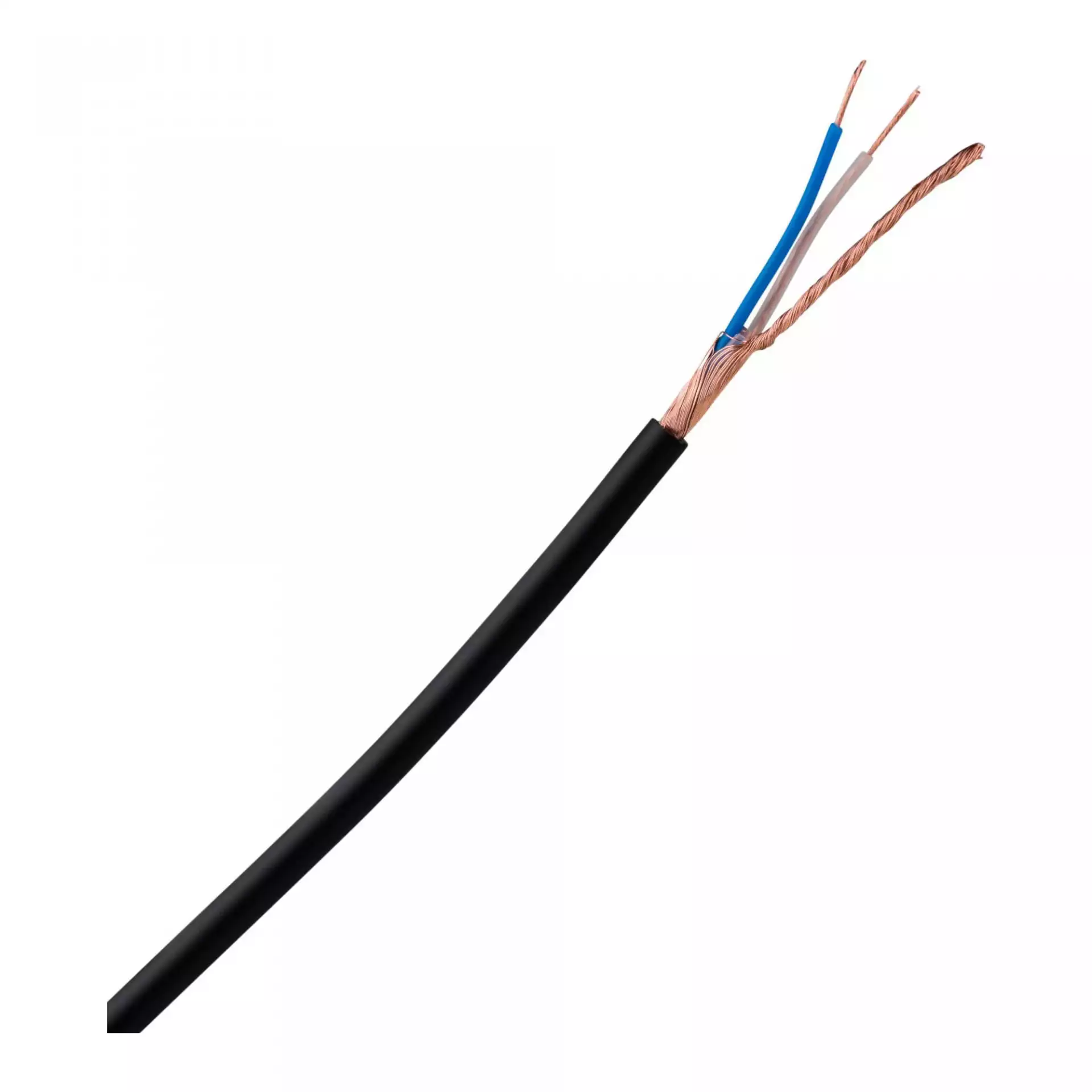

Mogami 2549 Microphone Cable
Šifra: 14385
468,00 rsd
390,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za metar.
Garantujemo najnižu cenu!

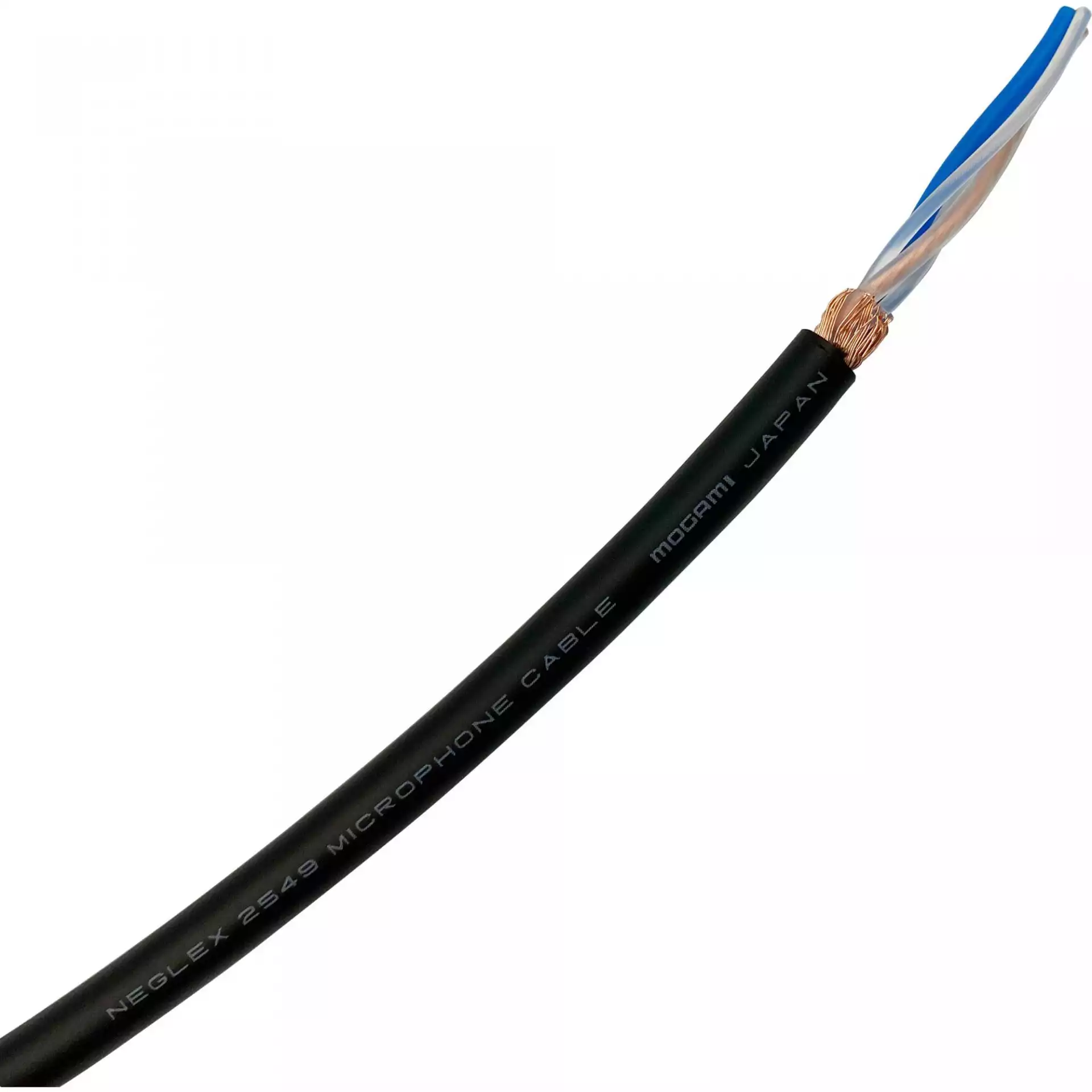

High Quality Balanced Microphone Cable
Neglex Type #22AWG Balanced Microphone Cable
W2549 has been designed using our famous Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.
| Part No. | W2549 |
| Conductor Size (mm²) | 0.339mm² (#22AWG) |
| O.D. (mm) | 6.0ø (0.236") |
| Flex Life | 14,500 cycles |
| Tensile Strength | 657 N |
| Colors | Black / Red / Yellow / Green / Blue |
105 Strand Broadcast Mic. Cable
Excellent for rugged remote and on stage use in Sound Reinforcement, TV, Radio broadcasting etc. Its compact size together with a heavy duty binder and filler system and a braided shield make it ideal for all continuous handling applications. Exhibits very low microphonic pick - up and can operate at very cold temperatures down to -20#176;C (-4#176;F) without losing its flexibility. 105 strands of 44AWG annealed bare copper features ultra flexibility with extraordinary flex life, while maintaining excellent strength characteristics.
Part No. W2791
| Part No. | W2791 |
| Conductor Size (mm²) | 0.206mm² (#24AWG) |
| O.D. (mm) | 5.5ø (0.217") |
| Flex Life | 131,000 cycles |
| Tensile Strength | 578 N |
| Colors | Black / Red / Yellow / Green / Blue |
| Braided Shield | Coverage: over 95% |
SPECIFICATIONS
| Configuration |  |
 |
|
| Part No. | W2549 | W2791 | |
| No. of Conductor | 2 | ||
| Conductor | Details | 30/0.12 OFC | 105/0.05 A |
| Size(mm²) | 0.339mm² (#22 AWG) | 0.206mm² (#24 AWG) | |
| Insulation | Ov. Dia.(mm) | 1.9Ø (0.075") | 1.5Ø (0.059") |
| Material | XLPE (Cross-Linked Polyethylene) | ||
| Colors | Blue / Clear | Red / Clear | |
| Shield | Served Approx. 64/0.18A | Braid 0.10A/9/16 | |
| Jacket | Ov. Dia.(mm) | 6.0Ø (0.236") | 5.5Ø (0.217") |
| Material | Flexible PVC | Flexible PVC | |
| Colors | Black / Red / Yellow / Green / Blue | Black / Red / Yellow / Green / Blue | |
| Roll Sizes | 50m (164 Ft) 100m (328Ft) 200m (656Ft) |
50m (164 Ft) 100m (328Ft) 200m (656Ft) |
|
| Weight per 200m Roll | 11kg | 9kg | |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | W2549 | W2791 | |
| DC Resistance at 20°C | Inner Cond. | 0.058Ω/m(0.018Ω/Ft) | 0.09Ω/m(0.027Ω/Ft) |
| Shield | 0.013Ω/m(0.004Ω/Ft) | 0.002Ω/m(0.006Ω/Ft) | |
| Capacitance at 1kHz, 20°C (Partial C. Value) See below figure* |
K0 | 76pF/m(23pF/Ft) | 86pF/m(26pF/Ft) |
| K1 | 11pF/m(3.4pF/Ft) | 10pF/m(3.1pF/Ft) | |
| Inductance between conductors at 1kHz. 20°C | 0.8µH/m(0.24µH/Ft) | 0.8µH/m(0.24µH/Ft) | |
| Electrostatic Noise** | 50mV Max. | 250mV Max. | |
| Electromagnetic Noise** | 0.15mV Max. | 0.15mV Max. | |
| Microphonics at 50KΩ Load** | 30m V Max. | 30m V Max. | |
| Voltage Breakdown | Must withstand at DC 125V/15sec. | ||
| Insulation Resistance | 100000 M Ω × m Min. at DC 125V, 20°C | ||
| Flex Life** | 14,500 cycles | 164,000 cycles | |
| Tensile Strength | 657N | 578N | |
| Emigration | Non-emigrant to ABS | Non-emigrant to ABS | |
| Applicable Temperature | -20°C‾ +70°C(-4°F‾ +158°F) | ||
| ** Using standard testing methods of Mogami Wire & Cable Corp. | * Partial Capacitance |
