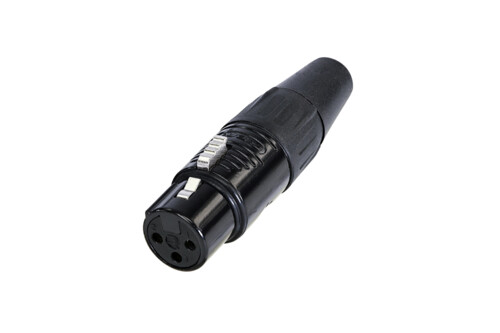

Rean RC3F
Šifra:
3 pole female XLR cable connector
Technical Information
Product
Title RC3F
Connection Type XLR
Gender female
Electrical
Insulation Resistance > 1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 10 A
Mechanical
Lifetime >1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Plastic Body PA6+30%GF UL94-HB
Jack Bronze
Ground Contact Steel
Rubber Ring Rubber
Button Zinc
Housing Zinc
Chuck POM
Push Ring POM
Bushing PA6+30%GF
Boot PVC
Jack Sliver Plating
Ground Contact Tin and Cer
Button Nickel Plating
Housing Nickel Plating
