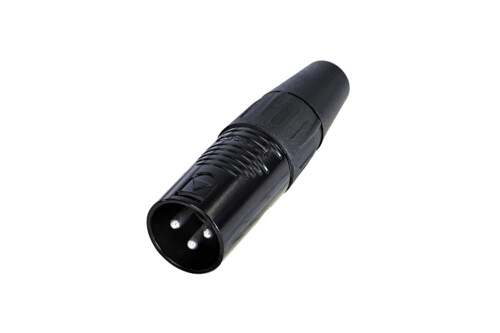

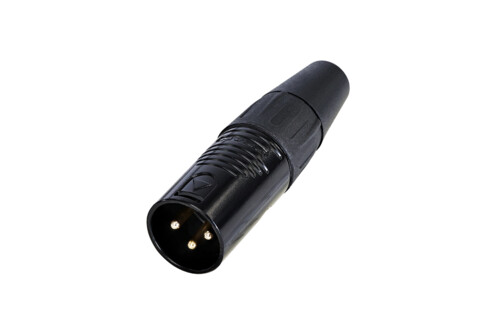

Rean RC3M
Šifra:
3 pole male XLR cable connector
Technical Information
Product
Title RC3M
Connection Type XLR
Gender male
Electrical
Insulation Resistance > 1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 10 A
Mechanical
Lifetime >1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Pin Brass
Male Insert PA6+30%GF UL94-HB
Ground Contact Bronze
Housing Zinc
Chuck POM
Push Ring POM
Bushing PA6+30%GF
Boot PVC
Pin Sliver Plating
Ground Contact Tin and Cer
Housing Nickel Plating
