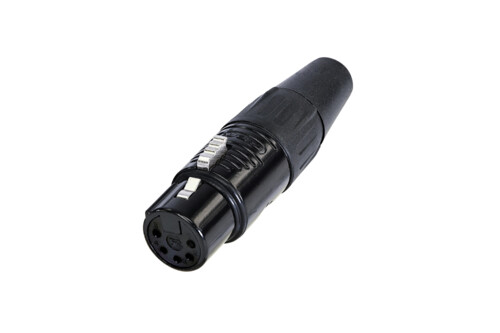

Rean RC5F
Šifra:
5 pole female XLR cable connector
Technical Information
Product
Title RC5F
Connection Type XLR
Gender female
Electrical
Contact Resistance ≤ 5 mΩ
Insulation Resistance > 1.5 GΩ
Mechanical
Lifetime >1,000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Plastic Body PA6+30%GF
Jack Brass
Ground Contact Steel
Rubber Ring Rubber
Button Zinc
Housing Zinc
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Jack Sliver Plating
Ground Contact Tin and Cer
Button Nickel Plating
Housing Nickel Plating
