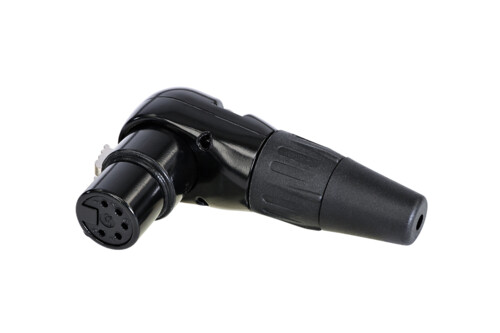

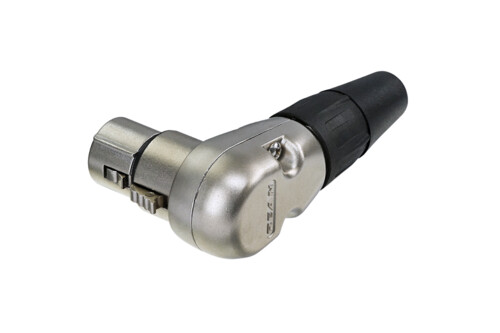

Rean RC5FR
Šifra:
5 pole female right-angle XLR cable connector
Technical Information
Product
Title RC5FR
Connection Type XLR
Gender female
Electrical
Insulation Resistance > 1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 7.5 A
Mechanical
Lifetime > 1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Jack Brass
Plastic Body PA6+30%GF
Ground Contact Steel
Housing Zinc
Button Zinc
Rubber Ring Rubber
Front Body Zinc
Push Tube PP
Cover Zinc
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Jack Sliver Plating
Ground Contact Tin and Cer
Housing Nickel Plating
Button Nickel Plating
Front Body Nickel Plating
Cover Nickel Plating
