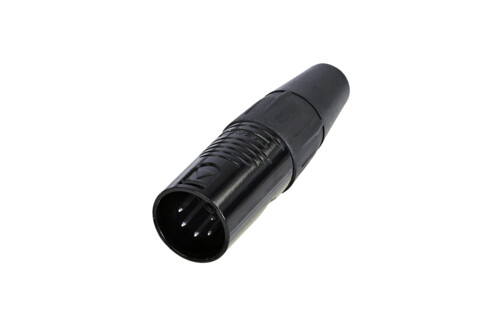

Rean RC5M
Šifra:
5 pole male XLR cable connector
Technical Information
Product
Title RC5M
Connection Type XLR
Gender male
Electrical
Insulation Resistance >1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 10 A
Mechanical
Lifetime >1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Housing Zinc
Pin Brass
Male Insert PA6+30%GF
Ground Contact Bronze
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Housing Nickel Plating
Pin Sliver Plating
Ground Contact Tin and Cer
