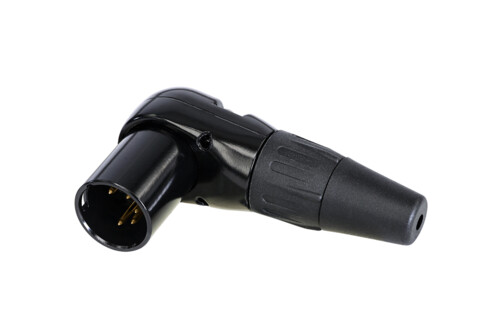

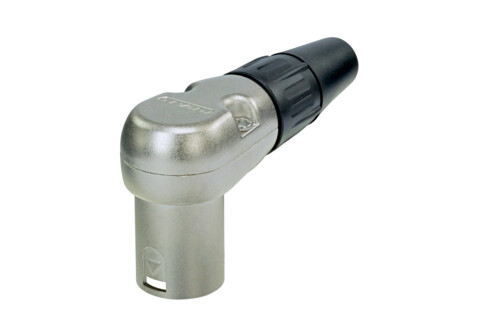

Rean RC5MR
Šifra:
5 pole male right-angle XLR cable connector
Technical Information
Product
Title RC5MR
Connection Type XLR
Gender male
Electrical
Insulation Resistance >1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Curren 7.5 A
Mechanical
Lifetime > 1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Pin Brass
Male Insert PA6+30%GF
Ground Contact Bronze
Housing Zinc
Front Body Zinc
Push Tube PP
Cover Zinc
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Pin Sliver Plating
Ground Contact Tin and Cer
Housing Nickel Plating
Front Body Nickel Plating
Cover Nickel Plating
