Rean RCJ10FI
Šifra:

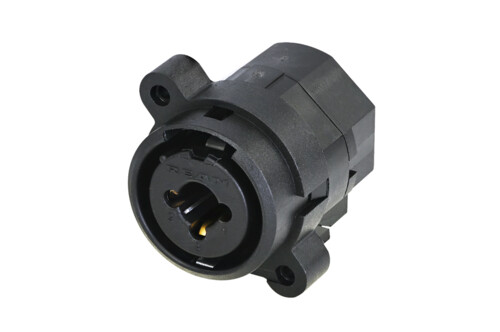

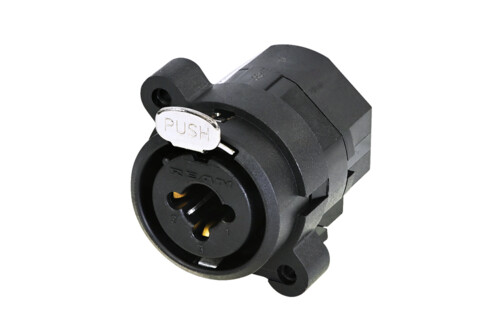

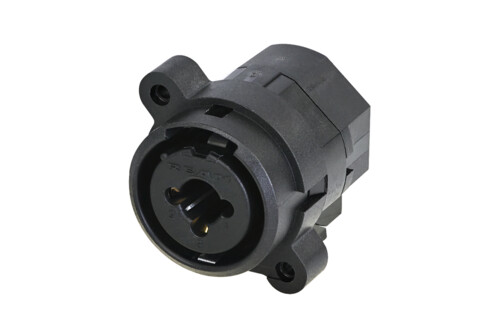

3 pole XLR female receptacle with 1/4" switching stereo jack and switching ground contact
Technical Information
Product
Title RCJ10FI
Connection Type XLR/Jacks Combo
Electrical
Contact Resistance ≤ 30 mΩ
Insulation Resistance ＞10GΩ (Initial)
Dielectric Strength 1.5 KVdc
Mechanical
Insertion and Withdrawal Force ≤40N(XLR)
≤30N（6.35mm Plug）
Lifetime >1,000 Mating Cycles
Material
Plastic Housing PA66+30%GF
End Cap PA66+30%GF
Push Spring Steel
Push Spring Bronze
Push Latch Steel
Contact Sliver Plating
Contact Ni+Sn+Au Plating
Push Latch Nickel Plating
Environmental
Temperature range -30 °C to +80 °C
Flammability UL94 HB
