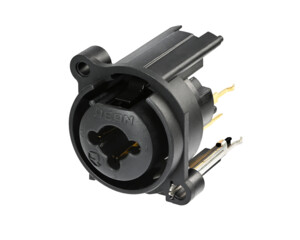

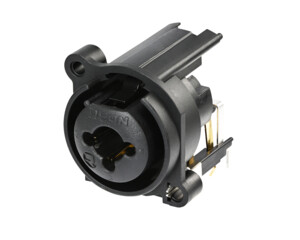

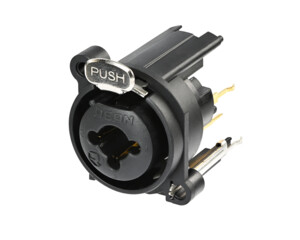

Rean RCJ6FA
3 pole XLR female receptacle with 1/4" stereo jack without switching contact
Technical Information
Product
Title RCJ6FA
Connection Type XLR/Jacks Combo
Electrical
Contact resistance - XLR ≤ 15 mΩ
Contact resistance - 1/4" Jack ≤ 25 mΩ
Dielectric strength 1500 V dc
Insulation resistance - inital ≥ 0.5 GΩ
Insulation resistance -after damp heat ≥ 0.2 GΩ
Rated current per Contact - XLR 3 A
Rated current per Contact - 1/4" Jack 3 A
Rated voltage 50 V ac
Mechanical
Lifetime > 1'000 mating cycles
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Panel thickness max. 3 mm (0.12")
Wiring PCB mount
Locking device Latch look
Mounting direction Rear mounting
Mounting screw Self-tapping Plastite® screw with thread 2.9 x 1.06 and tri-rondular configuration
Material
Shell PA 6.6 30% GR
Contacts CuSn6
Contact plating - XLR Au / Ag (G, TN, RN, SN)
Contact plating - 1/4" Jack Au (TRS)
Locking latch CK 65Mn steel
Environmental
Flammability UL 94 V0
Operating temperature -20°C to +70°C
Solderability complies with IEC68-2-20
Environmental complies with EU RoHS 2 and REACH
