Technical Information
Product

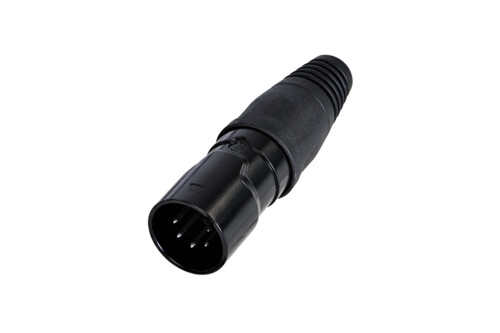

Title RCX5M-Z
Connection Type XLR
Gender Male
Electrical
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7.5 A
Rated voltage < 50 V
Mechanical
Cable O.D. 5.0 - 8.0 mm
Insertion force ≤ 60 N
Withdrawal force ≤ 60 N
Lifetime > 1000 cycles
Wiresize Max. 1.0 mm2
Wiresize Max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Bushing Polyamide
Contact plating Tin (-000 & - 001) / AU (-002)
Contacts Brass
Insert Polyamide (UL94-V0)
Locking element Zinc diecast
Shell Zinc diecast
Shell plating Chrome (-000) / Black (-001 & -002)
Strain relief Polyamide
Sealing jacket Rubber
