Rean RP2RCF
Šifra:

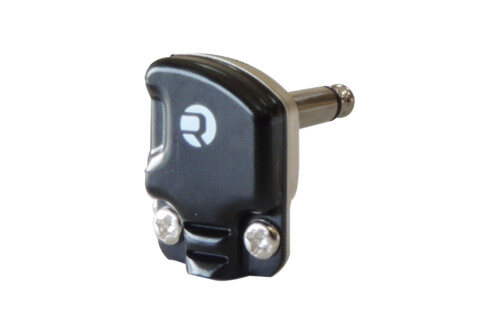

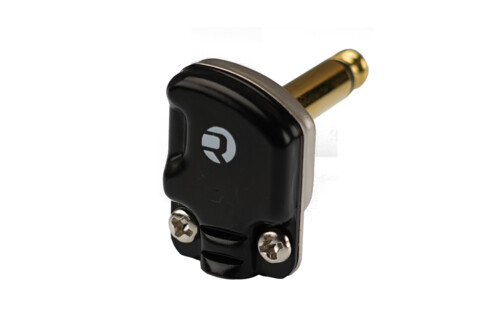

Mono 1/4" right-angle plug with pan head
Technical information
Product
Title RP2RCF
Connection Type Plug
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 0.5 kV dc
Insulation resistance > 1 GΩ
Mechanical
Lifetime > 1000 mating cycles
Insertion and Withdrawal force ≤ 60N
Cable O.D. 4 - 7 mm
Material
Sleeve & Inner Brass
Sleeve plating Nickel
Inner plating Nickel / Gold
Shell Steel
Shell plating Nickel / Black
Environmental
Temperature range -20 °C to +70 °C
Flammability UL 94 HB
Solderability complies with IEC68-2-20
