Technical Information
Product
Title RRE8F-Z
Connection Type Ethernet Receptacle
Gender Female
Electrical
Contact resistance ≤ 100 mΩ
Dielectric strength 1 kVdc
Frequency range 1 – 100 MHz
Insulation resistance > 5 GΩ (initial)
Rated current per contact 1.5 A
Rated voltage < 50 V
Transmission performance CAT 5E
Mechanical
Insertion force ≤ 60 N
Withdrawal force ≤ 60 N
Lifetime > 1000 mating cycles
Wiring Feedthrough
Locking device Latch lock
Mounting direction Front mounting
Chassis shape See drawing
Panel Cutout D
Material
Contact plating AU
Contacts Phosphor bronze
Insert Polyamide (UL94-V0)
Locking element Spring steel
Shell Zinc diecast

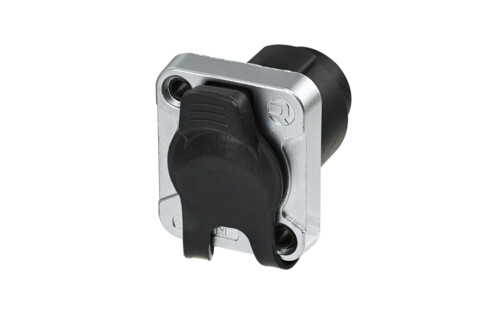

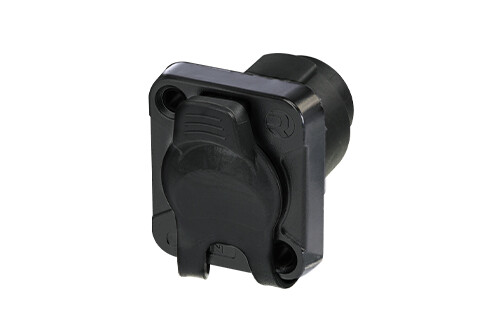

Shell Plating Chrome (-000) / Black (-001)
Environmental
Flammability UL 94-V0

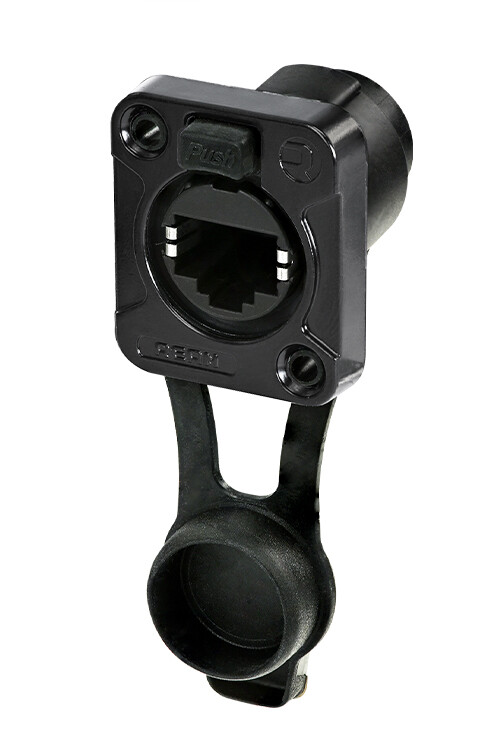

Protection class IP65 (Mated or closed with rubber cap)
Standard compliance TIA/EIA 586B, IEC 11801
Temperature range -20 °C to +70 °C
