Rean RRX3F-Z

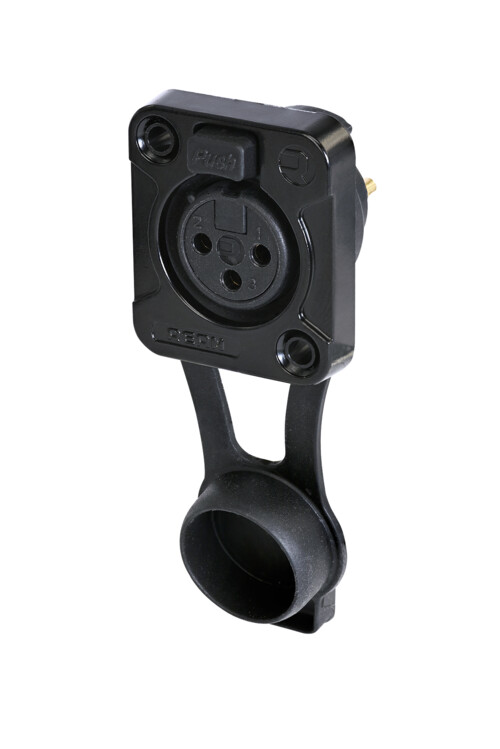

3 pole female XLR receptacle with D-Size Flange, solder cups and IP65 protection
Technical Information
Product
Title RRX3F-Z
Connection Type XLR
Gender Female
Electrical
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 60 N
Withdrawal force ≤ 60 N
Lifetime >1000 cycles
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating Tin (-000 & -001) / AU (-002)
Contacts Bronze
Insert Polyamide (UL94-V0)
Locking element CK67 (spring)
Shell Zinc diecast
Shell plating Chrome (-000) / Black (-001 & -002)
Environmental
Flammability UL94 V-0
Protection class IP65 (Mated or closed with rubber cap)
Standard compliance IEC 61076-2-103
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
