Technical Information
Product

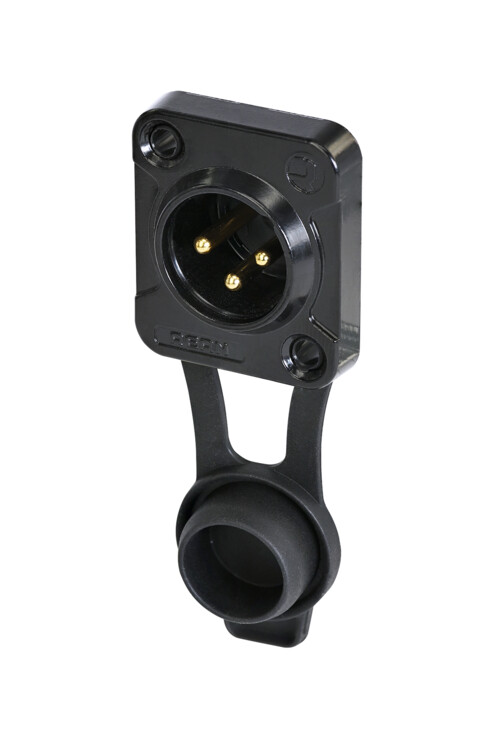

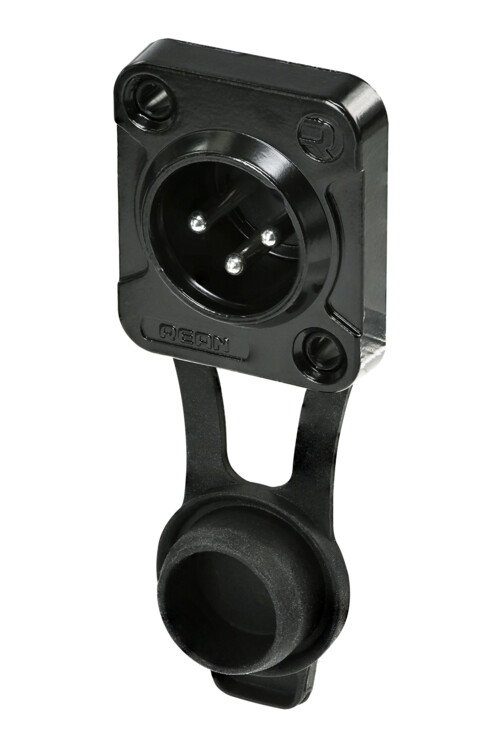

Title RRX3M-Z
Connection Type XLR
Gender male
Electrical
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 60 N
Withdrawal force ≤ 60 N
Lifetime > 1000 cycles
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating Tin (-000 & -001) / AU (-002)
Contacts Brass
Insert Polyamide (UL94-V0)
Locking element Zinc diecast
Shell Zinc diecast
Shell plating Chrome (-000) / Black (-001 & -002)
Environmental
Flammability UL 94-V0
Protection class IP65 (Mated or closed with rubber cap)
Standard compliance IEC 61076-2-103
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
