Rean RT3FC-B
Šifra:

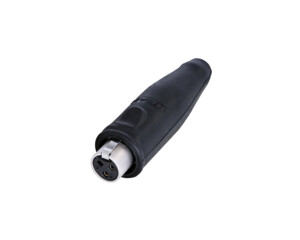

3 pole female TINY xlr cable connector
Technical Information
Product
Title RT3FC-B
Connection Type XLR
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Rated current per contact ＜5 A
Mechanical
Cable O.D. Range 2.0-4.5mm
Lifetime >1000 Mating Cycles
Wiresize 0.22 mm²
Wiresize 24 AWG
Material
Ground Contact Steel
Rubber Spring Rubber
Latch Zinc
Chuck POM
Boot PC/ABS+TPU
Housing Zinc
Plastic housing PA6+30%GF
Jack Bronze
Ground Contact Bronze
Tube Aluminum
Latch Nickel Plating
Housing Nickel Plating
Jack Gold Plating
Ground Contact Tin
Tube Black Plating
