Keyboard
61 keys
Touch response
3 types, off
Maximum Polyphony
64 notes (32 for certain tones)
Tones
Sound Source: AiX
Built-in tones: 800
User tones: 100
Functions: Layer, Split
Digital effects
Reverb: 32 types, off
Chorus: 16 types, tone
Delay: 20 types, tone
DSP: 100 types, DSP tones
Master effects
Equalizer (10 Presets), 4-band user equalizer
External input effects
Center cancel (vocal cut) for input from the audio in jack
Metronome
Beats per measure: 0 (accented tone off), 1 to 16
Tempo range: 20 to 255
Song bank
Demo song: 3
Built-in songs: 30
User-recorded songs: 10
USB Flash Drive SMF files
Playback of standard MIDI files (SMF format 01/1), CASIO MIDI files (CMF format) on a USB flash drive is supported.
USB audio playback
Playback of audio files on a USB flash drive is supported.
Supported file formats: WAV, 44,1 kHZ 16 Bit
Other functions: Center cancel (vocal cut)
Auto accompaniment
Built-in rhythms: 235
User rhythms: 50
Music presets
310
One touch presets
235
Phrase Pads
Number of pads: 4
User Phrases: 100 (4 phrases x 25 pads)
Editing mode: Copy, delete, phrase editing
Mixer functions
Affected parts: Sound source parts, microphone input part
Parameters: Part on/off, volume, pan reverb send, chorus send, delay send
Registration
128 setups (8 setups x 16 banks), registration sequence
Tone editing
Preset tone editing, DSP editing. Memory for storage of edited tones (up to 100)
Internal rhythm editing
New rhythm creation, rhythm editing Memory for storage of created/edited rhythms (up to 100)
MIDI recorder
Real-time recording, playback
Keyboard play: 10 songs, 17 tracks (1 system track, 16 solo tracks)
Memory capacity: approximately 40.000 notes (per song)
Editing mode: Song editing, track editing, event editing, step input
Other functions: Overdubbing, punch-in recording
Controllers
Pitch bend wheel, SUSTAIN button, PORTAMENTO button, MODULATION/ASSIGNALE button
Other functions
Transpose: ± 1 octave (-12 to 0 to + 12 semitones)
Octave shift: Upper 1/ Upper 2/ Lower 1/ Lower 2, ± 3 octaves
Tuning: A4 = 415,5 to 465,9 Hz (initial default: 440,0 Hz)
Part coarse tune: For each keyboard part, ± 2 octaves (-24 to 0 to + 24 semitones)
Part fine tune: For each keyboard part, ± 99 cents
Preset scales: 17 preset scales, scale fine tuning
Auto harmonize: 12 types
Arpeggiator: 150 types
MIDI
16-multi-timbre received, GM Level 1 standard

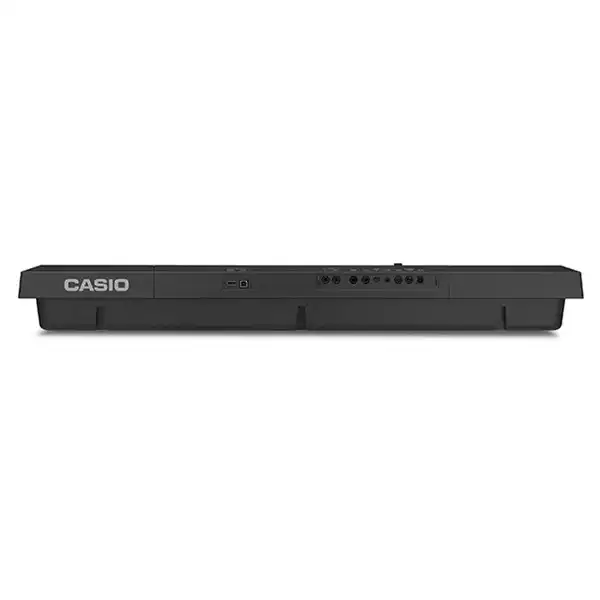

Inputs/Outputs
USB flash drive port: Type A
USB port: Type B
Pedal jack 1: Standard jack (sustain, sostenuto, soft, rhythm)
Pedal jack 2, expression jack: Standard jack (expressio jack)
Phones/Output jack: Stereo standard jack
Audio input jack: Stereo mini jack (Input impedance: 9 kΩ, input sensitivity: 200 mV)
Power jack
DC 24 V
Power supply
AC adaptor only
AC adaptor: AD-E24250LW
Auto power off: approximately 30 minutes after last operation; can be disabled
Speakers
10 cm x 2 (output: 15 W + 15 W)
Power consumption
24 V – 15 W
Dimensions
94,8 x 38,4 x 11,6 cm
Weight (without batteries)
approximately 7,0 kg (without batteries)
