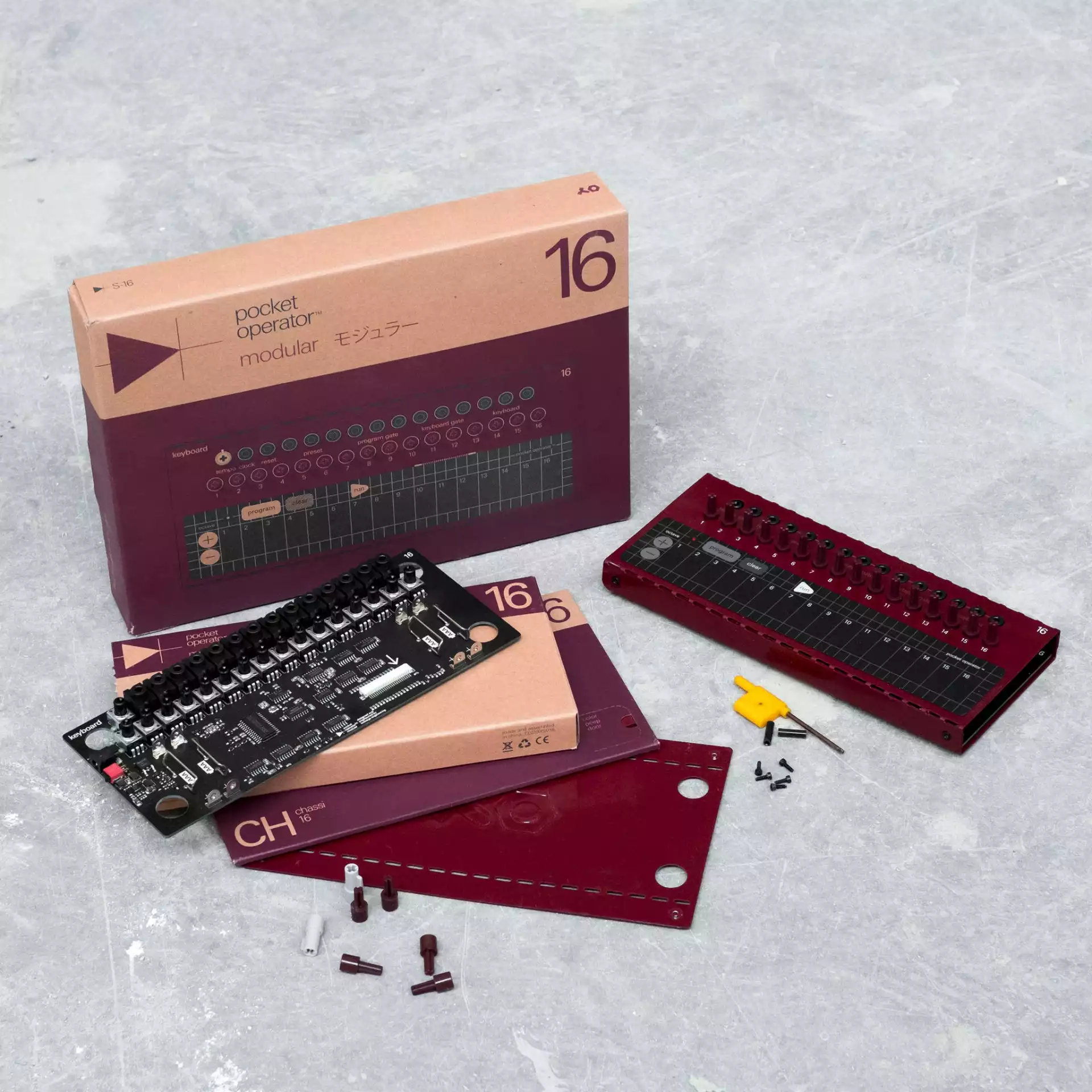

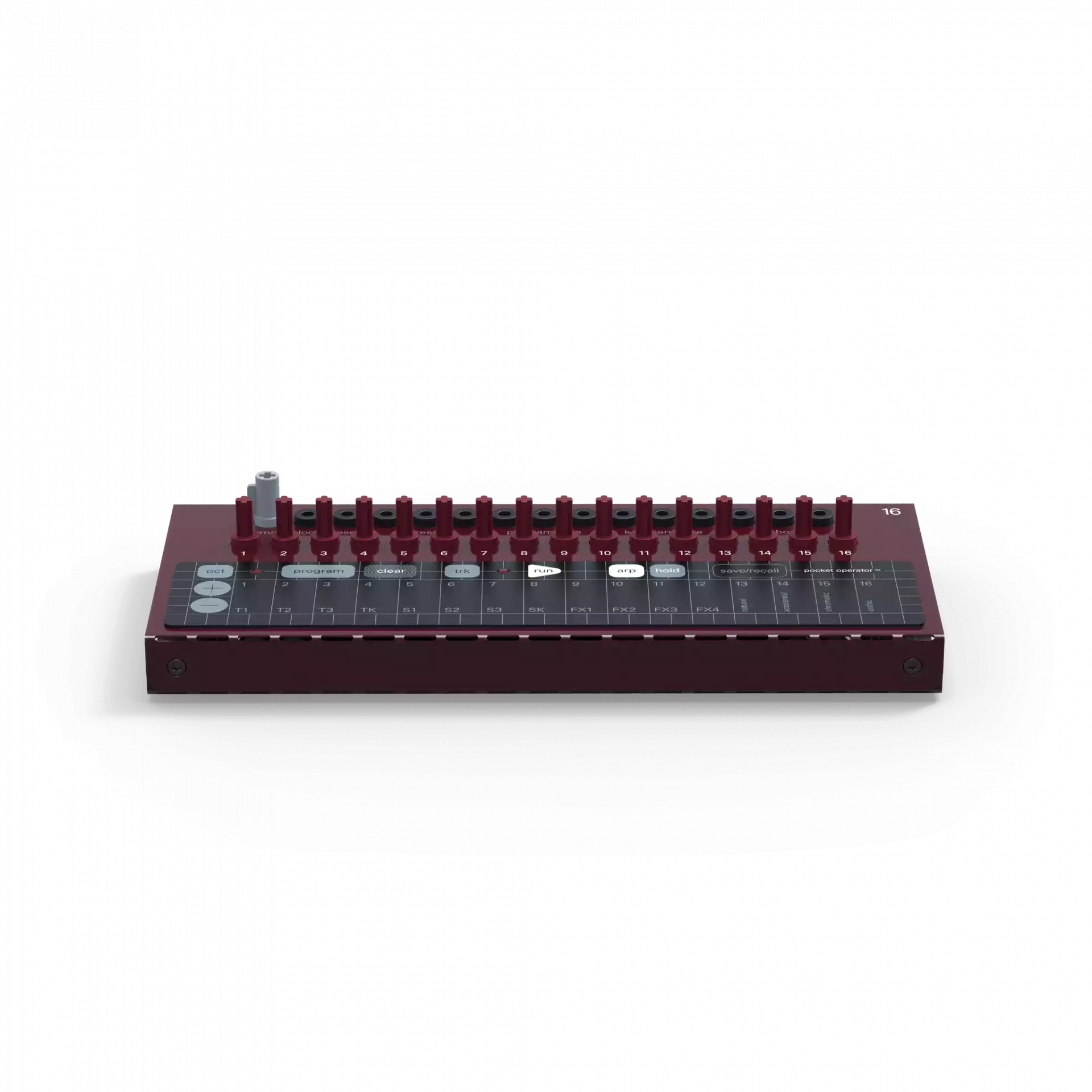

The Teenage Engineering Pocket Operator Modular 16 is a standalone keyboard kit featuring individual tunable keys and a programmable step sequencer designed to control the Modular 400 or other Eurorack modular systems. This kit includes a metal chassis, keyboard, 16 trim knobs, a value knob, four rubber feet, chassis screws, and a screwdriver. The included manual guides you through the process of assembly.
The Modular 16's sequencer features 16 slots, 4 tracks per slot, and 1 pattern per track. Store up to 64 independent patterns, and each pattern can be up to 64 steps long. Each of the 16 slots are labeled by the numbers 1-16, which also represent keys on the keyboard. The 4 tracks are labeled T1-T3, as well as TK, where K stands for keyboard. Play notes and program patterns using the keyboard and use the knobs to control CV. Patch the CV/gate outputs to your other operator modular units or to any other compatible device. Additionally, a PO Sync output is available to synchronize pocket operators, as well as MIDI output, which can control MIDI gear.
Teenage Engineering 16 Specs
Keyboard & Controllers | Membrane Keyboard Controller with 16 Notes 16 x CV Knobs (Each Note is Tunable) |
Inputs and Outputs | Clock Input: 1/8" / 3.5 mm Rest Input: 1/8" / 3.5 mm T1 CV Out: 1/8" / 3.5 mm T2 CV Out: 1/8" / 3.5 mm T3 CV Out: 1/8" / 3.5 mm T1 Gate Out: 1/8" / 3.5 mm T2 Gate Out: 1/8" / 3.5 mm T3 Gate Out: 1/8" / 3.5 mm TK Gate Out: 3 x 1/8" / 3.5 mm TK CV Out: 3 x 1/8" / 3.5 mm |
FX | FX1: Short FX2: Chop FX3: Legato FX4: Glide |
Arpeggiator | 16 Types: Up, Down, Up and Down, Ping-Pong, Ordered, Ordered and Back, Up Double, Down Double, Up and Down Double, Ordered Double, Duplicate Octave Up, Duplicate Octave Down, Octave Up and Down, Octave Down and Up, Random, and Random |
Swing Range | 50% to 75% |
Clock | External Clock Tempo Clock Divider (1/4, 1/2, 1/1) Clock Input Pulse Range: 12.5 ms to 1.5 sec |
Notes | Note Length: 256 Ticks per Step Are Possible Default: 3 Ticks per Step Minimum: 1 Tick Maximum: 256 Ticks Notes Will Jump between Each Other Until the Initial Note is Finished |
Scales | Natural: White Piano Keys Accidental: Black Piano Keys Chromatic: Both White and Black Keys Arabic: A Type of Arabic Scale |
Dimensions | 8.4 x 3.6 x 0.7" / 21.4 x 9.2 x 1.8 cm |
Package Weight | 1.615 lb |
Box Dimensions (LxWxH) | 10.7 x 7.8 x 1.5" |
