TEENAGE ENGINEERING Pocket Operator Modular 170
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!

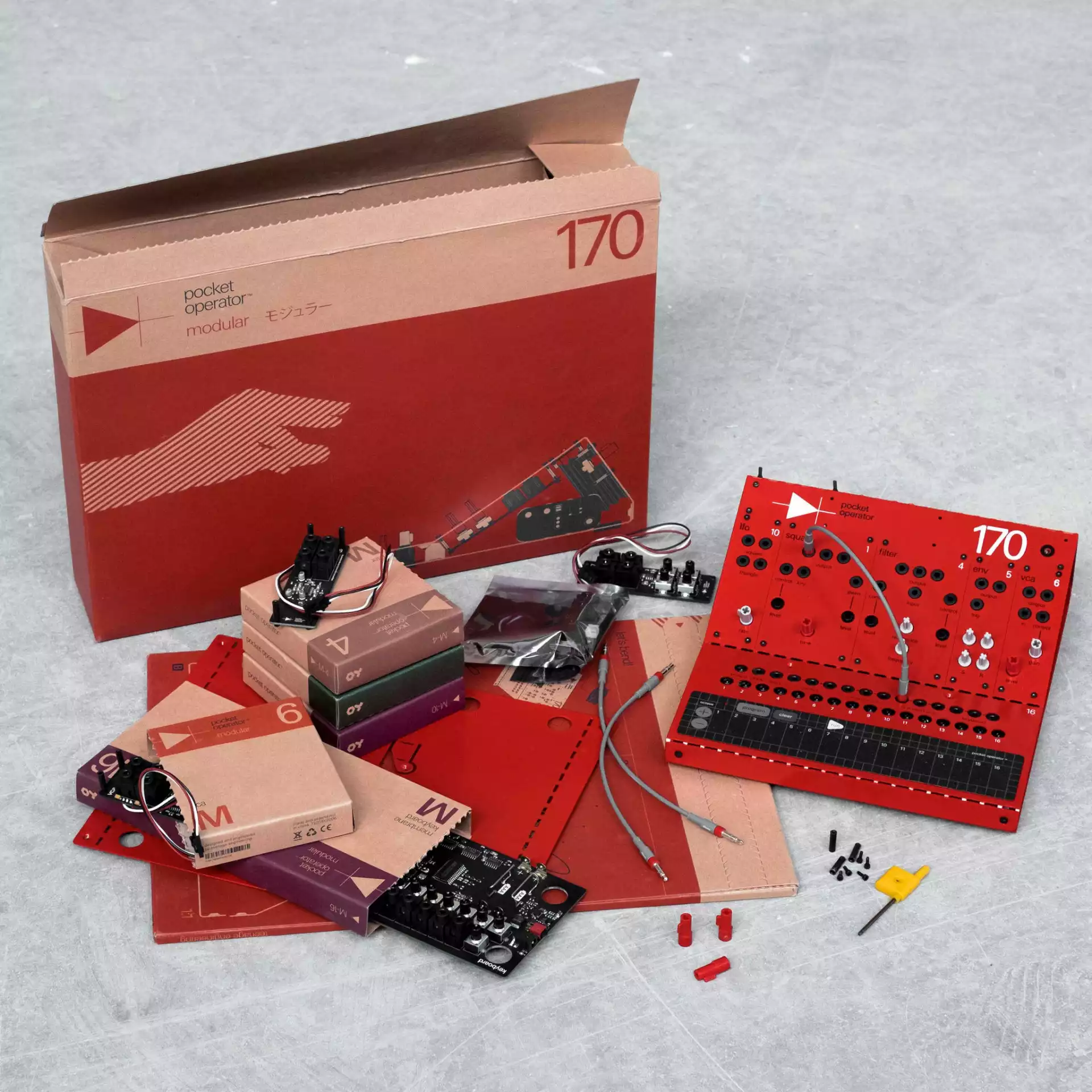

The Teenage Engineering Pocket Operator Modular 170 is a monophonic analog modular synthesizer in kit form, which includes a squarewave VCO, low-pass filter, envelope generator, VCA, LFO, amp/speaker, power distribution, and a standalone keyboard featuring individual tunable keys and a programmable step sequencer. Also included in the kit is the metal chassis, 23 trim knobs, 9 value knobs, 6 rubber feet, 4 chassis screws, and a screwdriver. The included manual guides you through the process of assembly.
| Connectors | Square CV Key Input: 1/8" / 3.5 mm CV Control Input:1/8" / 3.5 mm PWM CV Input:1/8" / 3.5 mm Squarewave Output:1/8" / 3.5 mm Filter Audio Input: 1/8" / 3.5 mm CV Control Input: 1/8" / 3.5 mm Filter Output: 1/8" / 3.5 mm Env Gate Trig Input: 1/8" / 3.5 mm Env Output: 1/8" / 3.5 mm VCA Audio Input: 1/8" / 3.5 mm CV Control Input: 1/8" / 3.5 mm Audio Output:1/8" / 3.5 mm LFO Square Wave Output: 1/8" / 3.5 mm Triangle Wave Output: 1/8" / 3.5 mm Speaker / AmpLeft Input: 1/8" / 3.5 mm Right Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Controls | Square: Tune Knob Control Level Knob PWM Level Knob Filter: Frequency Control Knob Resonance Control Knob Control Level: 2 x Knobs Env: Attack Knob Decay Knob Sustain Knob Release Knob VCA: Gain Control Knob Level Knob LFO: Rate Knob Speaker/Amp: Volume Knob |
| Keyboard & Controllers | Membrane Keyboard Controller with 16 Notes 16 x CV Knobs (Each Note is Tunable) |
| Inputs and Outputs | Clock Input: 1/8" / 3.5 mm Rest Input: 1/8" / 3.5 mm T1 CV Out: 1/8" / 3.5 mm T2 CV Out: 1/8" / 3.5 mm T3 CV Out: 1/8" / 3.5 mm T1 Gate Out: 1/8" / 3.5 mm T2 Gate Out: 1/8" / 3.5 mm T3 Gate Out: 1/8" / 3.5 mm TK Gate Out: 3 x 1/8" / 3.5 mm TK CV Out: 3 x 1/8" / 3.5 mm |
| FX | FX1: Short FX2: Chop FX3: Legato FX4: Glide |
| Arpeggiator | 16 Types: Up, Down, Up and Down, Ping-Pong, Ordered, Ordered and Back, Up Double, Down Double, Up and Down Double, Ordered Double, Duplicate Octave Up, Duplicate Octave Down, Octave Up and Down, Octave Down and Up, Random, and Random |
| Swing Range | 50 to 75% |
| Clock | External Clock Tempo Clock Divider (1/4, 1/2, 1/1) Clock Input Pulse Range: 12.5 ms to 1.5 sec |
| Notes | Note Length: 256 Ticks per Step Are Possible Default: 3 Ticks per Step Minimum: 1 Tick Maximum: 256 Ticks Notes Will Jump between Each Other Until the Initial Note is Finished |
| Scales | Natural: White Piano Keys Accidental: Black Piano Keys Chromatic: Both White and Black Keys Arabic: A Type of Arabic Scale |
| Power | Optional (Not Included) AC/DC Adapter 12 V, Minimum 1 A (12 W) Polarity: Center Negative Plug: 4.75 / 1.7 mm |
| Dimensions | 9.5 x 8.4" / 242.0 x 214.0 mm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 4.06 lb |
| Box Dimensions (LxWxH) | 15.1 x 10.9 x 2.7" |
