TEENAGE ENGINEERING Pocket Operator Modular 400
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!

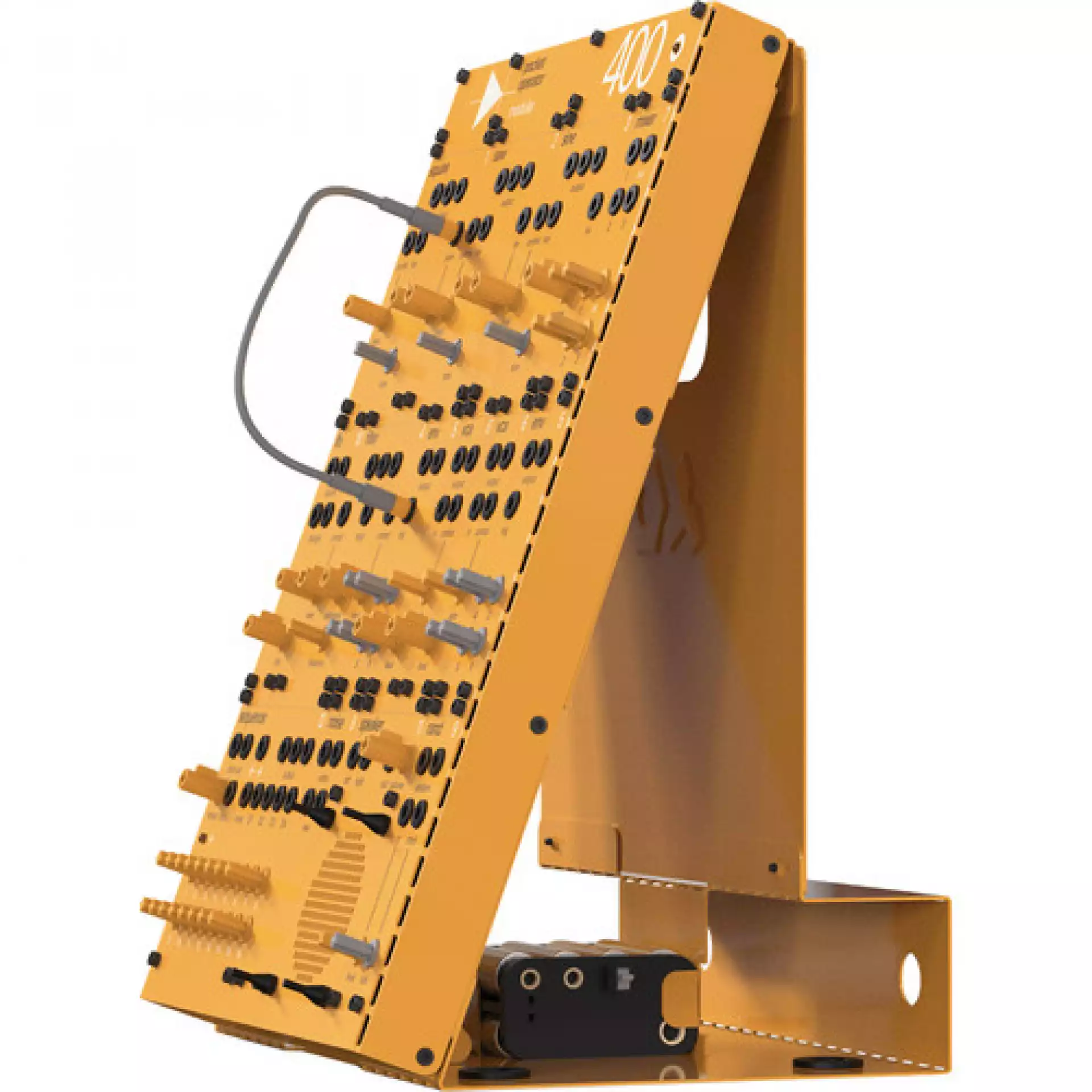

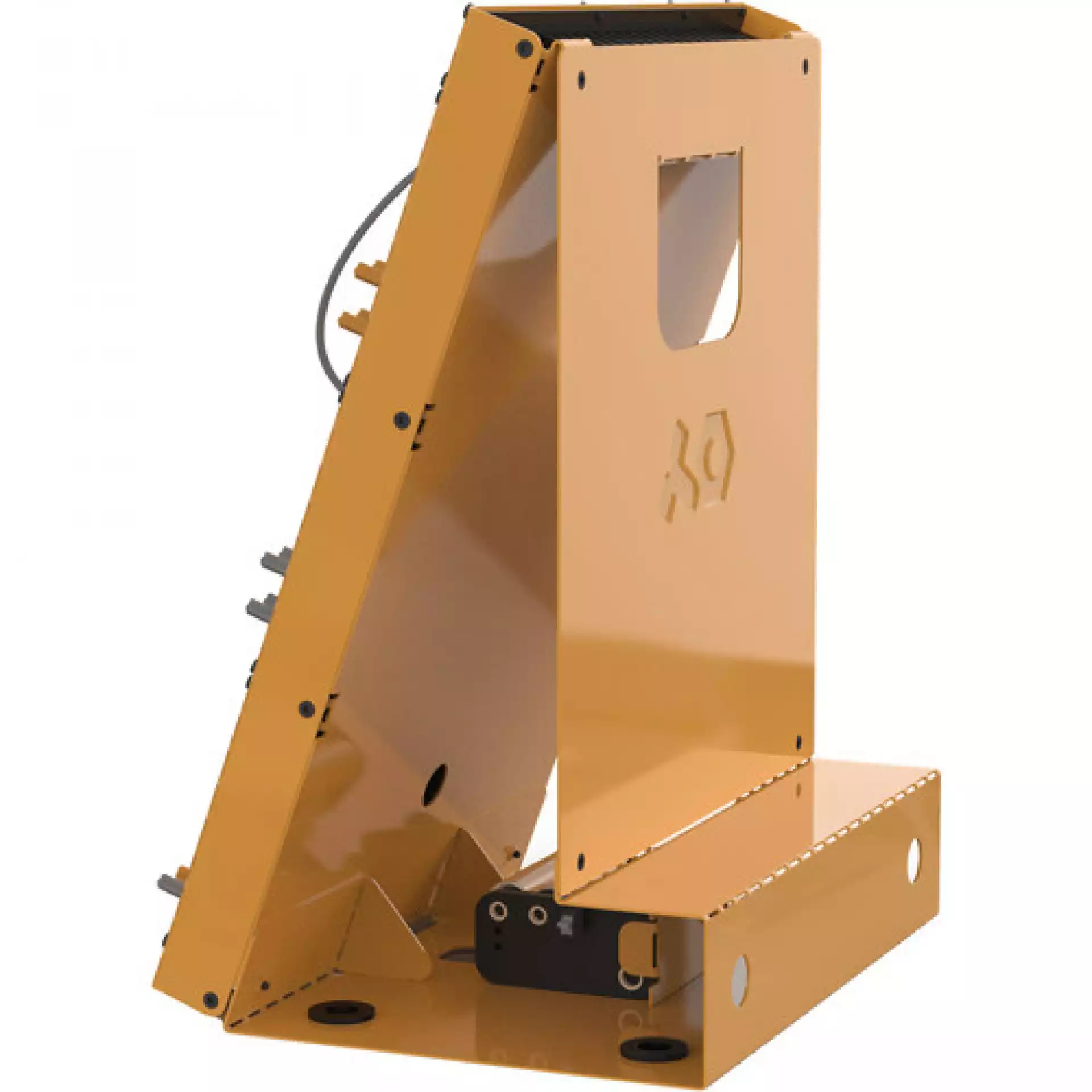

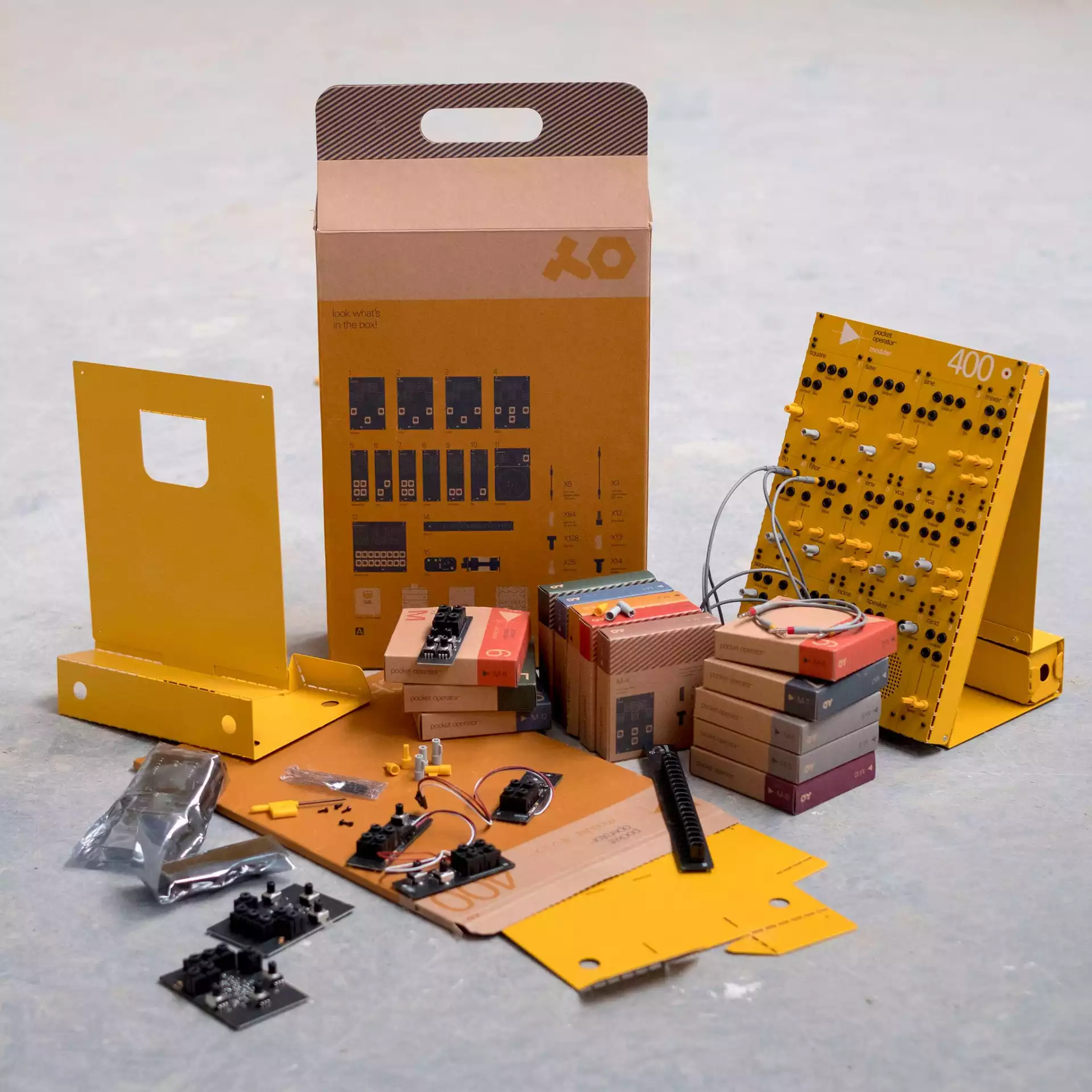

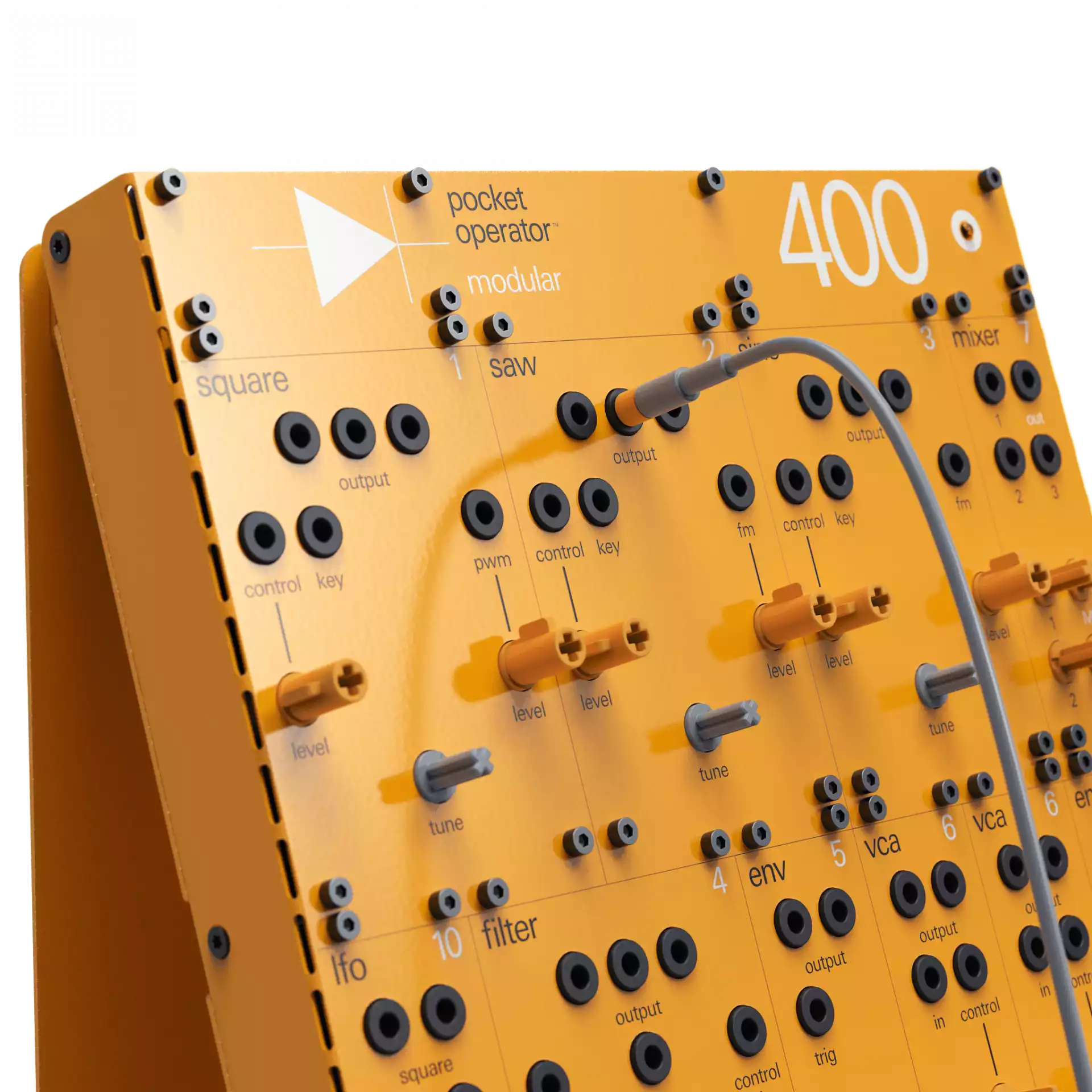

The Teenage Engineering Pocket Operator Modular 400 is a monophonic analog modular synthesizer in kit form. Module types include: square, saw, and sine-wave VCOs, a low-pass filter, two envelope generators, two VCAs, an LFO, a noise source, a random (S&H) generator, a 16-step sequencer, a built-in amp/speaker, and power distribution. Also included in the kit is the metal chassis, 37 trim knobs, 13 value knobs, 4 rubber feet, 14 sheet metal screws, 128 chassis screws, 64 spacers, and a screwdriver. The included manual guides you through the process of assembly.
| Connectors | Square CV Key Input: 1/8" / 3.5 mm CV Control Input:1/8" / 3.5 mm PWM CV Input:1/8" / 3.5 mm Squarewave Output:1/8" / 3.5 mm Sawtooth CV Key Input: 1/8" / 3.5 mm CV Control Input:1/8" / 3.5 mm FM CV Input:1/8" / 3.5 mm Saw-Wave Output: 1/8" / 3.5 mm Sine CV Key Input: 1/8" / 3.5 mm CV Control Input:1/8" / 3.5 mm FM CV Input:1/8" / 3.5 mm Sine-Wave Output:1/8" / 3.5 mm Mixer Audio Inputs: 1/8" / 3.5 mm Audio Outputs: 1/8" / 3.5 mm Filter Audio Input: 1/8" / 3.5 mm CV Control Input: 1/8" / 3.5 mm Filter Output: 1/8" / 3.5 mm Env Gate Trig Input: 1/8" / 3.5 mm Env Output: 1/8" / 3.5 mm VCA Audio Input: 1/8" / 3.5 mm CV Control Input: 1/8" / 3.5 mm Audio Output:1/8" / 3.5 mm LFO Square-Wave Output: 1/8" / 3.5 mm Triangle-Wave Output: 1/8" / 3.5 mm Speaker/Amp Left Input: 1/8" / 3.5 mm Right Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm Noise White Noise: 1/8" / 3.5 mm S&H: 1/8" / 3.5 mm Rand Random Output: 1/8" / 3.5 mm Input: 1/8" / 3.5 mm Rate: 1/8" / 3.5 mm Sequencer Output: 1/8" / 3.5 mm Forward/Backward: 1/8" / 3.5 mm Clock Input: 1/8" / 3.5 mm Clock Outputs: 1/8" / 3.5 mm Reset: 1/8" / 3.5 mm D1, D2, D3, D4: 1/8" / 3.5 mm |
| Controls | Square: Tune Knob Control Level Knob PWM Level Knob Saw: Tune Knob Control Level Knob FM Level Knob Sine: Tune Knob Control Level Knob FM Level Knob Mixer: Input Level Knobs Output Level Knob Filter: Frequency Control Knob Resonance Control Knob Control Level: 2 x Knobs Env: Attack Knob Decay Knob Sustain Knob Release Knob VCA: Gain Control Knob Level Knob LFO: Rate Knob Speaker/Amp: Volume Knob Rand: Level Knob Rate Knob Sequencer: CV Knobs Tempo Knob |
| Power | Optional (Not Included) AC/DC Adapter 12 V, Minimum 1 A (12 W) Polarity: Center Negative Plug: 4.75 / 1.7 mm Battery Power: 8 x AA Batteries (Not Included) |
| Dimensions | 8.4 x 12 x 7.2" / 21.4 x 30.5 x 18.3 cm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 5.915 lb |
| Box Dimensions (LxWxH) | 18.5 x 10.8 x 3.6" |
