Iridium koristi tri digitalna oscilatora i dva digitalna multi-mod filtera. Za još veću raznovrsnost, glasovi se mogu podeliti ili slagati multi-timbralno na dva dela. Svaki od oscilatora sposoban je za pet sintetičkih algoritama uključujući Wavetable, Waveform, Particle, Resonator i Kernal (koji nudi šest internih kernel operacija po oscilatoru, koristeći razne modulacije – FM, Ring-Mod, AM ili wavetable-bazirane audio-rate modulacije). Instrument generiše custom-wavetable(s) koristeći zvuk koji može da bude rutovan kroz audio ulaz Iridium-a, ili učitan iz interne ili sempl memorije.

Type - Desktop Module

Polyphony - 16 Voices

Multitimbral - Dual Timbral: Split or Layered Mode with Separate Stereo Audio Outputs

Oscillators: 3 Digital Oscillators Per Voice, Each Capable of Five Synthesis Algorithms, Wavetable: Waldorf Style with Latest Additions from Nave Including Speech Synthesis and Wavetable Generation from Audio, Waveform: Waveform with Up to 8 Simultaneous Waves per Oscillator in Detuned or Chordal Mode with Hard-Sync, Warp, and PWM, as Well as Tunable Noise, Particle: Sampler in Traditional and Granular Mode Using Multisamples or Live Input, Resonator: Exciter Using Multisampling Plus Filterbank Sound Model, Kernel: 6 x Internal Kernel Operators per Osc Using Various FM, Ring-Mod, AM or Wavetable Based Audio-Rate Modulations

Filters - Two Digital Stereo Filters in Various Modes and Configurations Including Innovative Link Modes, Digital Former: Additional Digital Algorithms per Voice Like Comb, High-Pass, Band-Pass, and Notch Filters (Nave, Largo or PPG models), Bit-Crusher, Drive, and more

Modulation: Complex Multistage LFO/Envelope Modulators, 6 LFO in Poly and Global Mode with Extensive Parameter Set, 6 Loopable Envelopes

Extensive Modulation Matrix with 40 Slots and Easy Control Assignments

Effects - Master Effect Rack of 5 Slots for Each Timbre, Choosing from FX like Phaser, Flanger, Chorus, Reverb, Drive, EQ, and MoreMain Output: Compressor

Step Sequencer: Step Sequencer with Step Recording, Parameter Automation, and Scale-Based Pitch Quantization

Tuning: Microtonal Pitch Configurations Capable of Importing Skala SCL Files

Arpeggiator: Yes

Chord: Chord-Play Mode with Hold and Latch

Unison Mode: Yes

Presets: Module-Based Preset System for Effects, Oscillators, and Complex Modulators

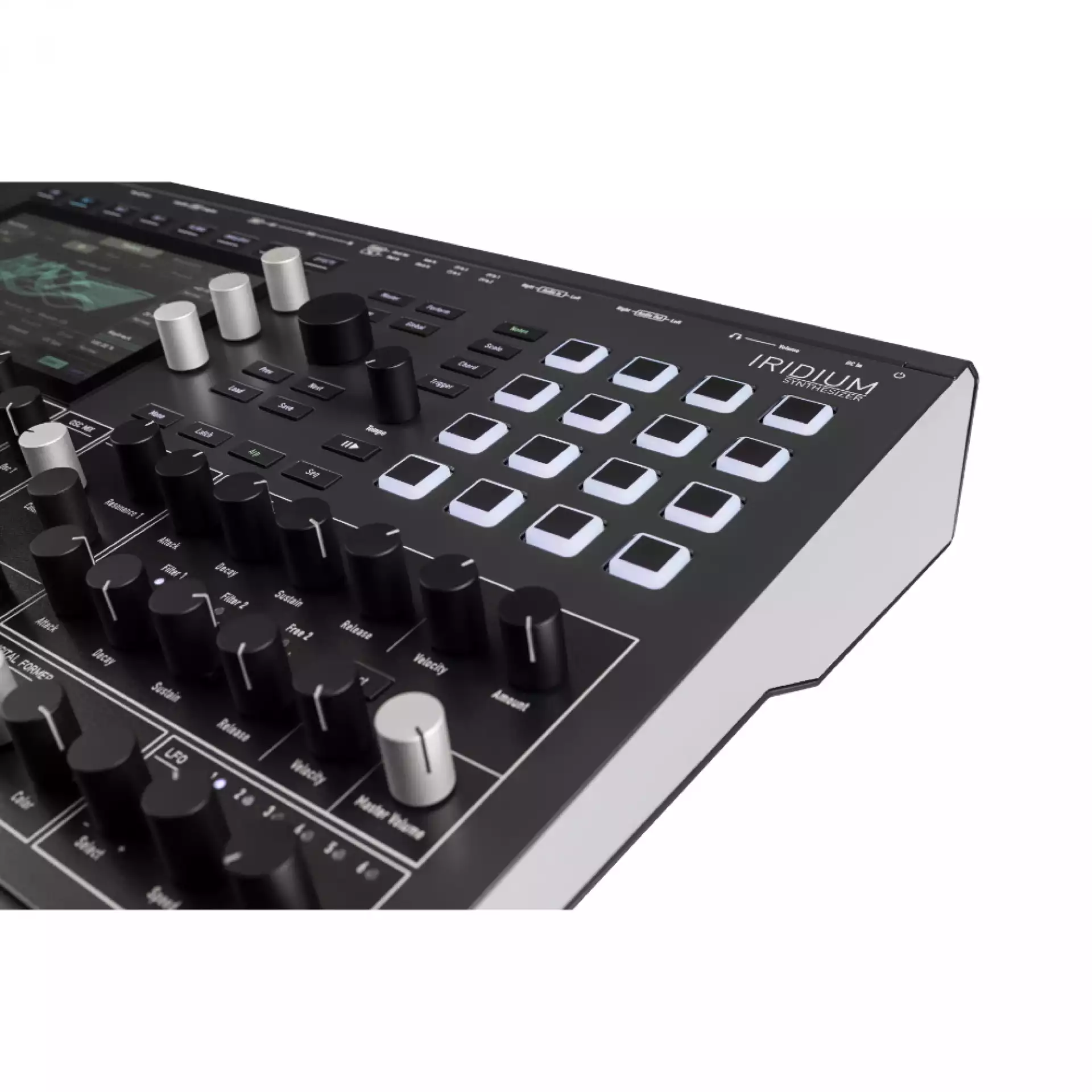

Controls: Single-Function Potentiometer and Encoder Controls for Intuitive Editing, Pad Button Matrix: 4 x 4 Pads for Sequencer, Arpeggiator, Sampler, or Live Performance Control, Supports Polyphonic Aftertouch, Automation of Sound Parameters from MIDI Inputs via MIDI CC Learn Function

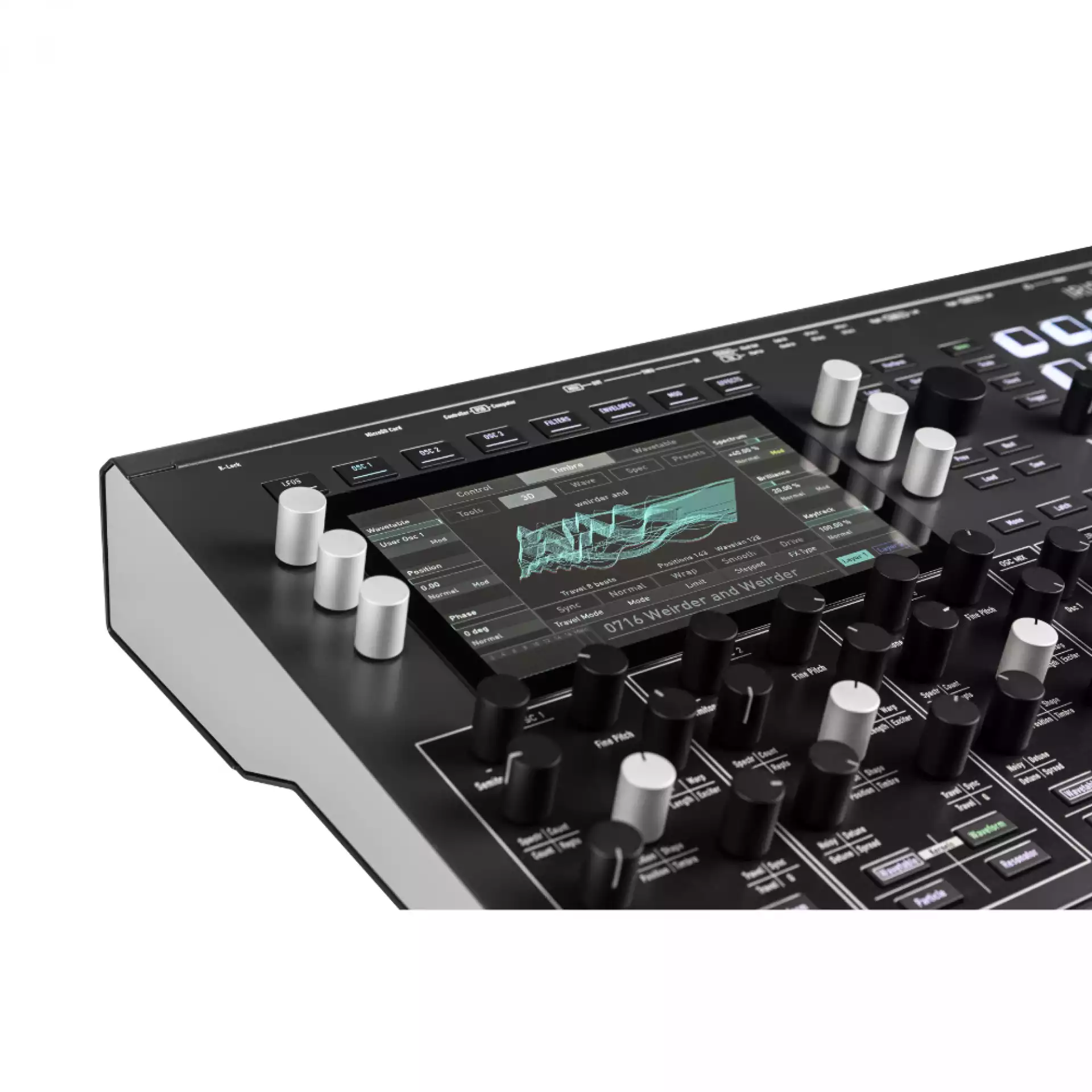

Display: Visualization and Deeper Sound Editing via Context-Sensitive High-Resolution Capacitive Multitouch Display

Spectral Analyzer: Spectrum Analyzer and Oscilloscope at Various Processing Stages

Memory: Internal Flash Memory: 4 GB for Presets, Samples, and Wavetables, Up to 7000 Sound Patch Capacity Organized by Banks, Attributes, Author, and Patch Number, Favorites Lists for Quick Recall of Sound Patches Like for Set-Lists, Preloaded with a Wide Variety of Patches by Acclaimed Sound Designers like Howard Scarr, Preloaded with More than 1 GB Sample Data

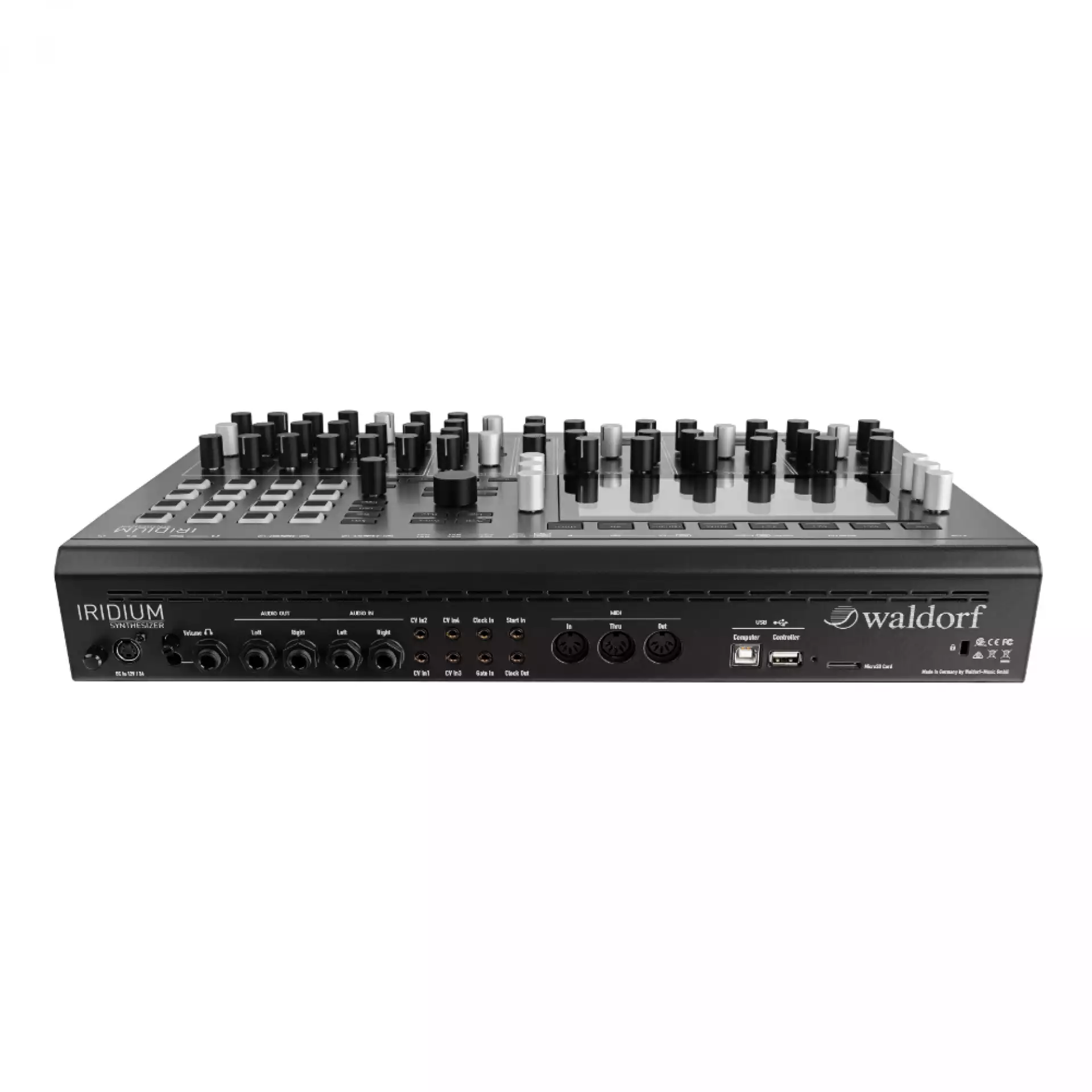

Inputs and Outputs: Main Output - 2 x 1/4" / 6.3 mm, Headphone Output - 1 x 1/4" / 6.3 mm and 1 x 1/8" / 3.5 mm, Inputs - 2 x 1/4" / 6.3 mm

4 CV Continuous Control Inputs Including CV Gate, CV Clock, and CV Start Inputs for Connecting EuroRack Modules or Compatible Devices

Sampling: Recording of Samples from Audio Inputs or Self-Recording of Audio Outputs

USB - Computer: USB Type-B, Controller: USB Type-A

MIDI Connectors: Input: 5-Pin DIN, Out: 5-Pin DIN, Thru: 5-Pin DIN

SD Card Slot: Export and Import of Presets, Samples, Wavetable, and Software Updates, Import of Nave Presets

PowerExternal Power Supply: 12 VDC, 3 A (Included)

Dimensions: 58 x 40 x 18 cm, Weight: 6.9 kg
