MAC ENCORE PERFORMANCE,CLD,EPS
Šifra:
1.506.000,00 rsd
1.255.000,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!

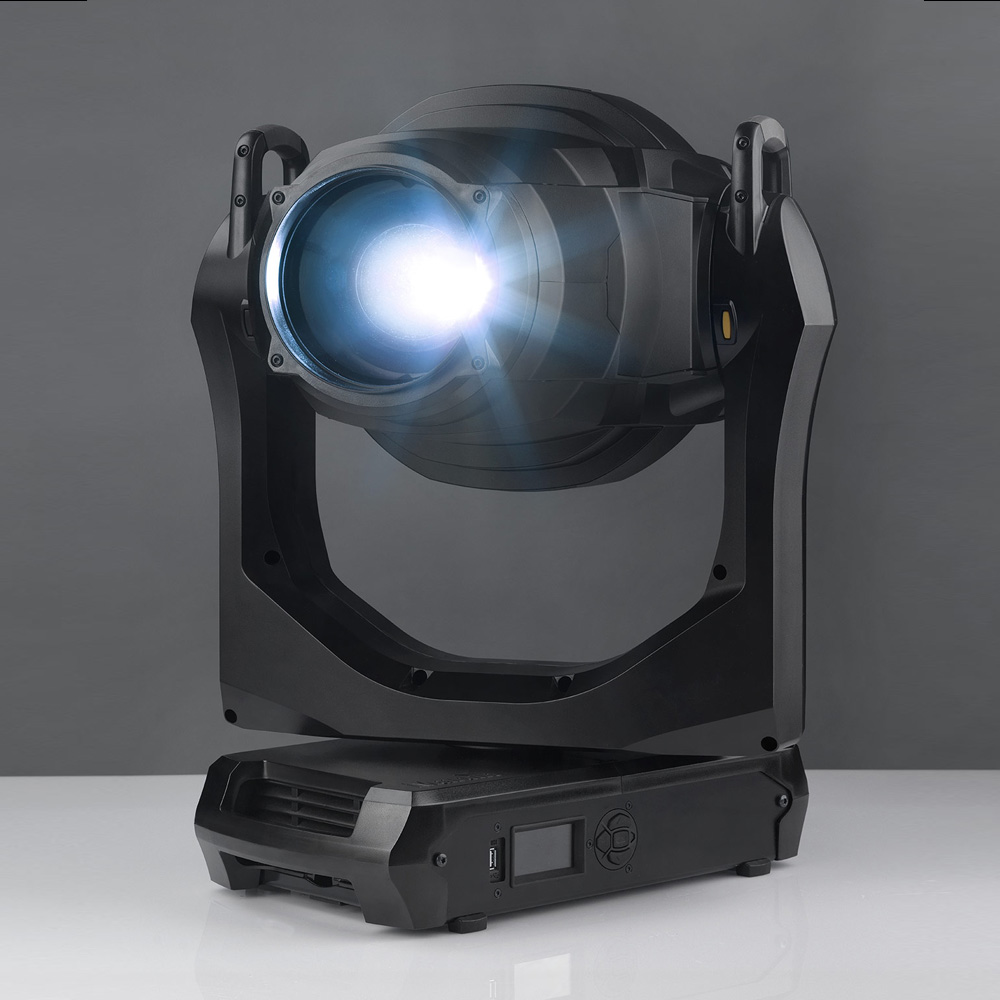

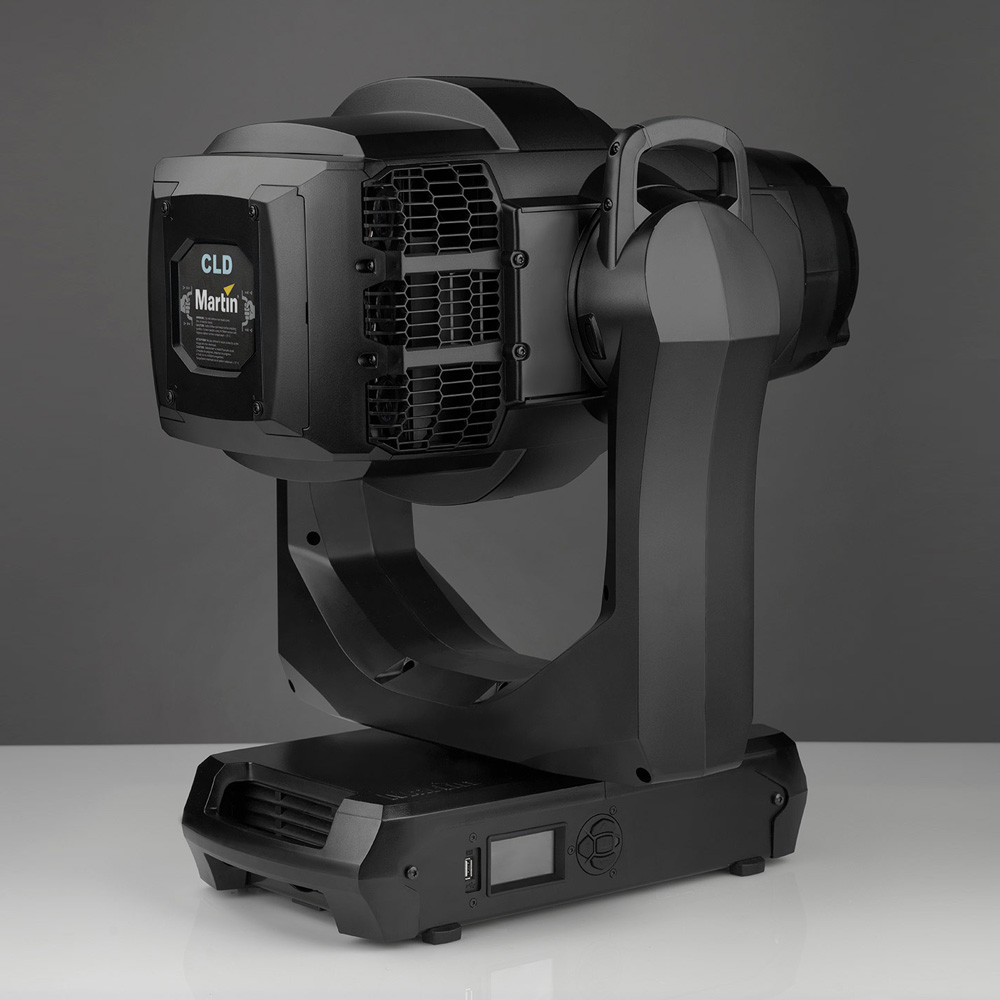

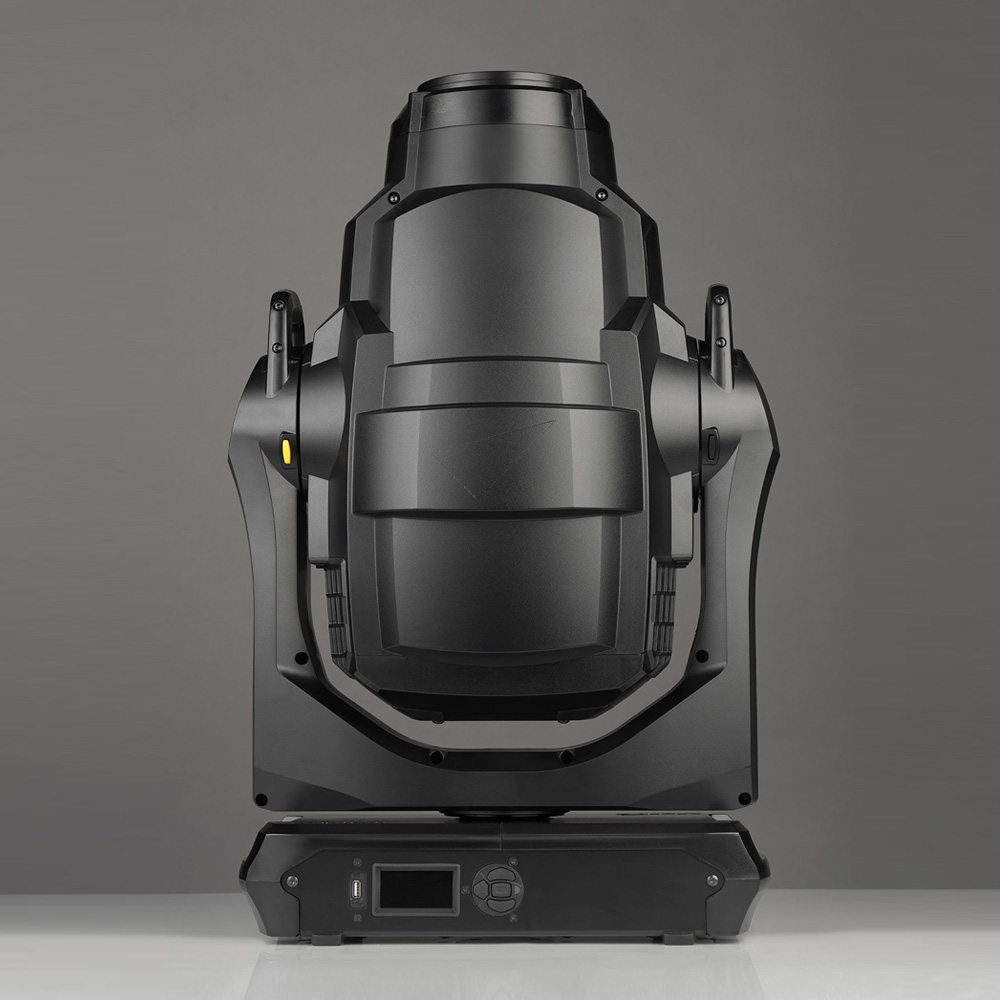

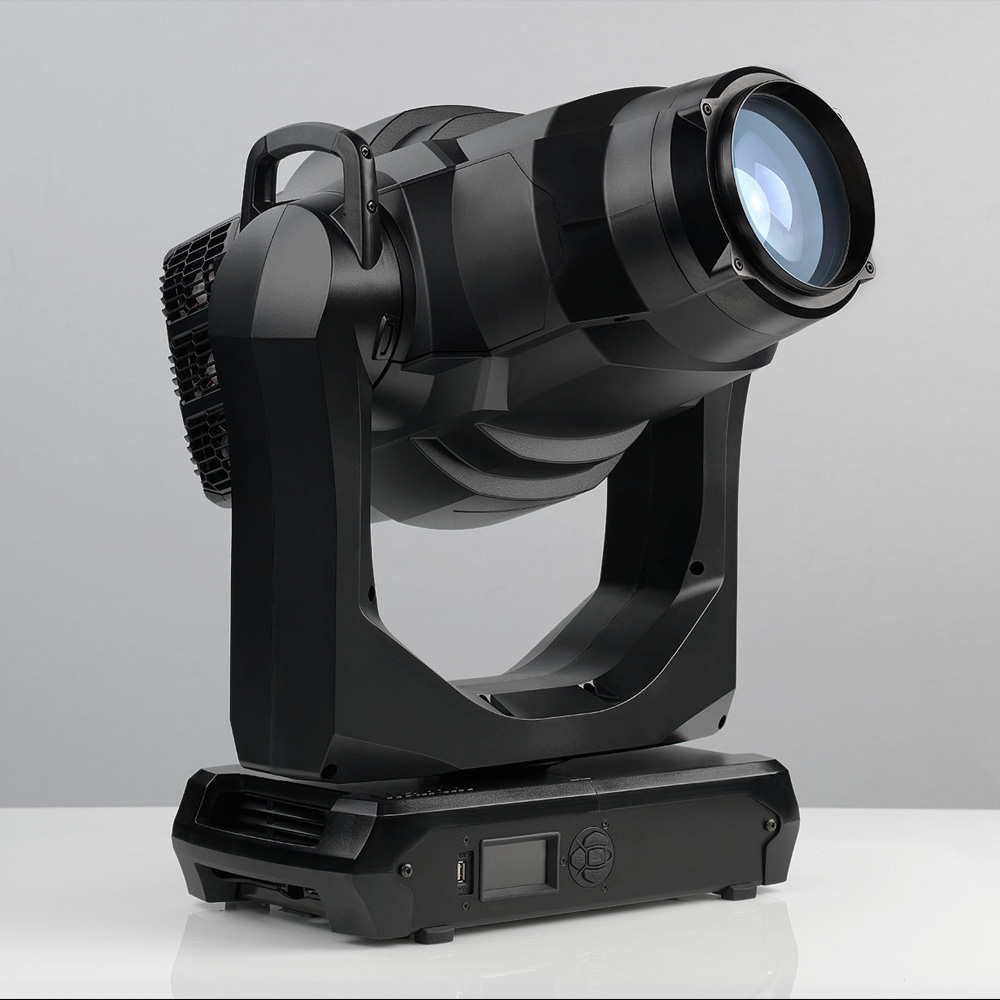

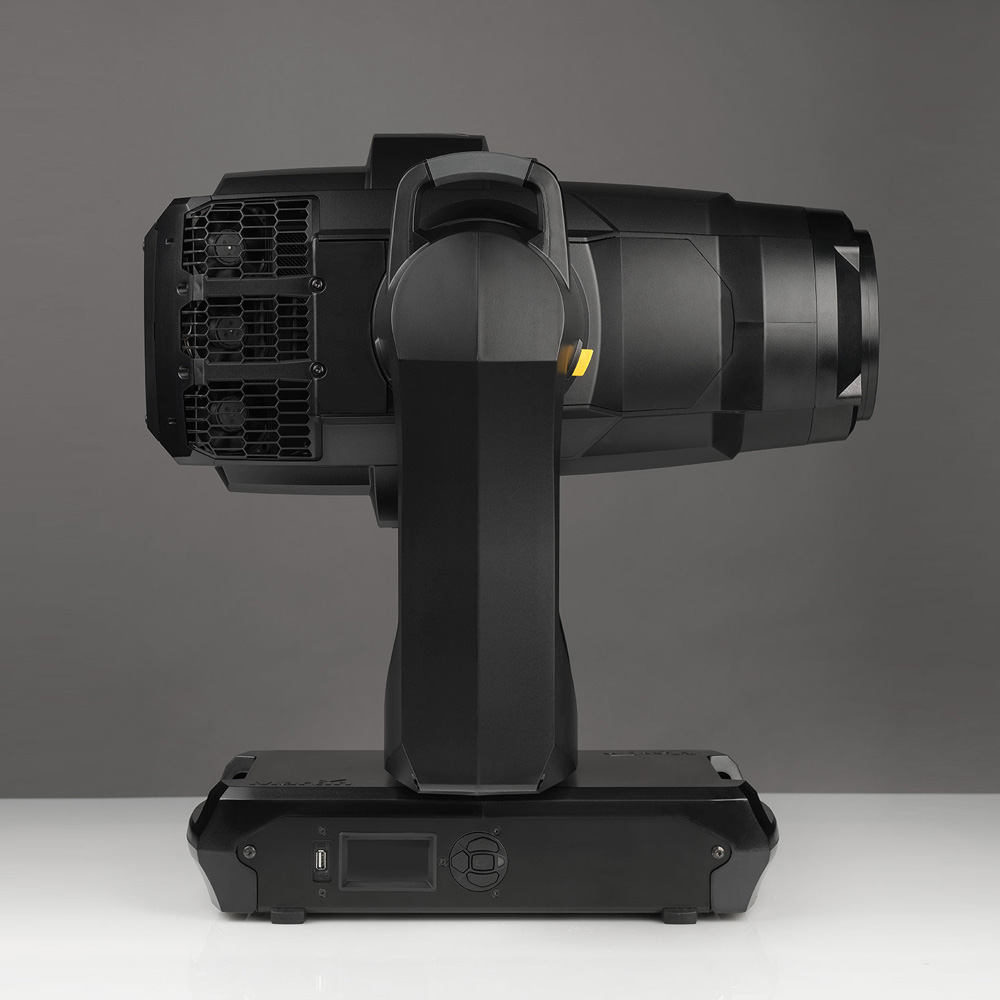

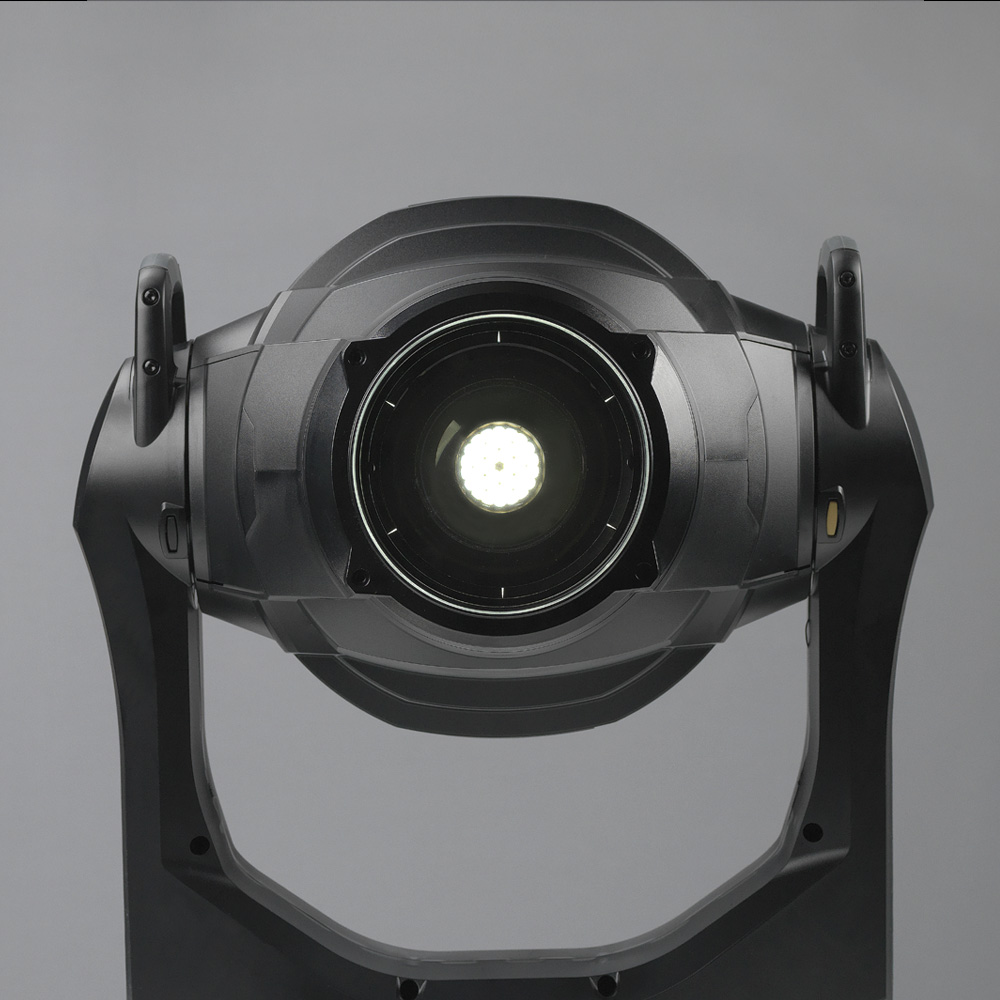

High quality cold light hard edge moving head
Specifications
Physical
Length: 452 mm (17.8 in.)
Width: 480 mm (18.9 in.) across yoke
Height:
740 mm (29.2 in.) maximum
731 mm (28.8 in.) head straight up
Weight: 31 kg (68.4 lbs.)
Minimum center-to-center distance in side-by-side installation: 700 mm (27.6 in.)
Dynamic Effects
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
Rotating gobo wheel: 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
Iris: Variable 0 - 100%
Zoom: Motorized
Color temperature control: Variable 6000 - 2700 K
Framing: Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position
Frost: Variable 0 - 100%
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control and Programming
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt
Movement control options: Tracking and vector
DMX channels: 38
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
Optics
Zoom range: 12° - 48° one-tenth peak (1:4)
Light source: 468 W custom Martin LED engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: ≥ 39,400 lumens
Fixture luminous output: 11,600 lumens
CRI (Color Rendering Index) : >80
CQS (Color Quality Scale): >80
TM-30 Rf (IES TM-30-15 Fidelity Index): >80
TM-30 Rg (IES TM-30-15 Gamut Index): >95
TLCI (Television Lighting Consistency Index): >70
CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation
Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections
AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V
Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
Power Consumption
Typical: 596 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
