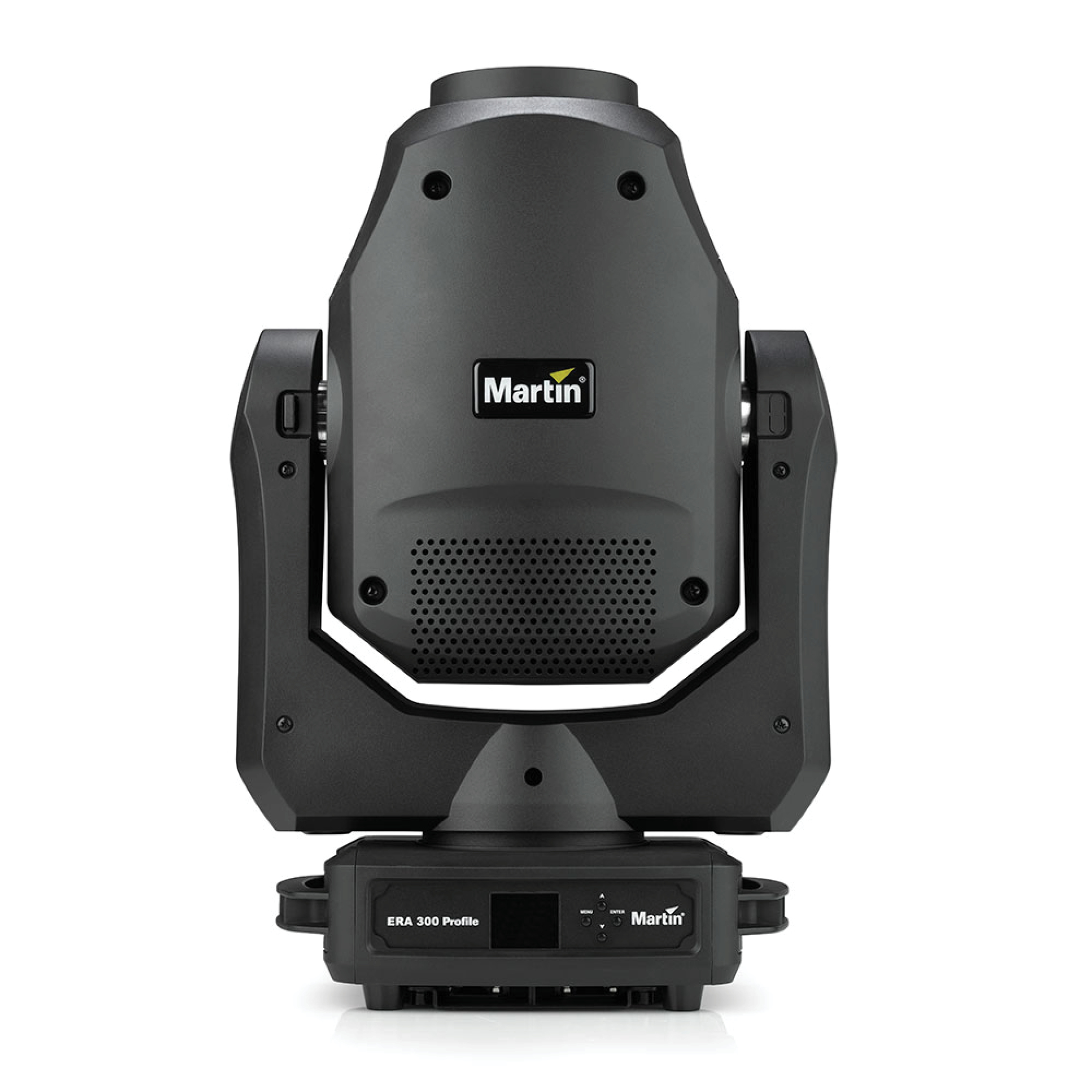

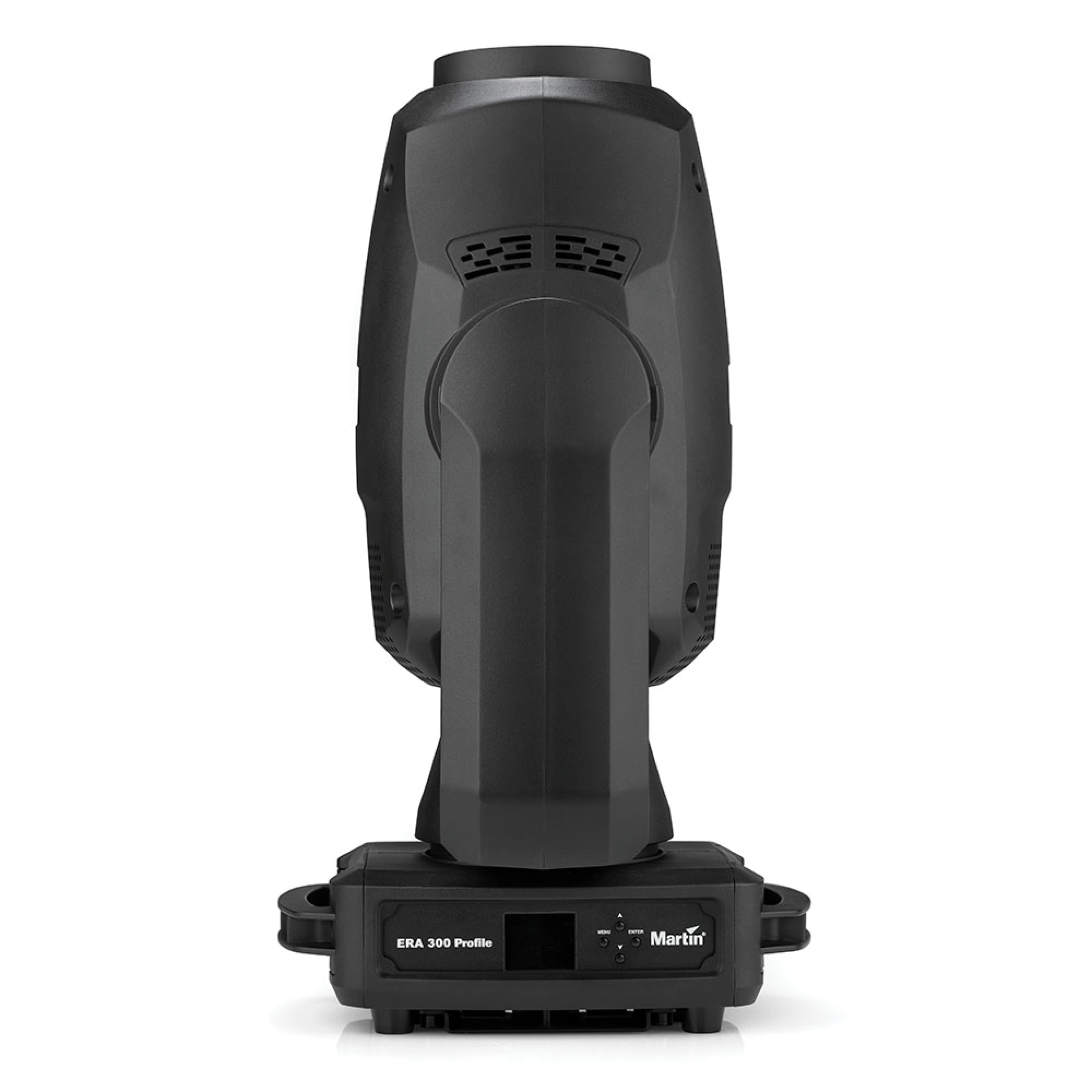

Martin ERA 300 Profile
Garantujemo najnižu cenu!
The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.
The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.
The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.
Physical
Length: 375 mm (14.8 in.)
Width: 217 mm (8.5 in.)
Height: 564 mm (22.2 in.)
Weight: 17kg (38lbs)
Dynamic Effects
Color mixing: CMY, independently variable 0-100%
Color wheel: 9 color filters plus open
Beam effects: Rotating three-facet prism
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Electronic dimming: 0 - 100%, four dimming curve options
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed
Focus: Motorized
Control and Programming
Control options: DMX

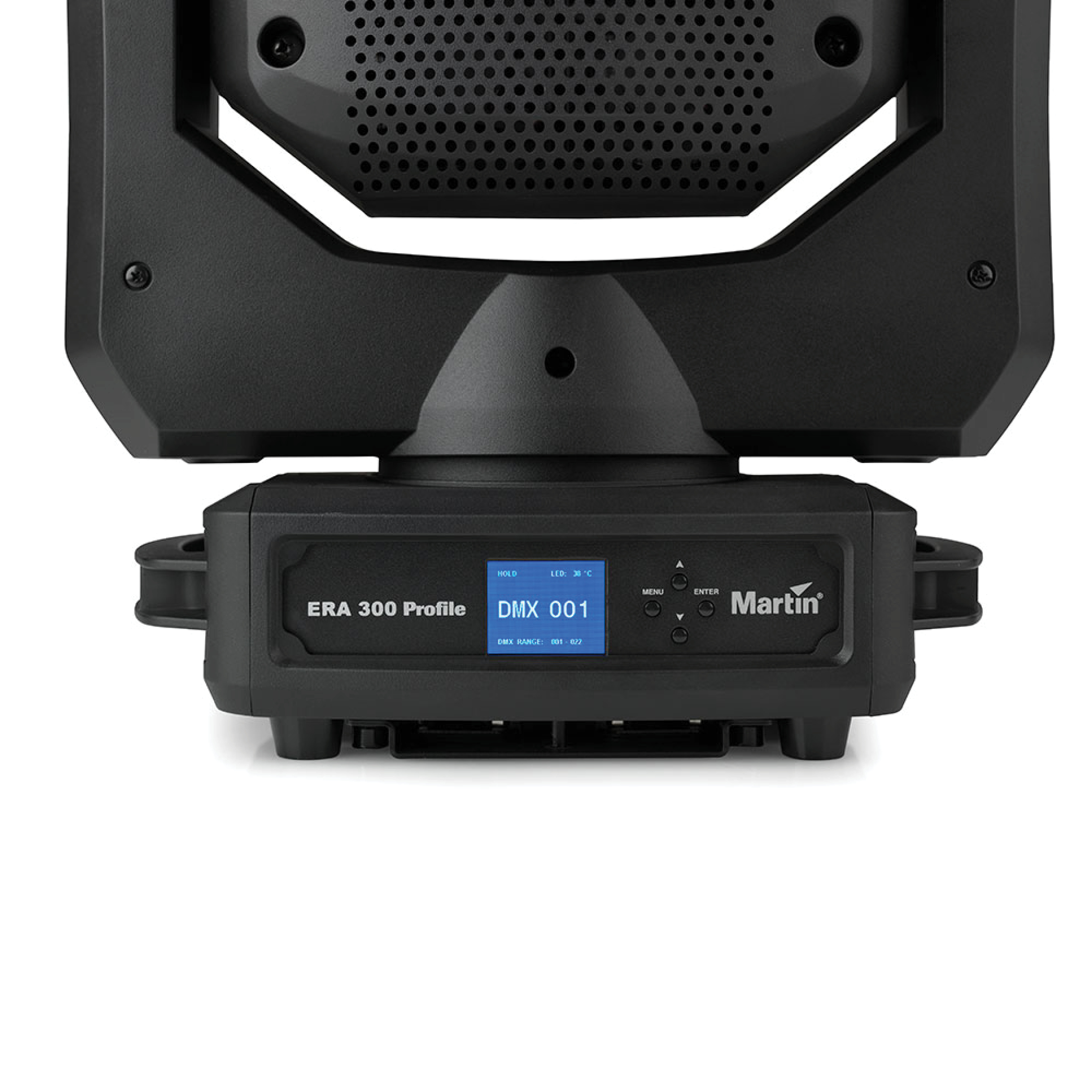

Setting and addressing: Control panel with backlit LCD display
16-bit control: Dimming, pan and tilt
DMX channels: 21
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Optics
Zoom range: 13° - 28°
Light source: 260W LED engine
Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions.
Photometric Data
Light engine luminous output: 20,000 lumens
Fixture luminous output: 9,500 lumens
CRI (Color Rendering Index) : >70
CCT: 6500 Kelvin
LED refresh rate : 1200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black/White
Protection rating: IP20
Gobos
Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter: 19.0 mm (0.75 in.)
Gobo thickness, maximum: 1.1mm borosilicate glass
Installation
Mounting points: Two quarter-turn brackets for rigging clamps
Orientation: Any
Connections
AC power in, thru: Neutrik powerCON TRUE1
DMX data in/out: 3-pin & 5-pin locking XLR
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Power Factor: 0.99 @ 120 V / 230 V
Typical current draw: 3.1 A @ 120 V , 1.6 A @ 230 V *
Power Consumption
Typical: 374 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Thermal
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 30.3 lm/W
LWR*: 559 lm/kg (250 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Included Items
Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
Omega brackets for rigging clamp attachment
Accessories
Cables, 16 A, for connection to power in chains:
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Cables, 16 A, for relaying power in chains:
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Connectors:
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
