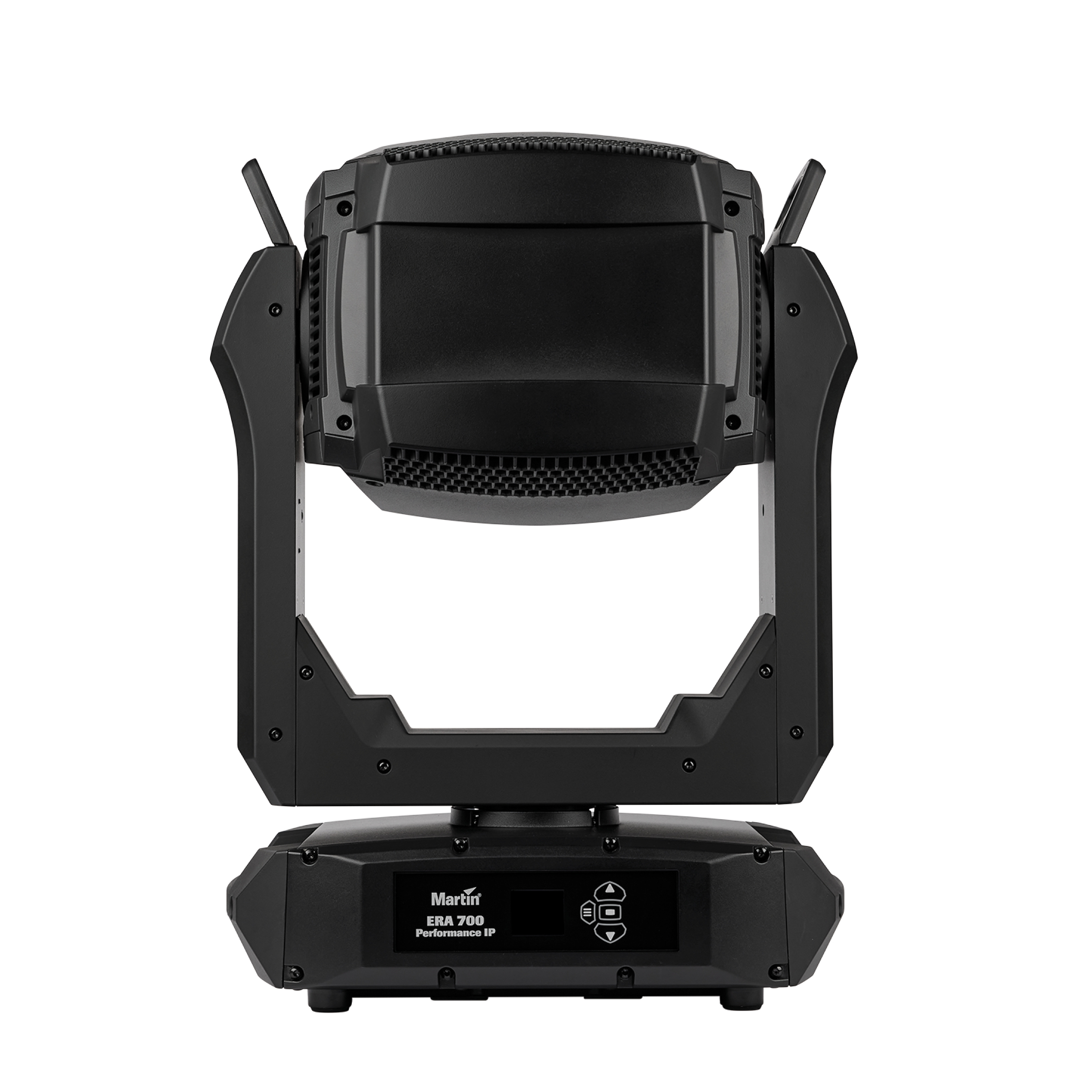

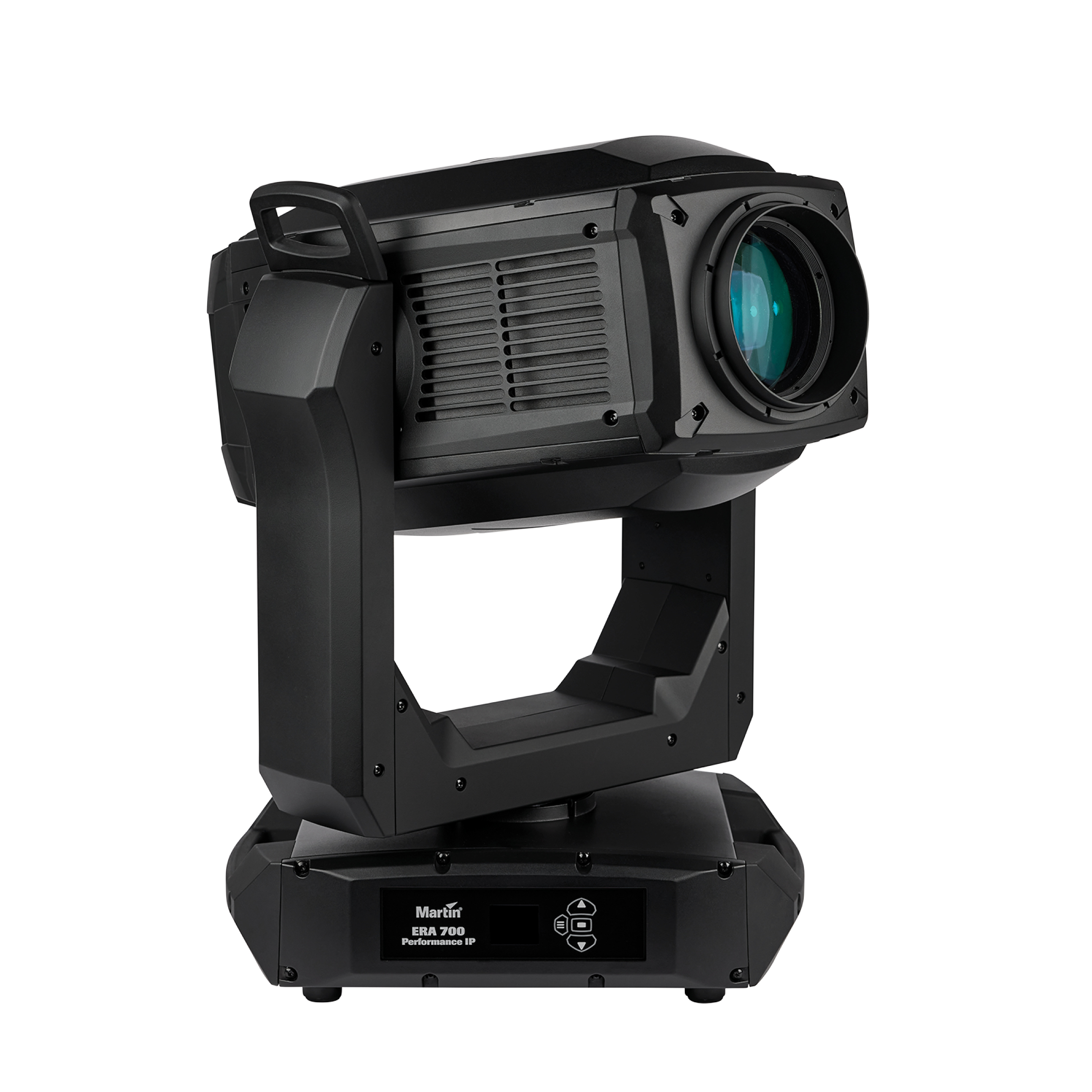

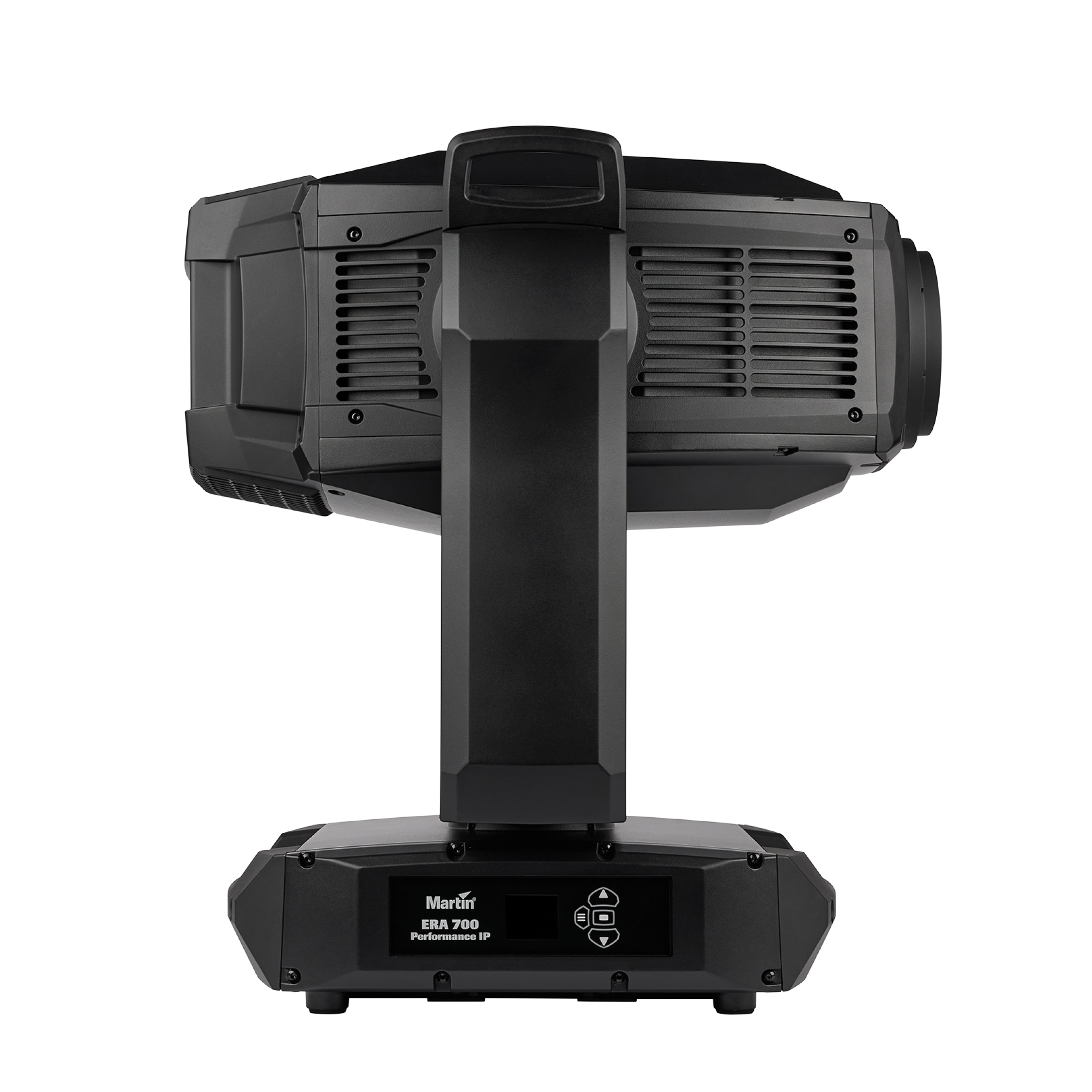

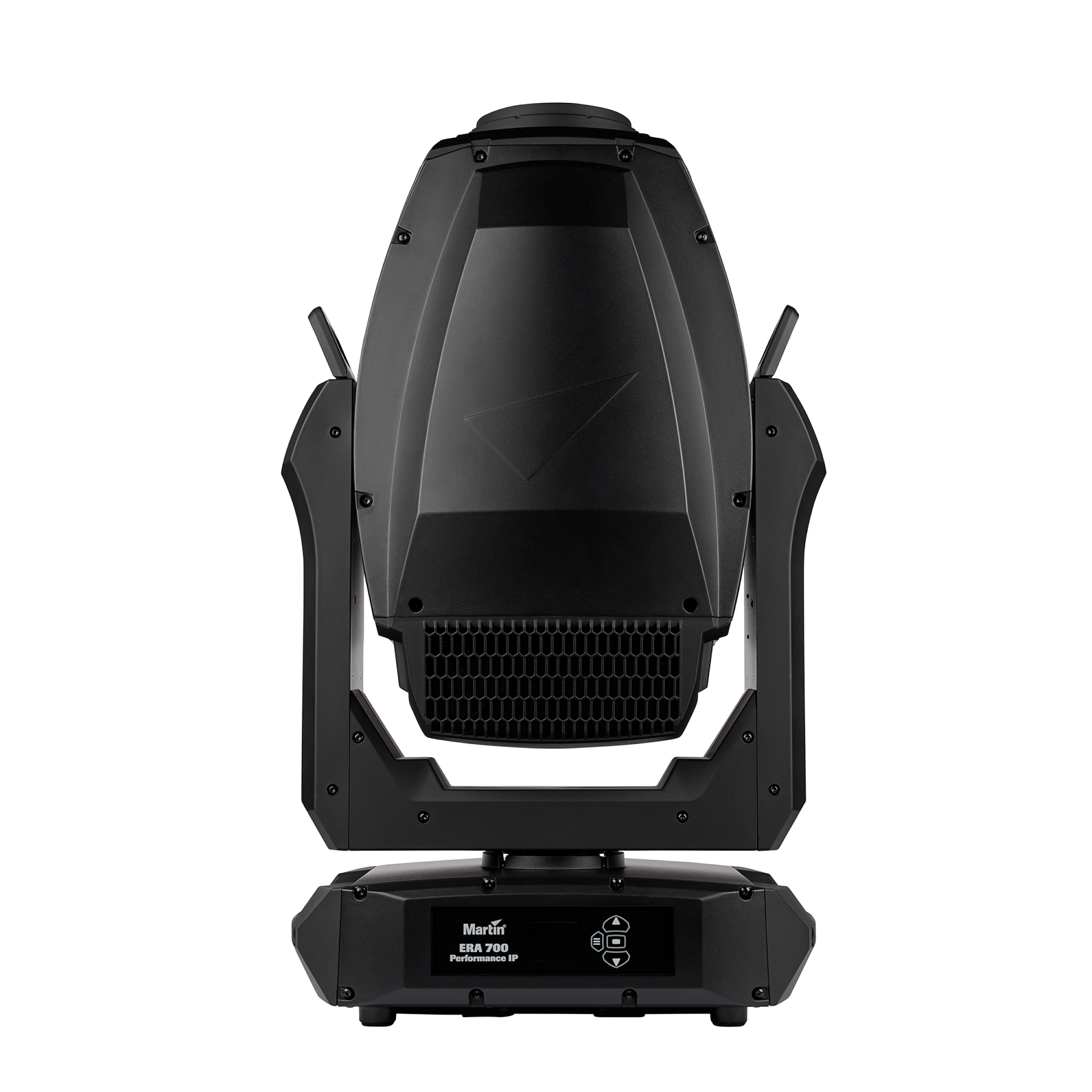

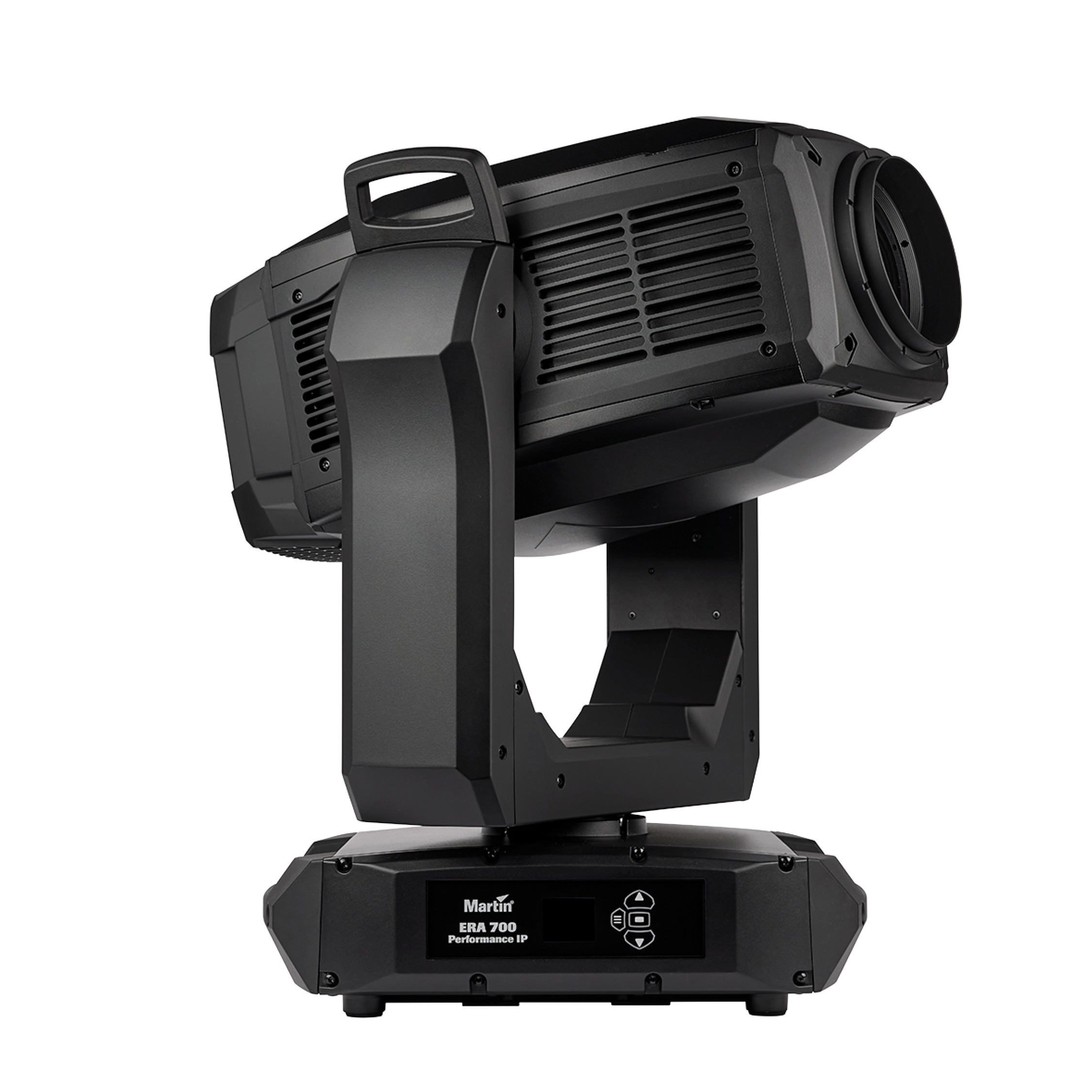

Martin ERA 700 Performance IP
Garantujemo najnižu cenu!
Martin Professional’s ERA 700 Performance IP is specially designed for permanent outdoor entertainment use and can withstand extreme environmental conditions for greater immersive lightshows. It offers a comprehensive toolkit for lighting design, including a CMYC color mixing system, full curtain framing system, dual gobo wheels, dual prisms, dual frost, animation, and a wide range of new gobo selections. Standing at only 759mm in height with an output of 26,000 lumens and weighing below 40kg, it is a reliable workhorse, delivering the perfect lumen output needed for larger outdoor shows and rental and installation applications. It is ideal for a wide range of architainment needs.
Designed around extreme environmental conditions, the ERA 700 Performance IP has the ability to work flawlessly from -20 degrees Celsius to +40 degrees Celsius, with C5M marine-grade salinity protection against harsh elements. The innovative active humidity control system maintains optimal humidity levels within the unit, preventing moisture-related issues and ensuring consistent performance.
This fixture also introduces several ground-breaking features that champion its functionality and security. It incorporates an anti-tamper box, preventing unauthorized access which also adds additional environmental protection increasing ingress protection to IP66.
Martin Professional’s ERA 700 Performance IP caters to the evolving needs of rental and installation markets. Its IP66 rating eliminates the need for outdoor protection domes, and its extensive feature set and robust design offers lighting designers and system integrators a reliable solution for long-term outdoor projects.
Physical
Weight: 39.7 kg (87.3 lbs.)
Length (head): 542 mm (21.3 in.)
Length (base): 436 mm (17.1 in.)
Width (base): 314 mm (12.3 in.)
Width (across yoke): 450 mm (17.7 in.)
Height (head straight up): 759 mm (29.8 in)
Height (maximum): 767 mm (30.2 in)
Dynamic Effects
Color mixing: CMY, independently variable 0-100%
Color wheel: 7 color filters plus open (incl, Spectral Enhancement Filter)
Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction, shake (flow)
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 8 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Color temperature control: Variable 6,500 - 2,700 K
Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
Frost: Soft frost effect and heavy frost effect
Electronic dimming: 0 - 100%, four dimming curve options
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 540°, coarse & fine control and speed
Tilt: 270°, coarse & fine control and speed
Focus: Motorized
Control and Programming
Control options: DMX, RDM, Art-Net, sACN
Protocol detection: Automatic
Setting and addressing: Control panel with backlit LCD display and battery powered operation
16-bit control: Dimming, CMY, CTO, Zoom, Focus, Framing, Gobo Rotation/Indexing, Pan and Tilt
DMX channels: Basic 42 Extended 54
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Transceiver: Opto-isolated RS-485
Optics
Front lens diameter: 120 mm (4.75 in.)
Zoom range: 5.4 to 44 (1:8)
Light source: 680 W LED engine
Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
*Manufacturer's figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output: 41,600 lumens
LED refresh rate : 3,600 Hz
Photometric Data With Spectral Enhancement Filter
Fixture luminous output: 16,420 lumens
CRI (Color Rendering Index): 90
CQS (Color Quality Scale): 88
TM-30 Rf (IES TM-30-15 Fidelity Index): 87
TM-30 Rg (IES TM-30-15 Gamut Index): 106
TLCI (Television Lighting Consistency Index): 73
CCT: 6400 K (+/- 250 K)
Peak Luminous Intensity: TBA
* All Photometric Data measured in steady state(30 minutes warm-up time) at 25°C ambient.
Photometric Data Standard
Fixture luminous output: 26,000 lumens
CRI (Color Rendering Index): 70
CQS (Color Quality Scale): 68
TM-30 Rf (IES TM-30-15 Fidelity Index): 71
TM-30 Rg (IES TM-30-15 Gamut Index): 94
TLCI (Television Lighting Consistency Index): 46
CCT: 6500 K (+/- 250 K)
Peak Luminous Intensity: 1,393,059 cd (narrow)
Construction
Housing: Recyclable high-impact flame-retardant thermoplastic and cast aluminum
Color: Black & White
Protection rating: IP 65 (IP 66 with anti-tamper box installed)
Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
Gobos
Maximum image diameter: 19 mm (0.75 in.)
Gobo material: Borofloat 33
External diameter: 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.)
Maximum gobo thickness: 1.1 mm (0.04 in.)
Coating: Speciality coating including CT correction
Installation
Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Wet locations, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections
DMX and RDM data in/out: 5-pin locking XLR
AC mains power input.: TRUE1 compatible socket, accepts TRUE1 NAC3FX-W (TOP) connector
Ethernet Art-Net, sACN in/out, including fail-safe bypass: Neutrik etherCON
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 14 A
Max leakage current: 0.43 mA
Power Factor: 0.97 @ 100 V / 120 V / 230 V / 240 V
Typical current draw: 11.1 A @ 100 V / 120 V , 3.7 A @ 200 V / 230 V / 240 V *
Power Consumption
Maximum: 990 W
Typical: 856 W *
Idle: 114 W *
Hibernation: 19 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): -20° C
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 3375 BTU/hr
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 44.3 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): .38.3 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 29.6 Lm/Watt
LWR*: .655 Lm/Kg
*LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: .EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
Anti-Tamper Environmental Protection Box
Accessories
Power input cables
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power connectors
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
T-shape omega bracket with 1/4 turn, P/N 91602008
