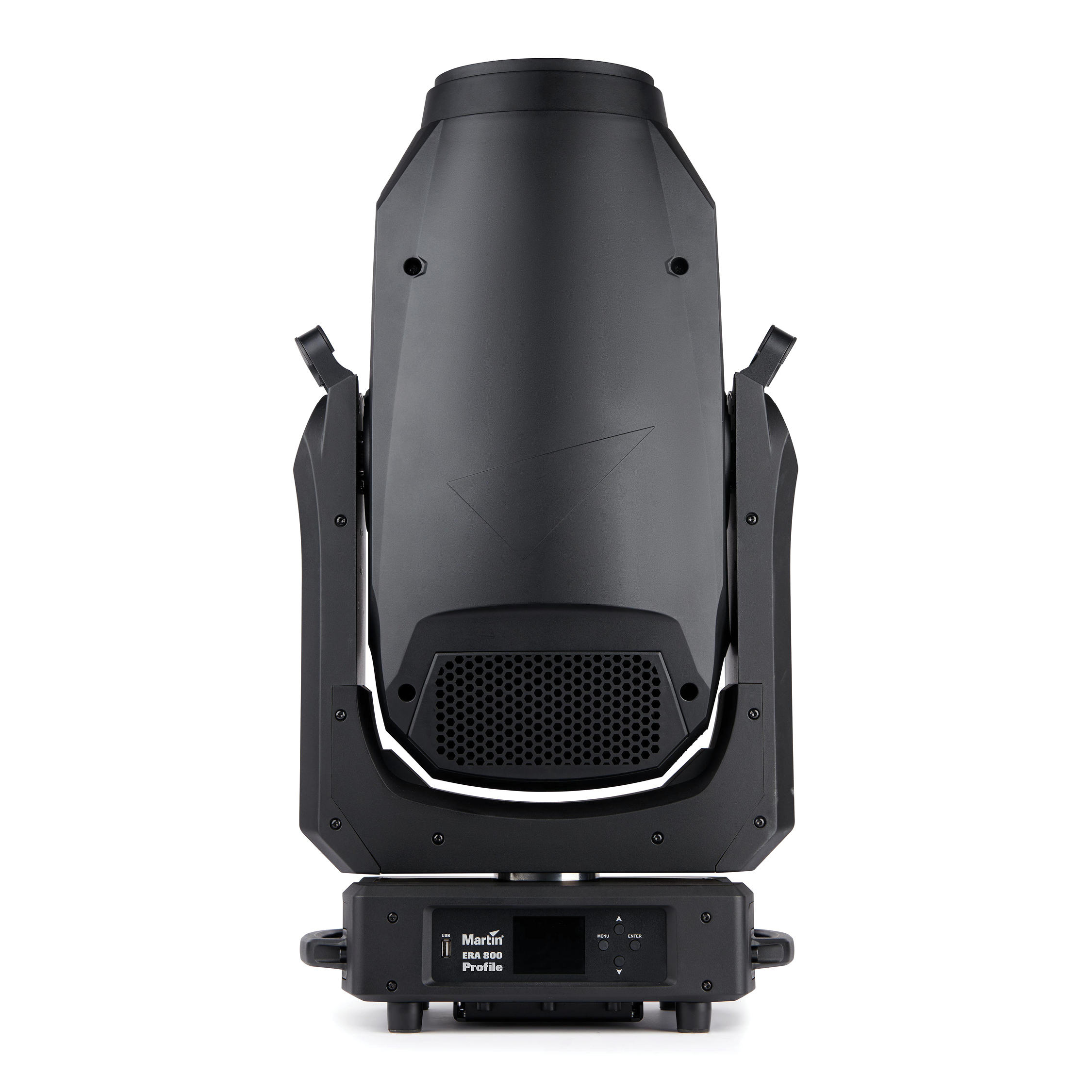

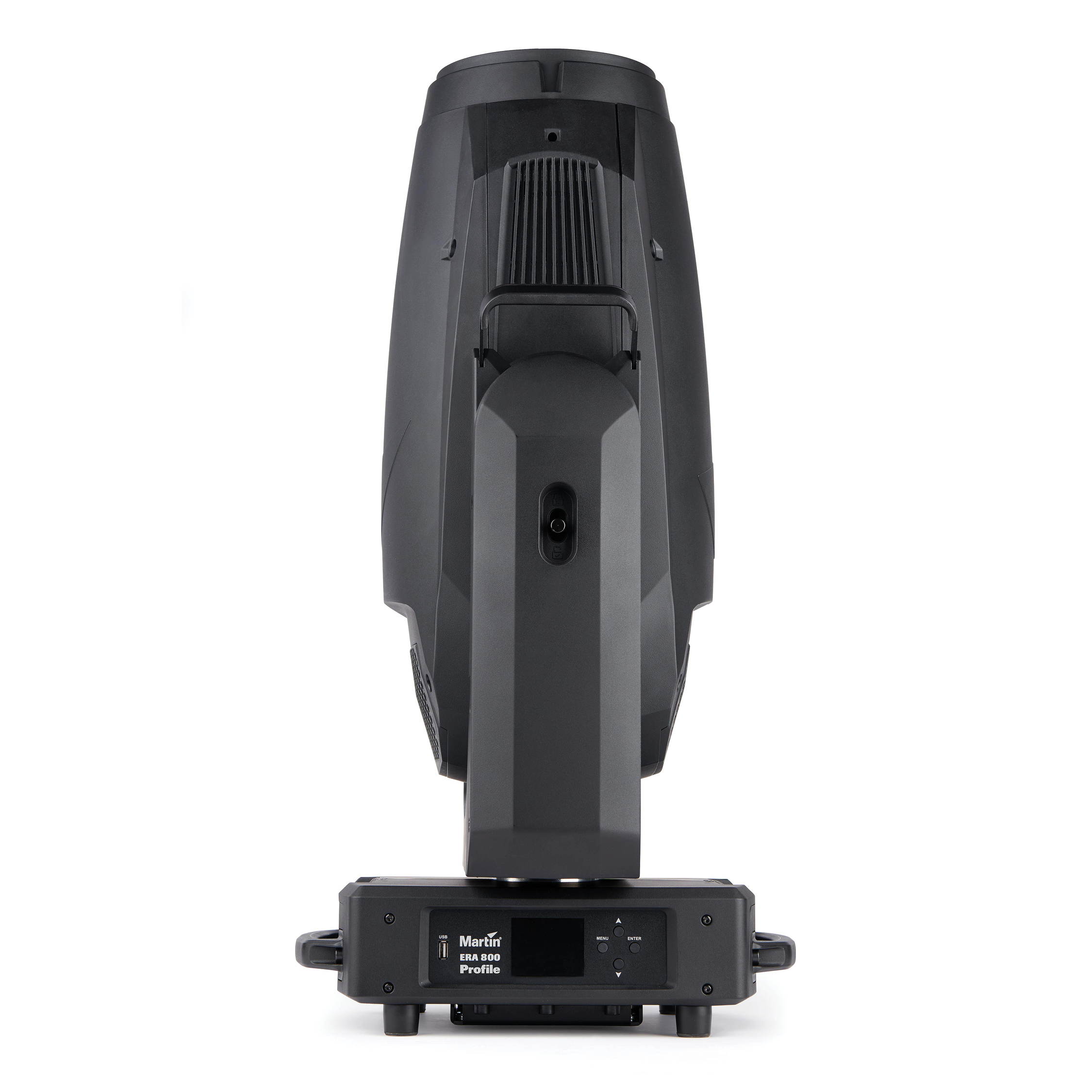

Martin ERA 800 Profile
Garantujemo najnižu cenu!
Combining a fully-featured, cost-efficient and no-nonsense fixture, the Martin ERA 800 Profile is perfect for stadium-sized entertainment and rental productions. Designed to fulfill the demand for a tour-worthy, compact, LED profile moving head with enhanced gobo load-out aimed for the largest stages, the ERA 800 Profile bundles an extremely efficient 800 W, 6,500 K LED engine that produces a powerful 34,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment and dual rotating gobo wheels plus an additional static wheel. It’s also loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prisms.
In addition to the largest concert and touring productions, the ERA 800 Profile is ideal for cruise lines, houses of worship, live TV productions, and corporate shows that require a truly versatile LED profile that offers near limitless design and usage potential.
Physical
Weight: 40.0 kg (88.2 lbs.)
Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Length (head): 608 mm (24.0 in.)
Length (base): 416 mm (16.4 in.)
Width (base): 290 mm (11.4 in.)
Width (across yoke): 431 mm (17.0 in.)
Height (head straight up): 802 mm (31.6 in.)
Height (maximum): 851 mm (33.5 in)
Dynamic Effects
Color mixing: CMY, independently variable 0-100%
Color wheel: 6 color filters plus open
Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Second rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Color temperature control: Variable 6500 - 2700 K
Prism: 2 rotating/indexing prisms (4-facet circular and 6-facet linear)
Frost: Soft frost effect and heavy frost effect
Electronic dimming: 0 - 100%, four dimming curve options
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed
Focus: Motorized
Control and Programming
Control options: DMX
Setting and addressing: Control panel with backlit LCD display
16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt
DMX channels: 36
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Optics
Front lens diameter: 160 mm (6.3 in.)
Zoom range: 7° - 56° (1:8)
Light source: 800 W LED engine
Minimum LED lifetime: 20000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions
Photometric Data
Light engine luminous output: 70,000 lumens
LED refresh rate : 3600 Hz
Standard
Fixture luminous output: 35,000 lumens
CRI (Color Rendering Index): >70
CQS (Color Quality Scale): >67
TM-30 Rf (IES TM-30-15 Fidelity Index): >65
TM-30 Rg (IES TM-30-15 Gamut Index): >93
TLCI (Television Lighting Consistency Index): >44
CCT: 6900 K (+/- 250 K)
Peak Luminous Intensity: 1,870,000 cd
With Optional CRI Boost Filter
Fixture luminous output: 25,000 lumens
CRI (Color Rendering Index): >79
CQS (Color Quality Scale): >76
TM-30 Rf (IES TM-30-15 Fidelity Index): >77
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >57
CCT: 6500 K (+/- 250 K)
Peak Luminous Intensity: 1,276,000 cd
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Gobos
Maximum image diameter: 25 mm (0.98 in.)
Gobo material: Borofloat 33
External diameter: 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.)
Maximum gobo thickness: 1.1 mm (0.04 in.)
Coating: Heavy matted aluminum
Installation
Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections
DMX and RDM data in/out: 5-pin locking XLR
AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
Typical current draw: 10.8 A @ 120 V , 5.5 A @ 230 V *
Power Consumption
Maximum: 1397 W
Typical: 1270 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)
Maximum total heat dissipation, calculated, +/- 10%: 4770 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 41.4 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.7 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 30.2 lm/W
LWR*: 875 lm/kg (397 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493
EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-3 (B) / NMB-3 (B); ICES-5 (B) / NMB-5 (B)
Australia/NZ: RCM
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
Accessories
Conversion kits
Framing Module (converts ERA 800 Profile to Performance): P/N 5125961-00
Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): P/N 5131799-00
Optical accessories
CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614059
Power input cables
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power relay cables, 16 A
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power connectors
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
T-shape omega bracket with 1/4 turn, PN 91602008
