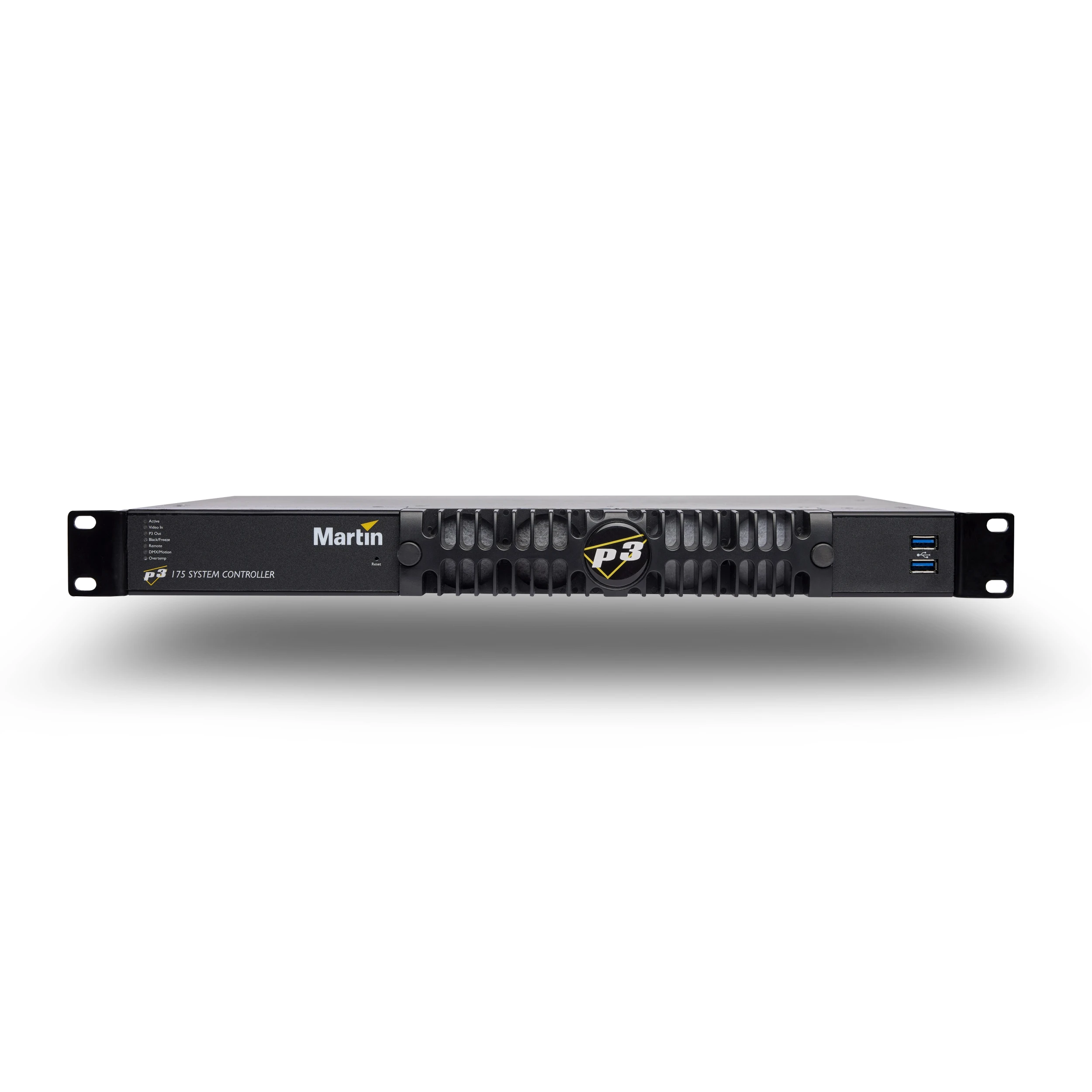

MARTIN P3-175 SYSTEM CONTROLLER
Šifra:
939.120,00 rsd
782.600,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Next-Generation P3 System Controller for Easy Mapping and Control
Specifications
Physical
Width: 482.6 mm (19.0 in.)
Height: 44.45 mm (1.75 in.) (rackmount 1U)
Depth: 343.0 mm (13.5 in.)
Weight: 3.5 kg (7.7 lbs.)
Control/User Interface
User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
Device Status: Status indication LEDs
HDMI Video Input
Standard: HDMI 1.4a
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps
Scan: Progressive & Interlaced
EDID: Customizable via user interface
Colour Depth: 8/10/12-bit
Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020
NDI Video Input
Standard: NDI
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps
Video Processing
Controller pixel processing capacity: 520,000 pixels (expandable by adding P3-175s)*
Controller fixture capacity: 2,000 fixtures (expandable by adding P3-175s)*
Maximum workspace area: 8,847,360 pixels
Maximum active capture area: 2,073,600 pixels
System processing depth: 16 bits per color (48 bits per pixel)
System latency: 2 frames
Latency between first and last fixture: None
Scaling: Yes, global and mixed pixel pitch
Gamma Curve Control: Yes, adjustable
Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
Mapping: Real-time
Colour Temperature Control: Real-time
Colour Space Control: Real-time
Preview: Real-time (incoming video & mapping onto fixtures)
*See also P3 System Controller Capacity Info Note on Downloads page
DMX Controls
Up to 256 universes of Art-Net or sACN input*
Control of intensity and colours
Control of colour temperature
Merge video input with DMX controls towards fixtures
Cross-fade or toggle between video and DMX controls
Freeze, blackout or activate testpatterns on video engine
Recall video presets (video settings, fixture positions and more)
*See also P3 System Controller Capacity Info Note on Downloads page
Motion Controls
One universe of Art-Net, sACN or Kinesys K2 input*
Compatible with Kinesys K2/Vector, Tait Navigator and others
Control fixture or group position on video canvas
Control fixture or group rotation on video canvas
*See also P3 System Controller Capacity Info Note on Downloads page
P3 Signal Protocol
Signal type: Gigabit Ethernet
Protocol : Proprietary Martin P3
Hot pluggable: Yes, electrically isolated at all connections
Cable type: Ethernet, shielded, Cat 5e or better
Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch
Construction
Housing: Steel and aluminium
Color: Matte black
Protection rating: IP20
Installation
Mounting: 19" rackmount (1U) or free-standing
Location: Indoor or outdoor protected from elements
Orientation: Horizontal only

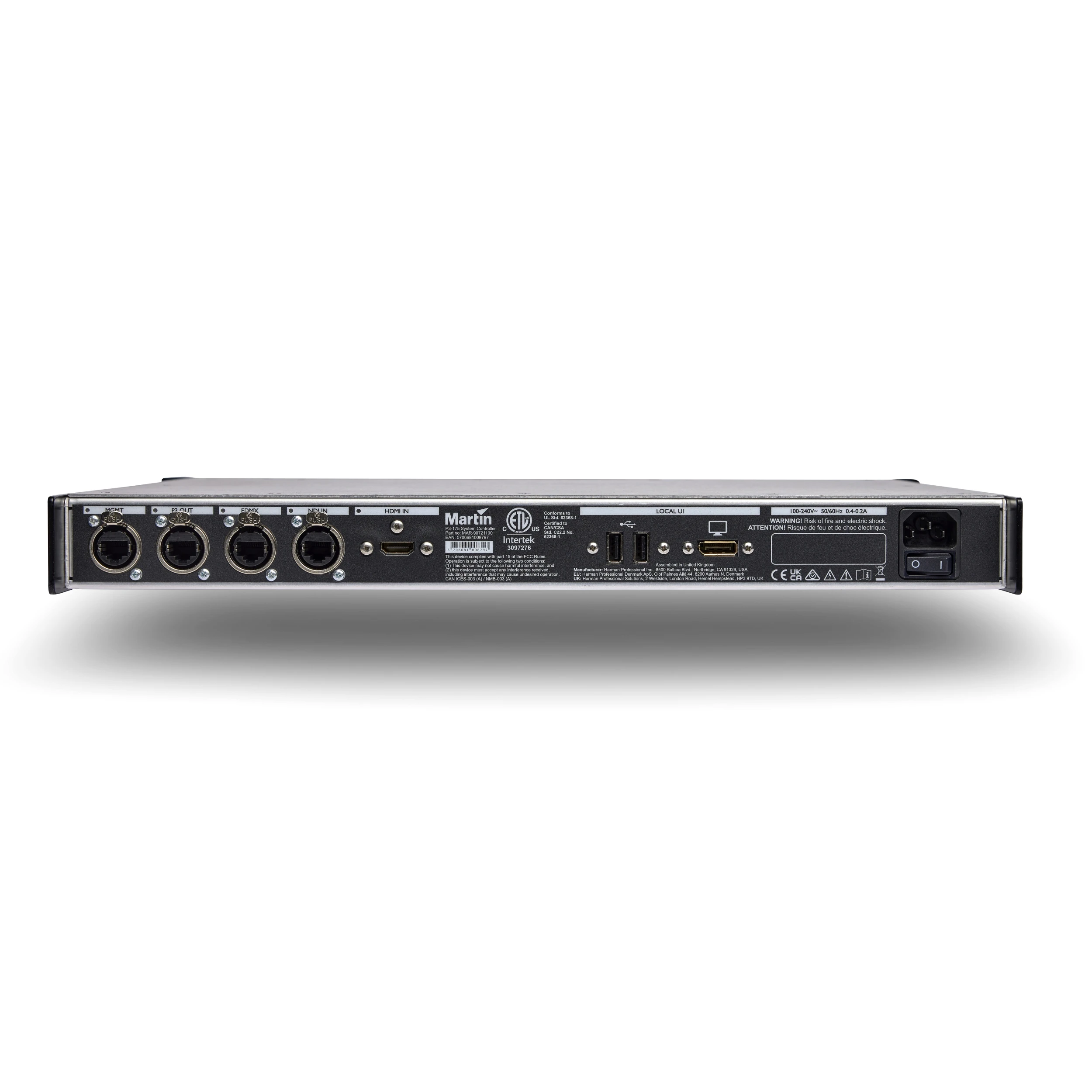

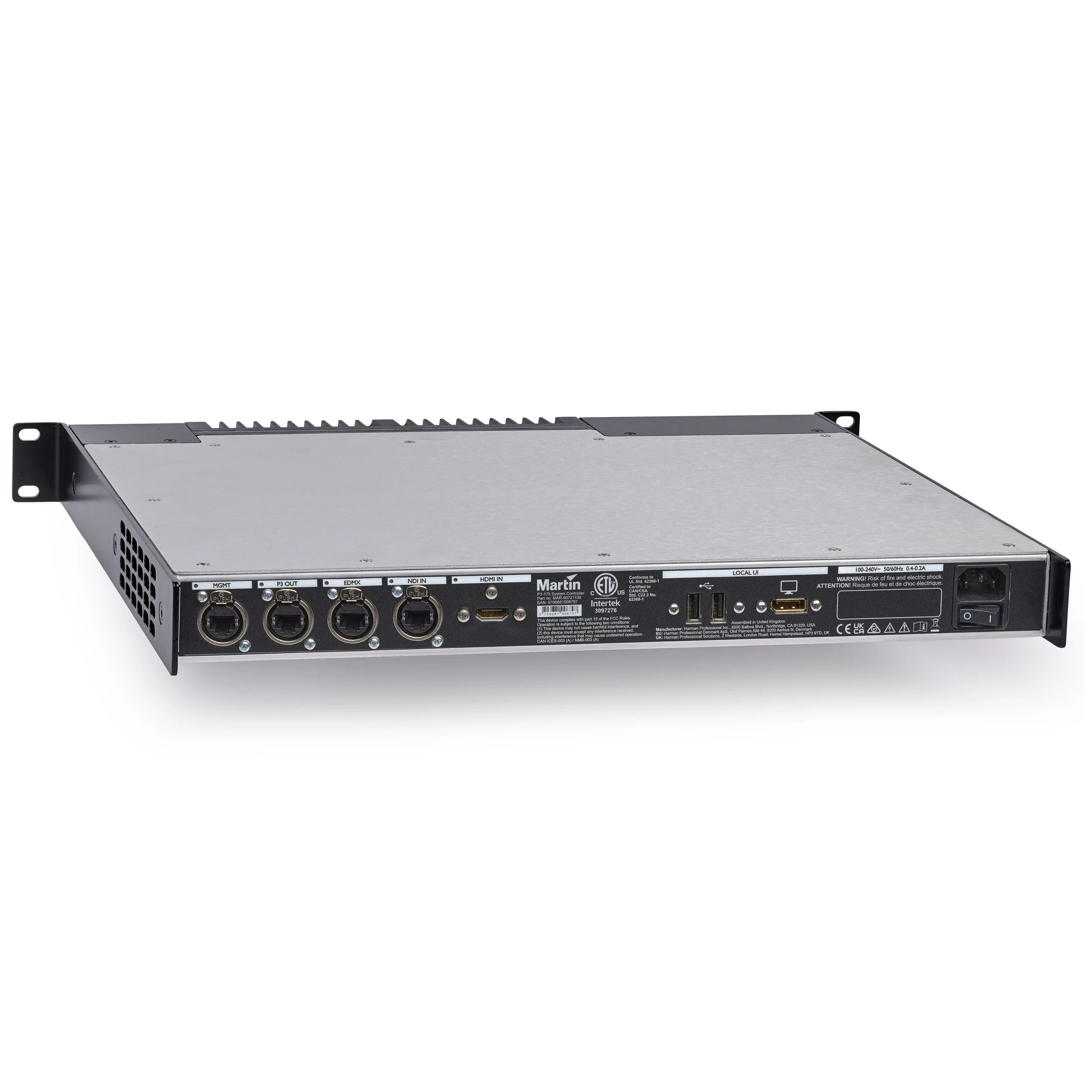

Connections
Power input: IEC socket with integrated power switch
P3 data in/out: 1x etherCON socket (100/1000Mbit)
EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
NDI Video In: 1x etherCON socket (100/1000Mbit)
HDMI Video In: HDMI 1.4a
Peripherals and USB memory devices: 2 x USB 2.0 ports and 2x USB 3.0 ports
User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 28 A
Typical earth-leakage current: 0.50 mA
Power Factor: 0.97 @ 100 V / 120 V , 0.91 @ 208 V / 230 V / 240 V
Max current draw: 0.65 A @ 100 V / 120 V , 0.35 A @ 208 V / 230 V / 240 V
Typical current draw: 0.28 A @ 100 V / 120 V , 0.15 A @ 208 V / 230 V / 240 V *
Power Consumption
Maximum: 65 W
Typical: 28 W *
Idle: 21 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: machine running at full P3, Art-Net/sACN and Video Input capacity.
Idle: no showfile loaded.
Thermal
Cooling: Filtered forced air (temperature-controlled fans)
Maximum ambient temperature (Ta max.): 50° C (122° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Typical heat dissipation (calculated, +/- 10%): 96 BTU/hr.
