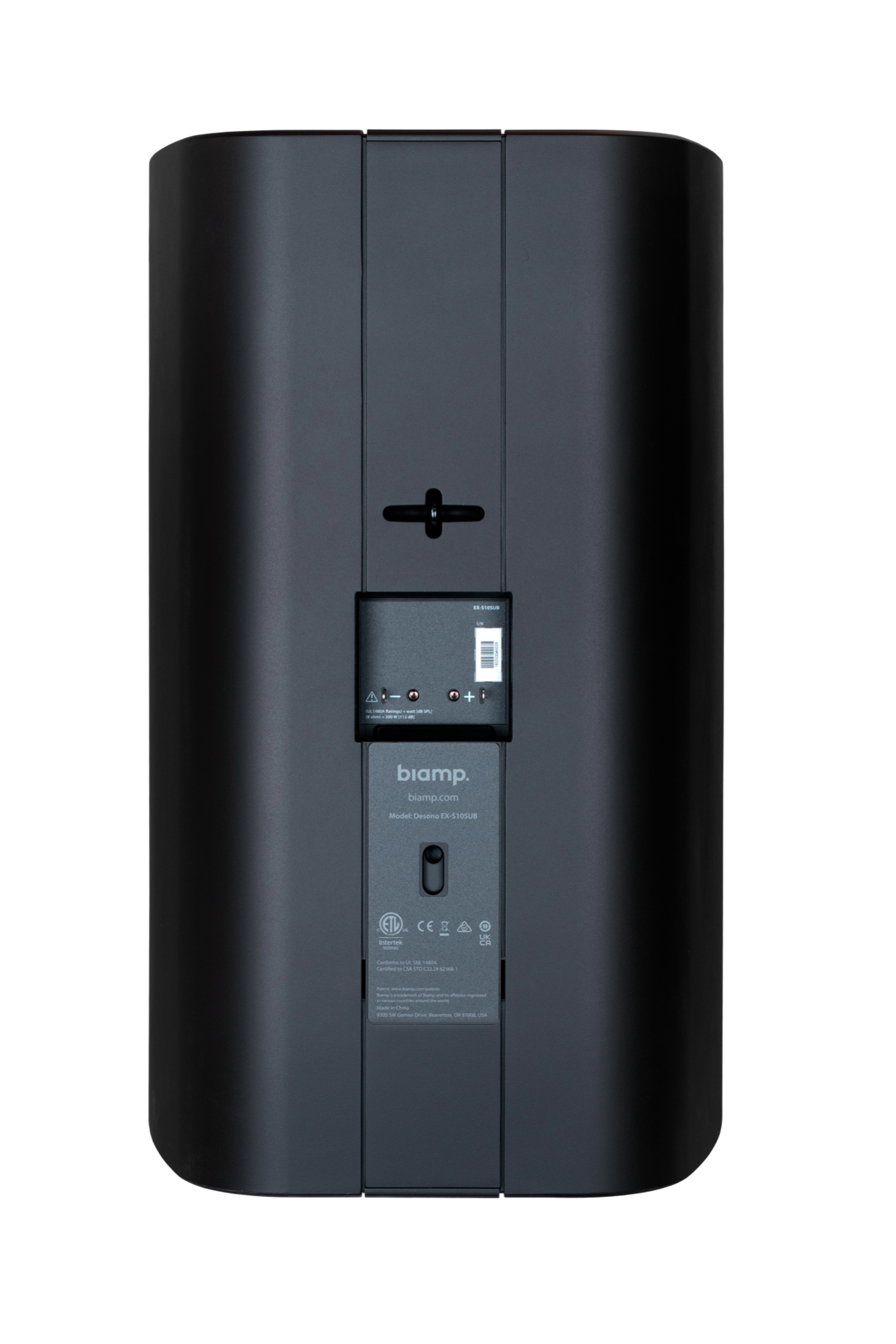

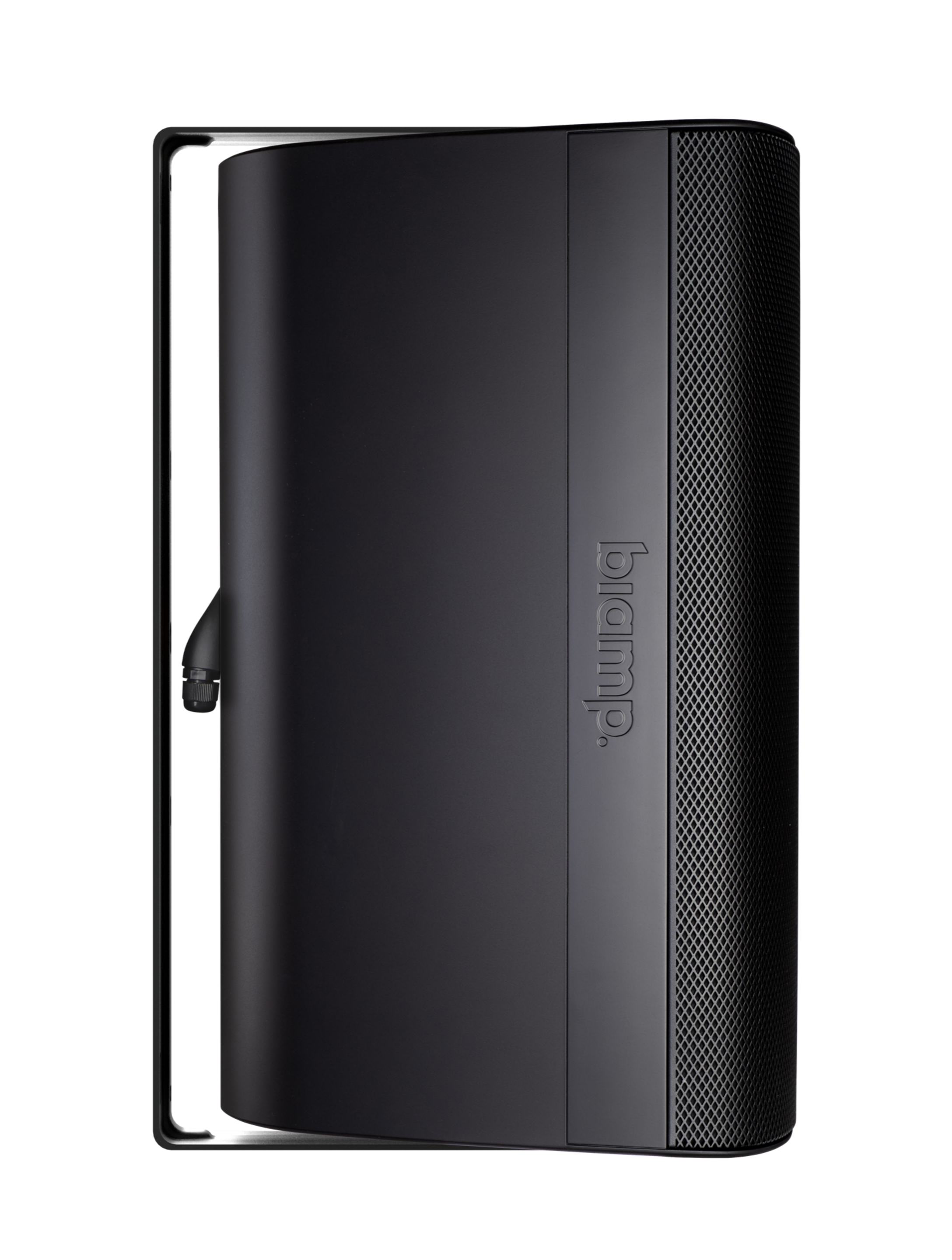

Biamp EX S10 SUB UB
Šifra: 19750
10-inch, subwoofer, surface mount, indoor/outdoor, black loudspeaker; 8-ohm operation, included indexing U-bracket and weather cover.
Key Features
Certified for use with Zoom software
Exceptional audio clarity with discreet styling
Easy to install with two mounting options
Low frequency boost for distributed applications
ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
| GENERAL | |
| Height | 20.8 inches (529 mm) |
| Width | 12.2 inches (310 mm) |
| Depth | 12.3 inches (312 mm) |
| Weight | 28.26 lbs (12.8 kg) |
| Finish | RAL Color: Black RAL 9017 |
| Material | Grille: Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth. Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover |
| Mounting | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Accessories | CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit |
| Recommended Amplifiers | 300 W - 600 W, 8 Ω (49 V - 69 V) |
| ENVIRONMENTAL | |
| Operating Environment | Indoor/Outdoor |
| POWER | |
| Power | 300W Cont. 1200W Peak |
| LOUDSPEAKER | |
| Loudspeaker Type | 10-inch surface mount subwoofer |
| Operating Mode | Passive, low impedance |
| Operating Range | 38 Hz - 140 kHz |
| Beamwidth | Omnidirectional |
| Transducers | LF 1 x 10 inches (250 mm) treated paper cone |
| Sensitivity | (1W/1m) 89 dB |
| Signal Processing | Required Processing: 35 Hz, 18 dB high-pass filter; DSP preset |
| Drivers | LF 1 x 10 inches |
| AUDIO | |
| Impedance | 8Ω |
| Maximum Output | 112 dB 118 dB Peak (UXO 80 Hz) |
| CERTIFIED SOLUTIONS | |
| Zoom | Zoom Certified |
| COMPLIANCE | |
| Certifications | ETL listed to comply with UL 1480A CSA STD C22.2# 62368-1 |
| Environmental Ratings | IP54 per IEC 60529 IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist) IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
