Recommended Amplifier: 100w RMS
Long Term Power: 50w
Short Term Power: 200w
Transformer: 15-25-40-50W
Sensitivity (1W/1m): 98dB
Recommended HP filter: 50Hz - 24dB Oct.

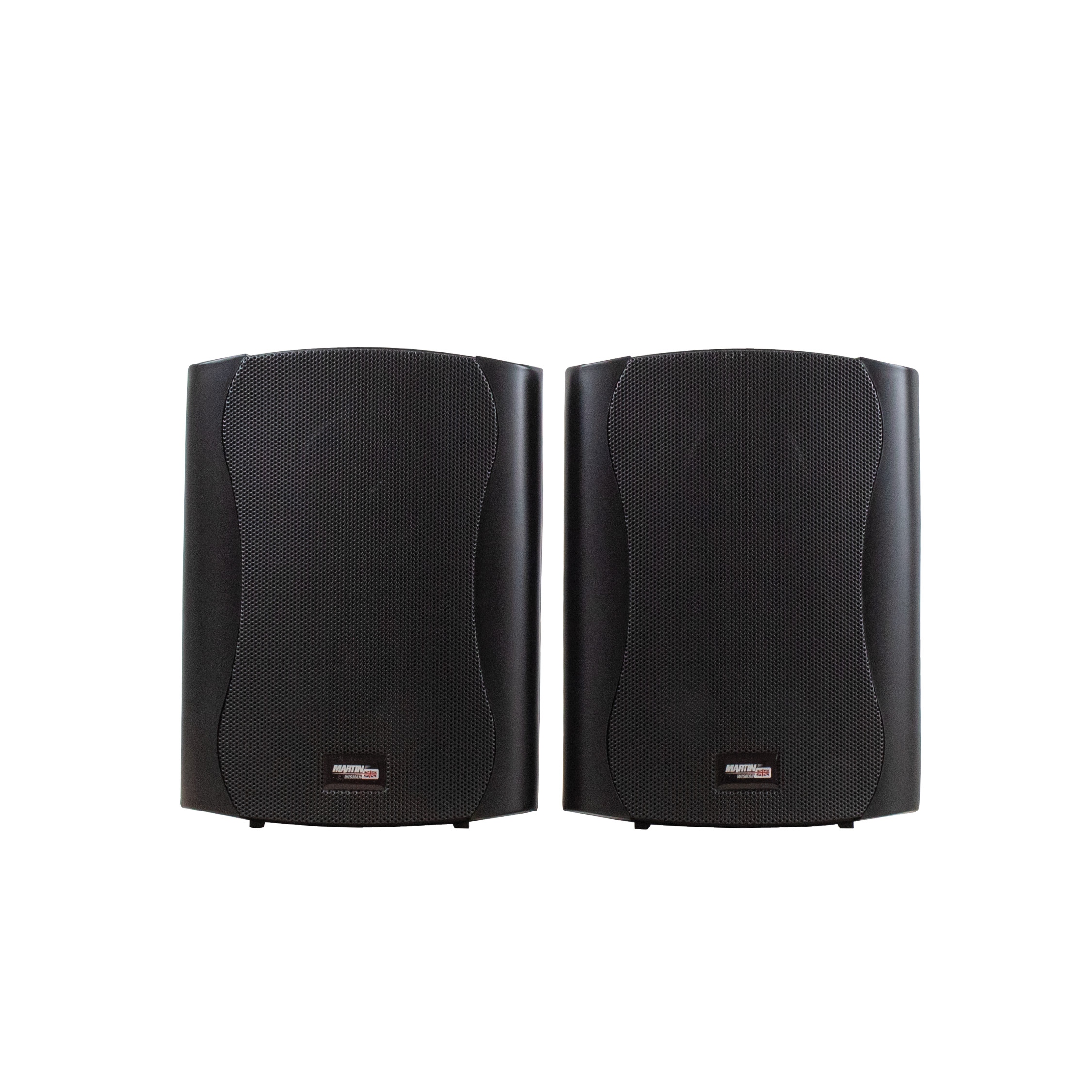

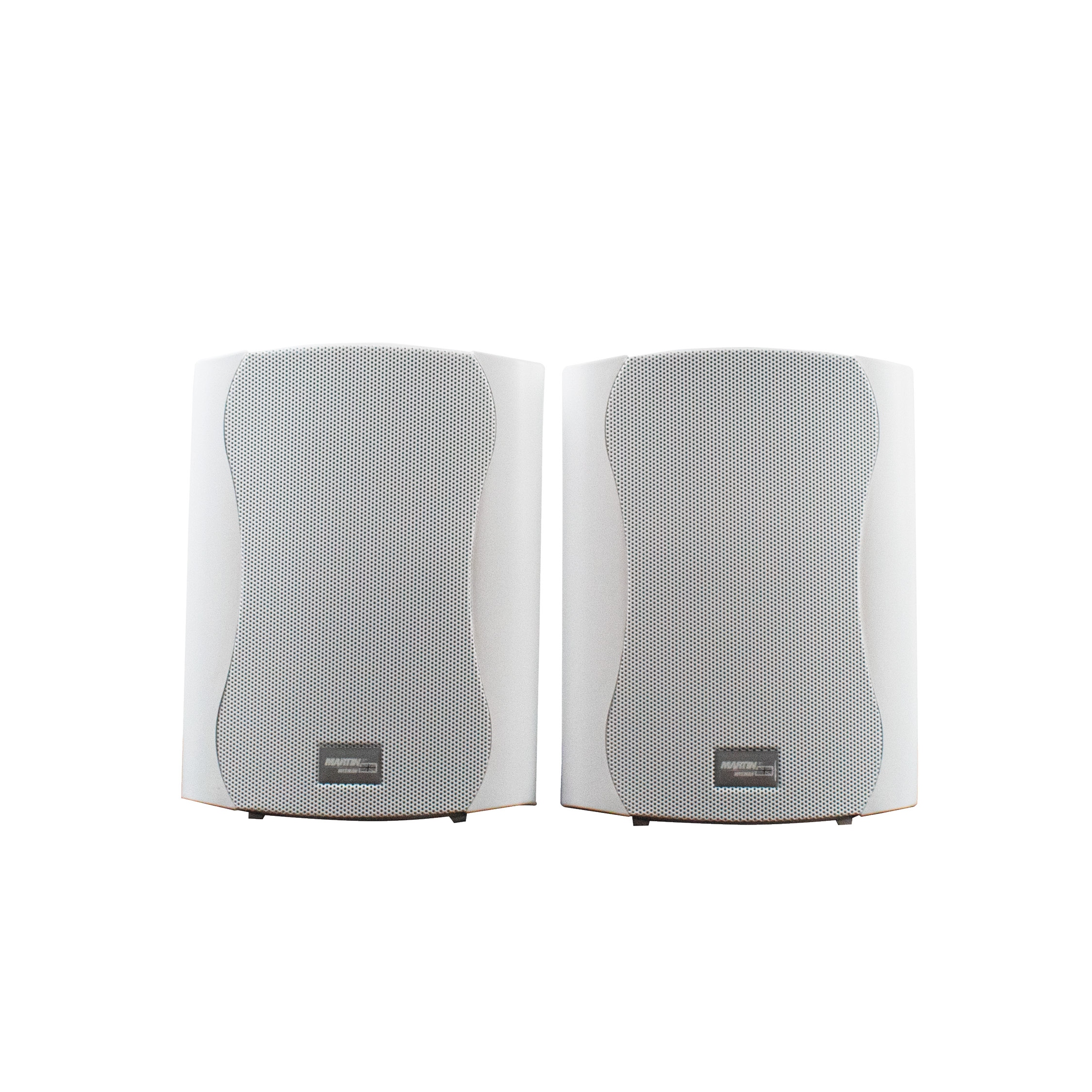

PROJECT sound speakers have been created and designed in Italy. Their exclusive design characterises a complete new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high quality sound throughout. The PROJECT range utilises a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable . Connection to the loudspeakers is via plug in “Euroblock” connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

KEY FEATURES

Bracket included
Grey or black ABS loudspeaker
2 way bass reflex
5” woofer and 0.75” tweeter
100V line transformer(Multi Tap)
Frequency response @-10dB 85Hz-20kHz
Dispersion HxV 100°x100°
High-pass filter recommended 55Hz-24dB/oct
30W/60W nominal/maximum power
50W/100W nominal/maximum power
Setting: 15/25/40/50W/8ohm
Sensitivity 89dB
Max SPL 109dB
Specifications:

Code: 29255 BT / 32369 WHT
Configuration: 2 way
Recommended amplifier: 100 W RMS
Long Term power: 50 W
Short term power: 200 W
Transformer: 15-25-40-50 V
Nominal impedance: 8 ohm
Frequency response: 50Hz - 20KHz -6dB
Low Frequency woofer: 5 inch
Sensitivity (@1W/1m): 98 dB
Maximum SPL cont/peak: 109 dB
Dispersion: 100x100 HxV
Recommended HP filter: 50Hz-24dBoct
Input connector: Euroblock
Net Dimension (WxHxD): 168x240x180 mm/inch
