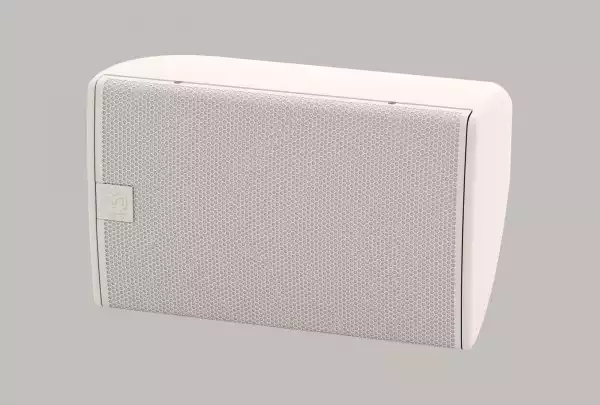

The CDD8 is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.
Martin Audio CDD8
The loudspeaker shall be a passive, two-way system ultilising Coaxial Differential Dispersion technology. Its transducers shall consist of a reflex-loaded 8” low frequency driver and a coaxially-mounted 1” exit high frequency compression driver loaded by a static waveguide that merges with moving waveguides added to the cone of the low frequency driver to define the HF horn geometry.
The coaxial driver shall be user-rotatable to enable vertical or horizontal operation as required by the application. Horizontal dispersion shall vary from 110° to 80° and vertical dispersion shall be 60°. The on-axis frequency response shall be 70Hz-20kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 123dB peak calculated at 1 metre. Power handling shall be 200W AES, 800W peak. Rated impedance shall be 8 ohms.
The input connector shall be a low-profile 13A push-lock type. Low and high frequency sections shall be integrated by an internal 2.3kHz passive network. For optimal the loudspeaker shall be operated in conjunction with a dedicated electronic controller.
The enclosure shall be made from rigid composite material and fitted with threaded inserts for wall and ceiling mounting. The drivers shall be protected by a perforated steel grille with scrim cloth backing.
Dimensions (W x H x D) shall be 256mm x 410mm x 252mm (10.1in x 16.1in x 9.9in). Weight shall be 9.5kg (21lbs).
The loudspeaker shall be the Martin Audio CDD8.
Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard colour options
Applications
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 70Hz-20kHz ± 3dB, -10dB @ 55Hz |
| DRIVER | LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 200W AES, 800W peak |
| SENSITIVITY (8) | 94dB |
| MAXIMUM SPL (9) | 117dB continuous, 123dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110˚-80˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2.3kHz passive |
| ENCLOSURE | 14 litre, composite material |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 13A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M6 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins |
| WEIGHT | 9.5kg (21lbs) |
