Biamp - Apart ZONE 4R

Šifra: 374
Na stanju
16.680,00 rsd
13.900,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Količina

Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Ugrinovački Put 10n, Zemun
  • Centralni magacin
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

ZONE4R

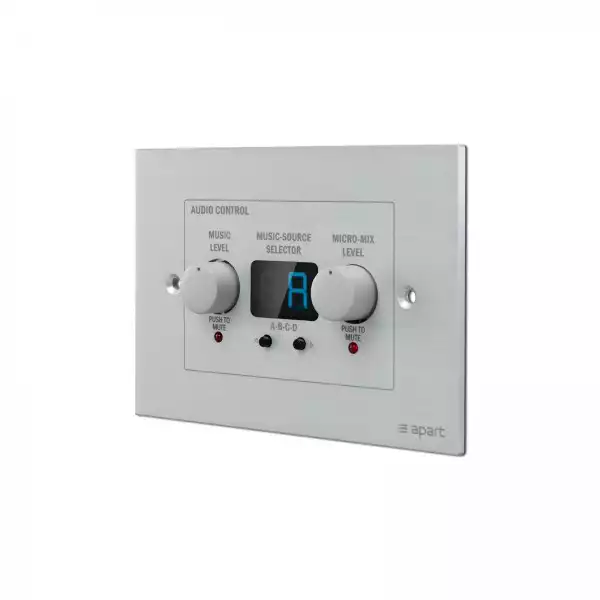

ZONE4 wall control panel for music level & source select

ZONE4R is a remote control panel for the ZONE4, Apart's multifunctional 4-zone pre-amplifier. The control panel offers music level control, source selection and microphone mix level control. A clear digital display makes it easy to monitor the functioning of the unit.

The remote panels are easy to install, and are connected to the ZONE4 by a standard CAT-5 cable (or higher). Both T-568A and T-568B cable terminations can be used. The maximum approved CAT5 cable length is 100m per zone, according to circumstances. Mounting screws are included. A build-in box (BBi1) and surface mounted back box (BB1) is available.

The maximum ZONE4R control panels connected to a single ZONE 4 pre-amplifier is 8 pieces in any configuration (e.g. 2 panels x 4 zones or 8 panels x 1 zone or any other combination with a total of 8 panels). You can connect multiple ZONE4R units to the ZONE4 main unit using the RJ45 split hub.

The remote panels are easy to install, and are connected to the ZONE4 by a standard CAT-5 cable (or higher). Both T-568A and T-568B cable terminations can be used. The maximum approved CAT5 cable length is 100m per zone, according to circumstances. Mounting screws are included. A build-in box (BBi1) and surface mounted back box (BB1) is available.

The maximum ZONE4R control panels connected to a single ZONE 4 pre-amplifier is 8 pieces in any configuration (e.g. 2 panels x 4 zones or 8 panels x 1 zone or any other combination with a total of 8 panels). You can connect multiple ZONE4R units to the ZONE4 main unit using the RJ45 split hub.

Each controller has its unique network address. Please note that the ZONE4R panels are unique to the Apart ZONE4 four-zone pre amplifier and can't be used for controlling another pre-amplifier. ZONE4R cannot be linked to a PC and is not network compatible!

Adressing the control to a zone is very easy: by pushing the music volume and microphone volume buttons for 5 seconds, a zone indication will appear on the display. Use the source selection buttons to assign the remote control to the zone you want. After 5 seconds, the remote control can be operated.

Sophisticated but yet affordable: this remote control has all basic controls, is easy to install and easy to use. The combination with the ZONE4 pre-amplifier gives you the competitive edge to tackle even the most daunting challenges!



display 2 digit LED display backlight No
supported main unit ZONE4 programmable functions No
addressing Software connector type euroblock 4-pole
max. cable 2.5 mm² max. cable length 100 m
power type Phantom inputs No
cut-out dimensions 70 x 55 mm width 114 mm
height 80 mm depth 40 mm
Net weight product (kg) 0,14
