MARTIN WISMAN EVI 200

Šifra: 7007
Na stanju
Regularna cena:
67.080,00 rsd
39.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
47.880,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 19.200,00 rsd
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Količina

Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Ugrinovački Put 10n, Zemun
  • Svetogorska 9, Beograd
  • Centralni magacin
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

Multi-Voice Alarm Panel (with SD Card) - 30 zone



Multi-Voice Alarm Panel (with SD Card) - 30 zone

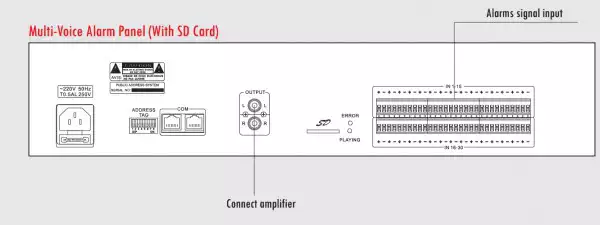

Connections diagram



The EVI 200 is a multi-voice alarm controller suitable for high capacity zone system.It includes 30 zone fire alarm interfaces, alarm matrix and voice message player, it can broadcast 3 voice messages as alert, EVAC and clear to help people been safely evacuated.

The alarm modes can be all zones, different voice alarm in separate zone, group zones and neighboring zones. In this way, the pre-set zone could be evacuated, while these neighboring zones also could be altered.

The SD card slot on rear panel is used to read SD memory card, where different voice message files could be downloaded. The file name and zone number are automatically matching with each other.

The voice alarm system could be expanded to 300 zones, its dipswitch as ID address could be easily distinguished by the controller. The dual RCA audio output is provided to link to other fire alarm equipments. 2 RJ45 communication ports is used cascade another unit or controller. Front panel's LED is used to display the ID address. Each 30 zones' select buttons and state indicators are on the front panel. An overall volume control is provided.

The zone number and voice message number are automatically accordingly matched.



Features

* Multi voice alarm controller

* Built-in alarm interface, alarm matrix and message generator

* Different voice message alarm in different zones

* All zones, group zones, neighboring zones and separate zone alarm modes

   one each units and expandable to 300 zones

* 2G SD memory card to download voice alarm message



Optional

* DC 24V

* Panel with/without handhold

Specifications

Model

EVI-200

Power Supply

~110V/60Hz or ~230V/50Hz

Power Consum

15W

Communication Protocol

RS422

Communication Input

RJ45

Communication

4800bps

Dimension

484x302x88mm

Weight

5Kg

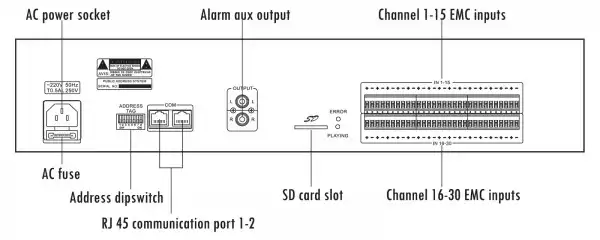

Rear panel
