CM 6 SF


Type : dual cone 6.5"
Rated Power RMS : 6 W
Music Power RMS :10 W
Sound Pressure Level (SPL) 1w/1m93 dB
Maximum SPL : 102 dB
Loudspeaker impedance : 8 Ohm
Transfo power taps : 1,5 - 3 - 6 W
6.66k - 3.33k - 1.66k
Frequency Range : 70 Hz - 18 kHz
Dispersion : 1 kHz:180°
Dispersion : 4 kHz: 50°
Dimensions :
Cut out : 205 mm
Outside : 217 mm
Depth : 148 mm
Weight : 2.4 Kg

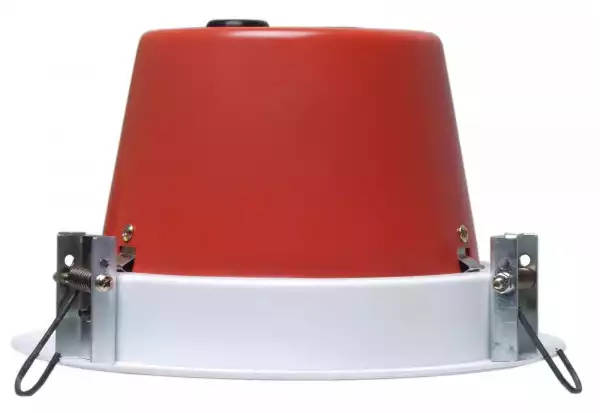

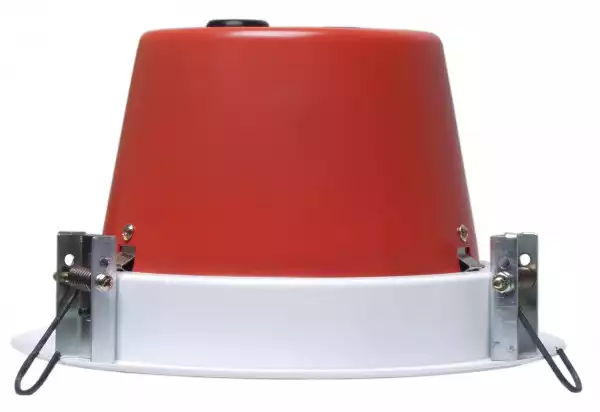

The Apart CM6SF is a dual-cone metal built-in speaker with a metal fire dome. The loudspeaker is provided with a ceramic connector and thermal fuse. This makes the CM6SF extremely suitable for evacuation purposes. The CM6SF is in confirmity with the European legislation.
Further, the CM6S is provided with a high quality 6 Watt 100 Volt transformer, with different power tappings. It makes the CM6SF very suitable for the distribution of microphone calls and BGM.
The loudspeaker is easy to install. First you built-in the metal ring. Easy fixable by 3 springs. Afterwards the loudspeaker chassis fits into the metal ring. The loudspeaker has a modern and unobstrusive design.
The standard colour is white. From 12 pieces on, the loudspeaker can be painted optionally in any other RAL colour (Ref.: CM-PAINT).
This speaker is also available without metal fire dome. Order reference CM6S
Optionally : mounting plate to brace ceiling tiles for CM types : CMCP8
