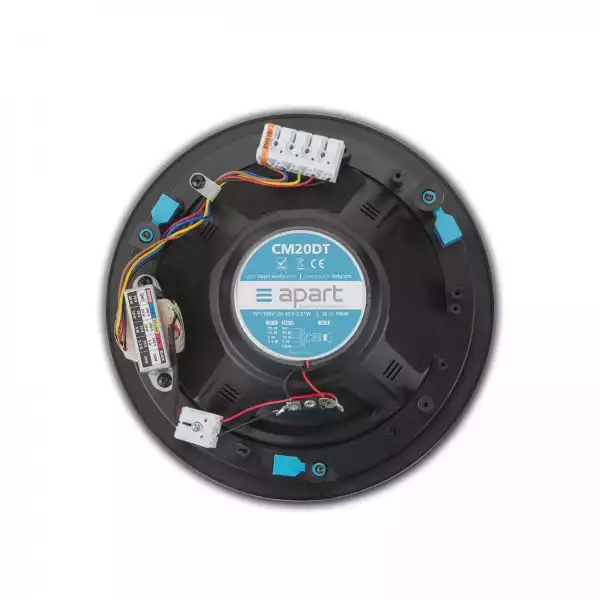

The CM20DT 6.5” two-way built-in loudspeaker can be used in 16 ohms or 70/100 volt modes. The high-quality 70/100 volt transformer is equipped with an easy tapping sticker with clear colour indication. The transformer colours are aligned with the cables connecting the Apart Quick Fit connector, a handy installer connector via push terminal. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. The paintable thin edge grille makes CM20DT the ultimate loudspeaker for design interior integration.

Specifications

• Loudspeaker system: 2-way
• Woofer size: 6.5inch
• Woofer cone material: Polypropylene
• Tweeter size: 1inch
• Mounting system: 3 screws
• 100V transformer power taps: 20 - 10 - 5watts
• 70V transformer power taps: 20 - 10 - 5 - 2.5watts
• Impedance: 16ohms
• Low impedance dynamic power: 60watts
• SPL 1W/1m: 86 dB
• Max SPL 1m: 104 dB
• Frequency response: 60 - 20K/Hz
• Main construction material: ABS plastic
• Grille main material: Steel
• IP rating: 50
• Applicable low impedance: Yes
• Applicable in 100V: Yes
• Vertical dispersion angle 1000 Hz: 180°
• Outside diameter: 210mm
• Depth: 80mm
• Cutout: 186mm
• Net weight product: 1.24kg
