The CM3T is a stylish small built-in 70 / 100 Volt loudspeaker. Thanks to its halogen-spot size, it can be integrated into any interior style. It is ideal for speech and backgroundmusic in quiet areas, toilets, cloakrooms,….

The speaker has a full metal frame and a coated dual paper cone for the lowest distortion and increased resistance against moisture.

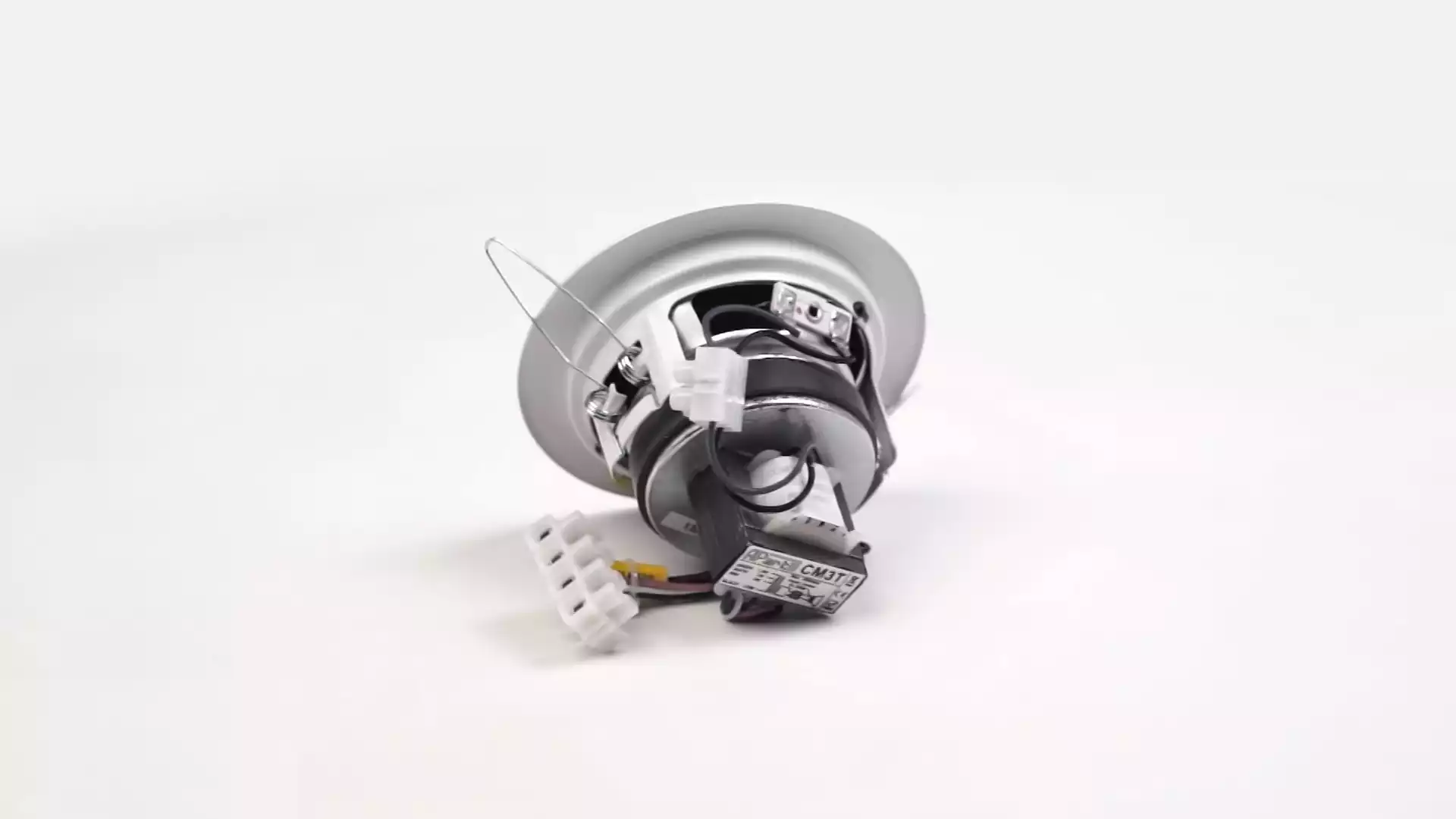

The CM3T is easy to install thanks to its simple, quick mounting system (2 spring clamps).

The versatile CM3T ceiling mount speaker now comes with the addition of the 70 / 100 volt connection, an elegant and stylish Apart removable logo and a redesigned tapping sticker for easy install.

The CM3T loudspeakers can be painted in any colour.

outside diameter 105 mm depth 74 mm
cutout 85 mm installation grip range 1 - 15 mm
loudspeaker system dual cone woofer size 3 inch
woofer cone material coated paper mounting system 2 springs

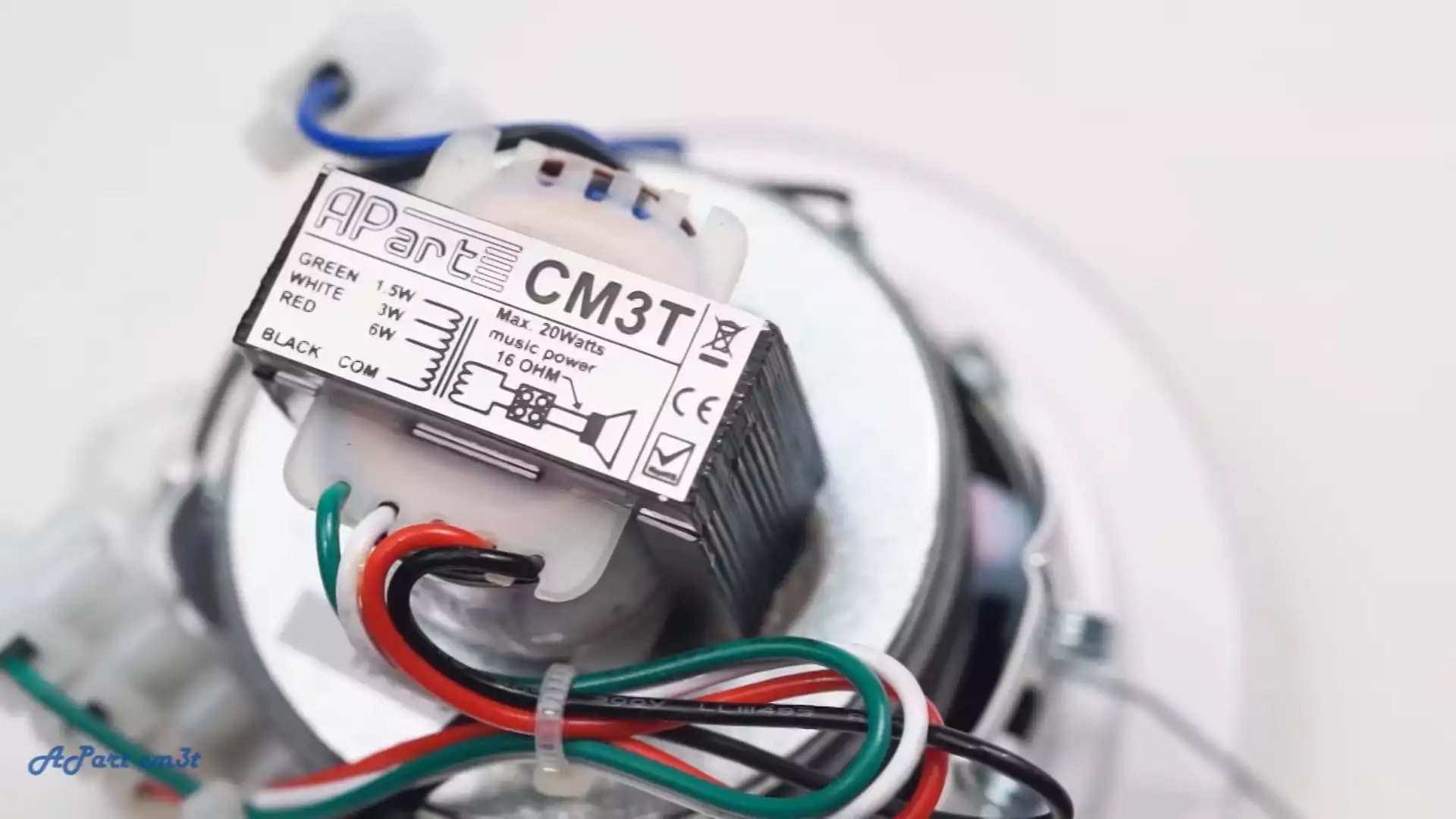

100V transformer power taps 6 - 3 - 1.5 watts 70V transformer power taps 6 - 3 - 1.5 - 0.75 watts
impedance 16 ohms low impedance dynamic power 20 watts
low impedance RMS power 10 watts SPL 1W/1m 87 dB
max SPL 1m 99 dB frequency response 120 - 18K Hz
main construction material steel grille main material aluminium
IP rating 50 applicable low impedance yes
applicable in 100V yes Vertical dispersion angle 1000 Hz 180°
closest RAL colour (subject to deviations) RAL9010 (W) / RAL9011 (BL) Net weight product 0.35 kg
