E10ADXLR TA3F connector for the PS418D preamp (either phantom power or battery)

Features

• Professional headworn vocal microphone
• Especially designed for hands-free microphone applications
• Low-profile design, with adjustable band to properly position the microphone
• E10ATQG is for use with wireless systems

Application

• Vocal
• Dancer
• Drummer
• Guitar player

Type: Back electret, Ø9.7 mm (Ø0.38")
Polar Pattern: Cardioid



Frequency Response: 50-15,000 Hz




Low Frequency Filter: E10ADXLR 80Hz, 12 dB/oct/(PS418D)
Sensitivity:
                E10ATQG -36 dBV/Pa (15.8 mV)
                E10AXLR  -46 dBV/Pa (5 mV)
                E10ADXLR Phantom: -44 dB (6.31 mV);Battery: -45 dB (5.6 mV)
Output Impedance:  200 Ω
                              EA0ADXLR Phantom: 200 Ω; Battery: 600 Ω
Minimun Load Impedance: 1,000 Ω
                                       E10ADXLR Phantom:1,000 Ω;Battery:2,000 Ω
S/N Ratio: E10AXLR 72 dB
                E10ADXLR Phantom: 72 dB; Battery: 73 dB
Equivalent Output Noise: E10AXLR 22 dB
                                    E10ADXLR  Phantom: 22 dB; Battery: 21 dB
Max. SPL: E10AXLR 145 dB SPL
               E10ADXLR Phantom:134 dB SPL;Battery:128 dB SPL
Dynamic Range: E10AXLR 125 dB SPL
                        E10ADXLR  Phantom:112 dB;Battery:107 dB
Power Requirements: E10ATQG 1.5~9V DC
                               E10AXLR 12~52V DC, 3.5 mA
                               E10ADXLR Phantom: 12~52V DC, 3.5 mA;Battery: 1.5VDC AA/UM3
Finish: Black
Connector: E10ATQG TA4F, 1.5-meter cable
                E10AXLR TA3F, 1.5-meter cable
                E10ADXLR TA3F, 1.5-meter cable

Dimensions: Width: 166 mm (6.5");Gooseneck: 100 mm (3.94");
                   Microphone: Ø12.5 mm (Ø0.5")
                   E10AXLR PS418S: Ø21 × 106 mm (Ø0.83" × 4.18")
                   E10ADXLR PS418D: H × W × D 84 × 63 × 22.5 mm (3.3" × 2.48" × 0.89")
Net Weight: Microphone:40 g (1.4 oz);
                  PS418S: 118 g (4.2 oz)(Only E10AXLR);
                  PS418D: 245 g (8.6 oz)(Only E10ADXLR)

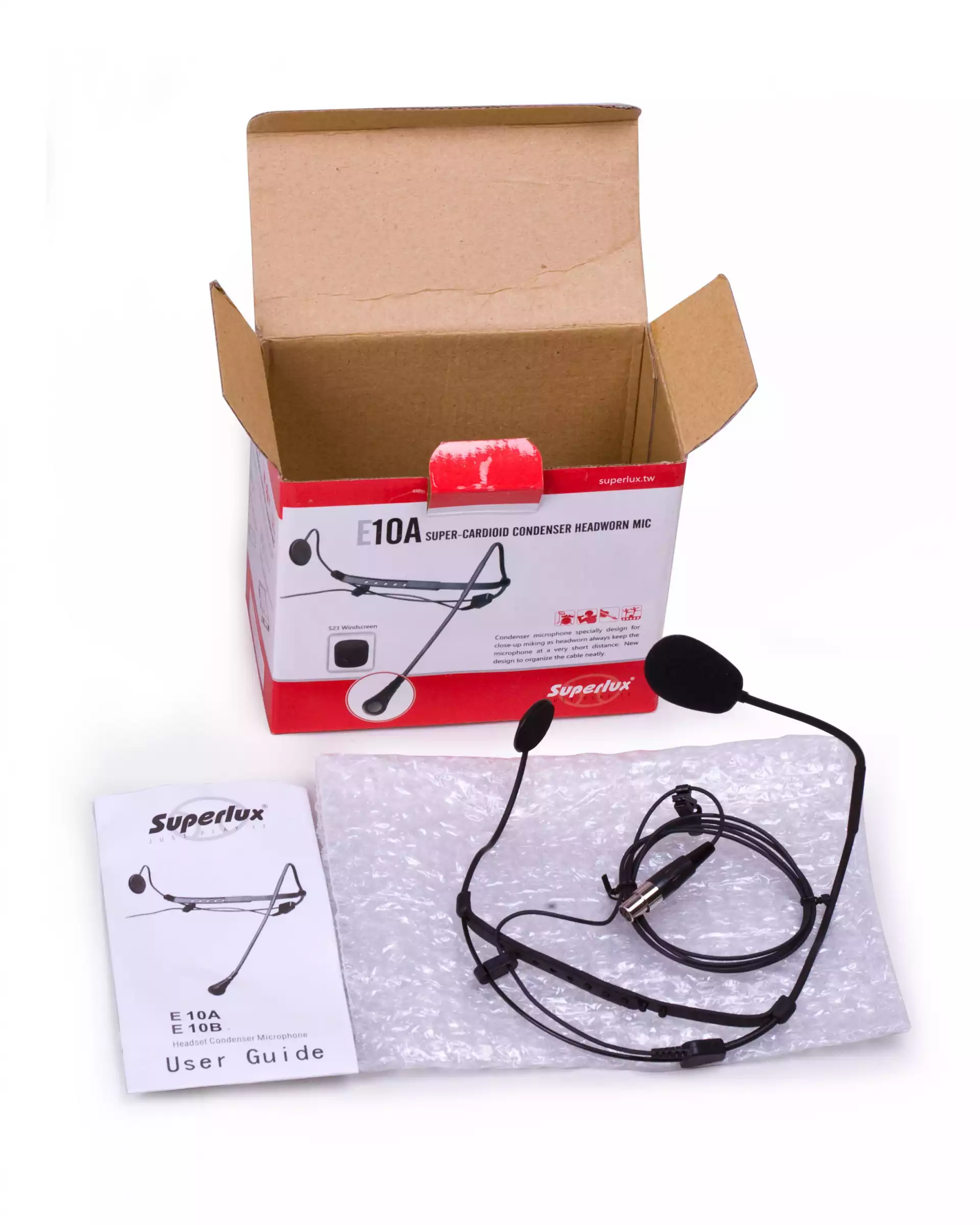

Accessories Furnished: E10ATQG S23 windscreen;clamp
                                 E10AXLR S23 windscreen; clamp;PS418S preamp
                                 E10ADXLR S23 windscreen, clamp, 1.5V AA alkaline battery PS418D preamp
Packaging: Colorful outer packaging
