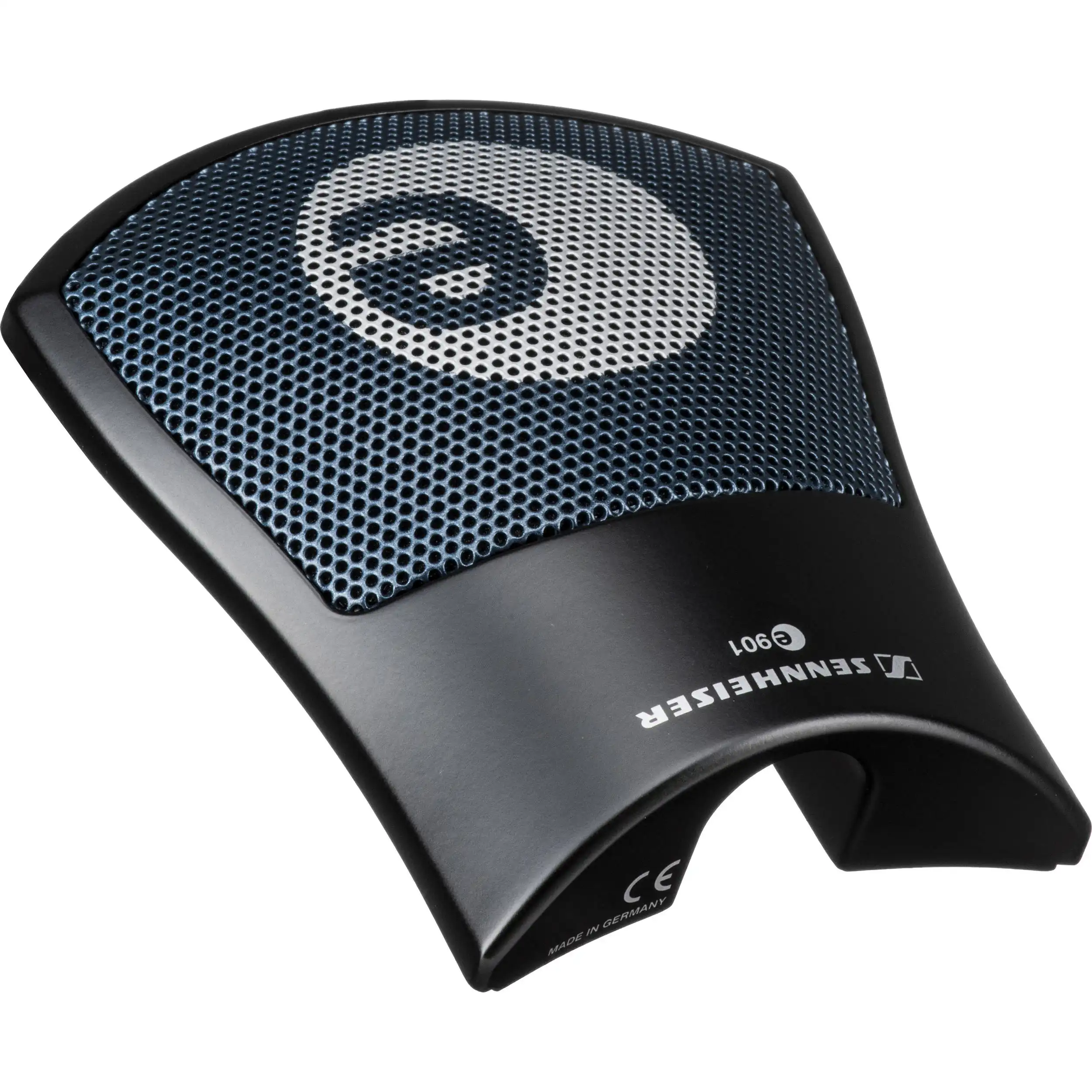

Sennheiser e 901
The Sennheiser e 901 is a professional, condenser boundary microphone optimized for capturing kick drums, bass, and Leslie cabinets, and other low-frequency sound sources on stage or in the studio.
The e 901 features a capsule with an extremely thin, high-strength diaphragm that delivers exceptional signal reproduction with low bass response and fast transient signals without peak distortion.
The half-cardioid polar pattern eliminates unwanted noise and reflections from the mounting surface for a clean and present sound.
No stand is needed as the e 901 can be positioned inside a kick drum laying over a towel or pillow—close to the beater for picking up the attack. Alternately, it can also be used on a lectern, conference table, altar, theatrical stage, or pianos and percussion to capture full-bodied voice or instrument sound.
The mic is ruggedly constructed, with a slip-free rubber pad underneath so it will stay put.
Optimized Frequency Response
The e 901 features a frequency response optimized for accurate reproduction of kick drums
High Sound Pressure and Fast Transient Reproduction
The e 901 handles very-high sound pressure levels and reproduces fast attacks and transients without distortion
Half-Cardioid Pickup Pattern
The half-cardioid pattern effectively rejects unwanted noise and reflection at the rear of the mic
Rubber Damping Plate
The e 901 features a slip-free, dampening rubber pad at the bottom that absorbs vibrations
Other Features
Integrated preamp

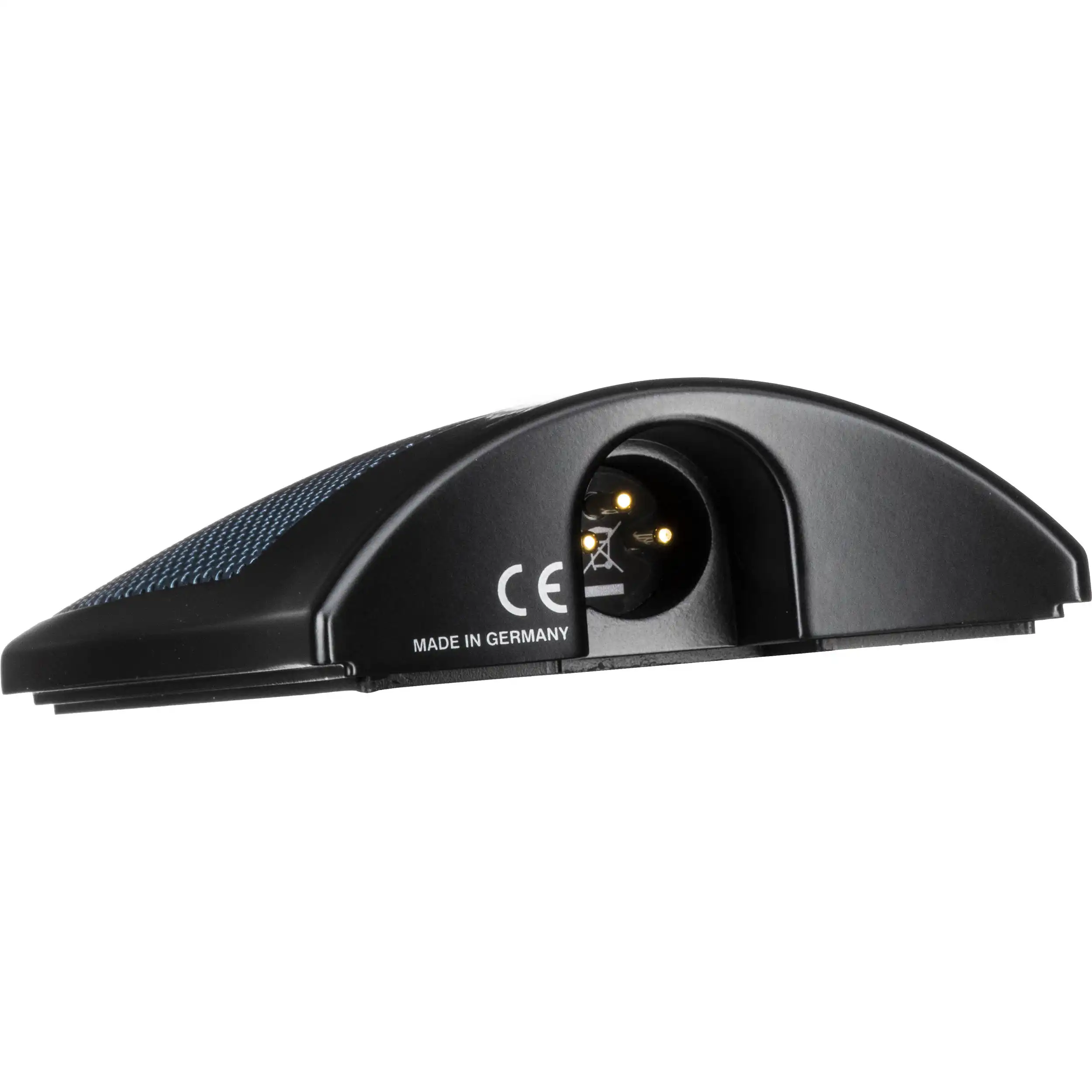

Gold-plated XLR connector
Powered via 48V phantom
Sennheiser E901 Specs
Microphone
Form Factor Boundary/Surface Mount
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Half-Cardioid
High-Pass Filter None
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 154 dB SPL
Impedance 100 Ohms
Load Impedance 1000 Ohms
Sensitivity 0.5 mV/Pa
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic)
Power
Operating Voltage 48 V (Phantom Power)
Physical
Mounting Instrument Surface Mount
Dimensions H: 1.04 x W: 4.13 x L: 4.98" / H: 26.5 x W: 105 x L: 126.5 mm
Weight 1.21 lb / 550 g
