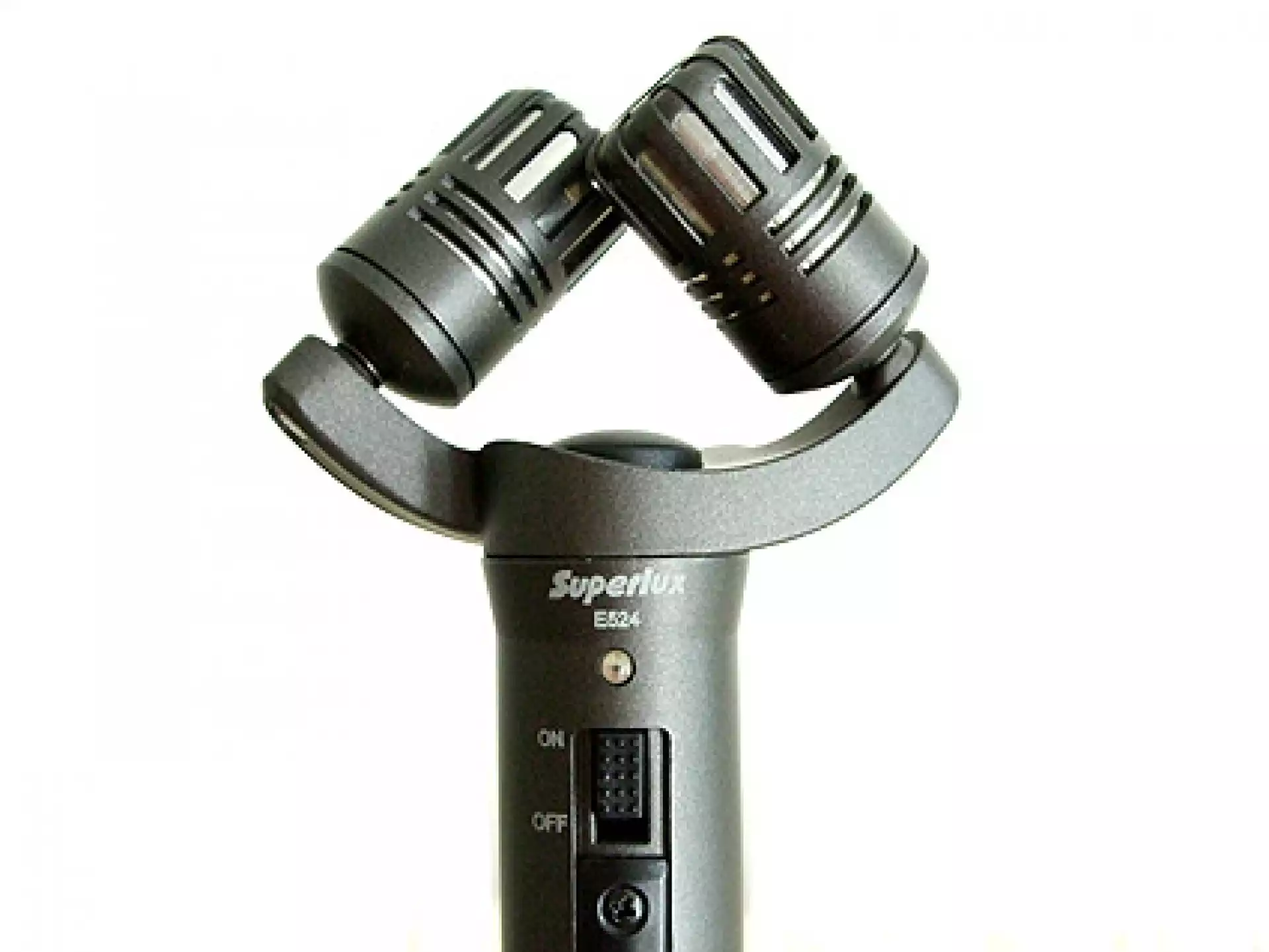

The E524D incorporates 2 electret condenser capsules in an XY 90˚ arrangement. This popular arrangement provides easy to achieve stereo high definition results. The E524D is suitable for live or stereo recording, with built-in blue LED indicator and powered by either battery or phantom power. It will meet the demands of both professionals and amateurs for a true stereo microphone.

XY stereo record mode please refer to the appendix of stereo techniques

Feature

• 2 back electret, Ø16 mm condenser capsules in an XY 90˚ arrangement
• Powered by 1.5V battery or 12 to 52V DC phantom power
• Balanced output
• Blue LED power on indicator
• Suitable for flash recorders

Application

• Live Sound
• Recording Studio
• Strings
• Piano
• Woodwinds
• Percussion

Type: Back electret, Ø16 mm (Ø0.63") (matched pair capsule )
Polar Pattern: Cardioid

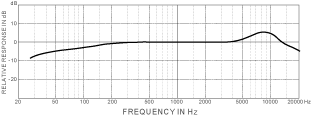

Frequency Response: 40-18,000 Hz



Sensitivity: -48 dBV/Pa (4 mV)
Output Impedance: 200 Ω
Min. Load Impedance: 1,000 Ω
S/N Ratio: 72 dB
Equivalent Output Noise: 22 dB
Max. SPL: 134 dB SPL
Dynamic Range: 112 dB
Power Requirements:
Phantom: 12-52V DC, 2 mA; Battery: 1.5V AA/UM3, 2 mA
Finish: Titanium grey
Connector: XLR5M
Dimensions:
Capsule Ø23.5 mm ( Ø0.93");(W × H)78 mm × 216 mm (3.07" × 8.5")
Net Weight: 340 g (12 oz)
Accessories Furnished: HM38 mic clip;DS01 table stand;S25 windscreen, pouch;1.5V AA alkaline battery
FM5AMM 5-meter mic cable with XLR-5F~2 × XLR3M;connectors
Optional Accessories: HM40C camera adapter
Packaging: A4 protective carrying case, colorful outer packaging
