Parlé TCM-1 Black
Šifra: 17960
AVB Beamtracking ceiling microphone, black.
| GENERAL | |
| Height | Microphone: 2 inches (51 mm) Plenum Box: 2 inches (51 mm) |
| Width | Microphone: 2.5 inches (63 mm) Plenum Box: 7 inches (178 mm) |
| Depth | Microphone: 2.5 inches (63 mm) Plenum Box: 7.125 inches (181 mm) |
| Weight | Microphone: 0.4 lbs (0.2 kg) Plenum Box: 2.4 lbs (1.1 kg) |

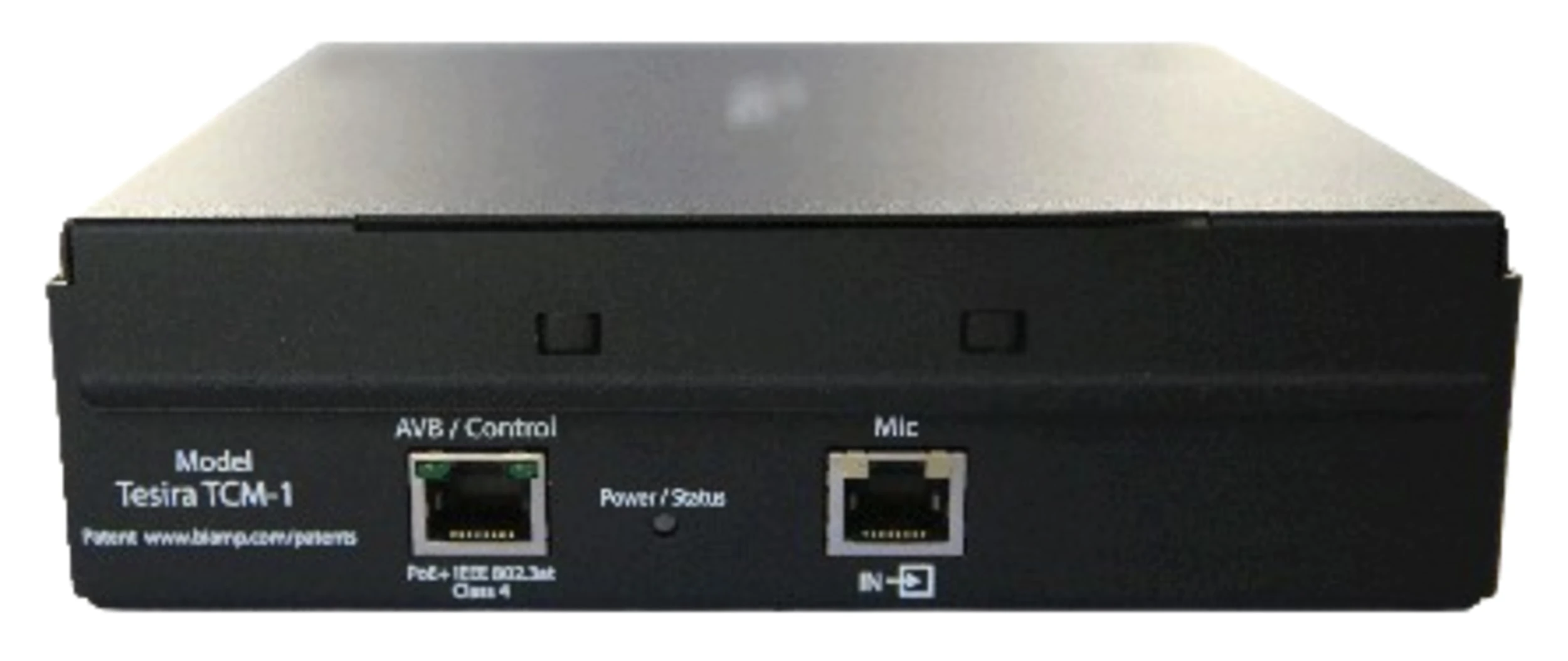

| Accessories | Plenum Box (included): Connectors: Two RJ-45: one between TCM-1 plenum box and switch, the other between TCM-1 plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1 microphone Digital Interface: Custom/Proprietary Max Distance Between Devices: 330 feet (100 meters) from switch to TCM-1 plenum box; 33 feet (10 meters) for daisy-chained connections between TCM plenum boxes |
| POWER | |
| Power | Plenum Box Power: PoE (IEEE 802.3at Class 3, 15.4W) |
| Power Indicator(s) | Plenum Box: (Green/Yellow/Red LED) Microphone: Mute Indicator (Green/Red LED) |
| AUDIO | |
| Microphone | Pendant: Microphone Technology: 8-Element Digital Array Polar Pattern: Beamformed Sensitivity (94dB SPL, 1kHz): > 70dB Dynamic Range (THD+N < 10%): 92dB, A-Weighted Digital Interface: Custom/Proprietary Connector: Custom 2-pin (cable length 10 feet [3 meters]) |
| Frequency Response | (150 Hz - 16 kHz): ± 3dB |
| SPL | (at 0.5% THD): 106dB |
| CERTIFIED SOLUTIONS | |
| TAA Compliant | TAA Compliant |
| COMPLIANCE | |
| Certifications | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
Key Features
Beamtracking technology actively tracks and intelligently mixes conversations
Three 120-degree zones for 360-degree coverage
Plenum box includes DSP for Beamtracking
LED mute status indicator
User-adjustable microphone height
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Pendant microphone available in either white or black
Optional tile bridge mounting accessory available
Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
CE marked, UL listed, and RoHS compliant
Compliant with the US Trade Agreement Act (TAA)
