Parlé TCM-1EX Black
Šifra: 17961
Expansion AVB Beamtracking pendant microphone, black.
| GENERAL | |
| Height | Microphone: 2 inches (51 mm) Plenum Box: 2 inches (51 mm) |
| Width | Microphone: 2.5 inches (63 mm) Plenum Box: 4 inches (102 mm) |
| Depth | Microphone: 2.5 inches (63 mm) Plenum Box: 5.25 inches (133 mm) |
| Weight | Microphone: 0.4 lbs (0.2 kg) Plenum Box: 0.8 lbs (0.4 kg) |

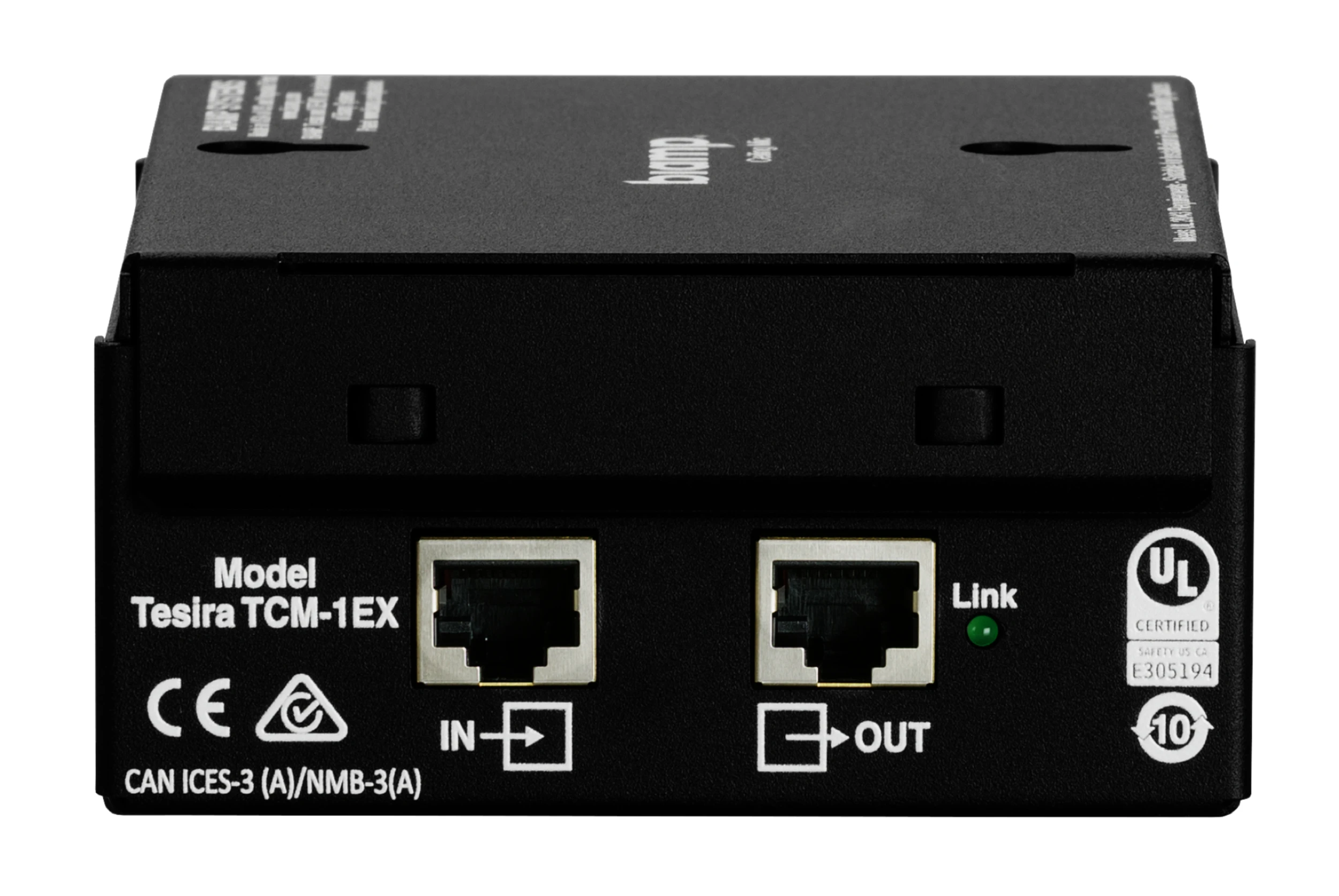

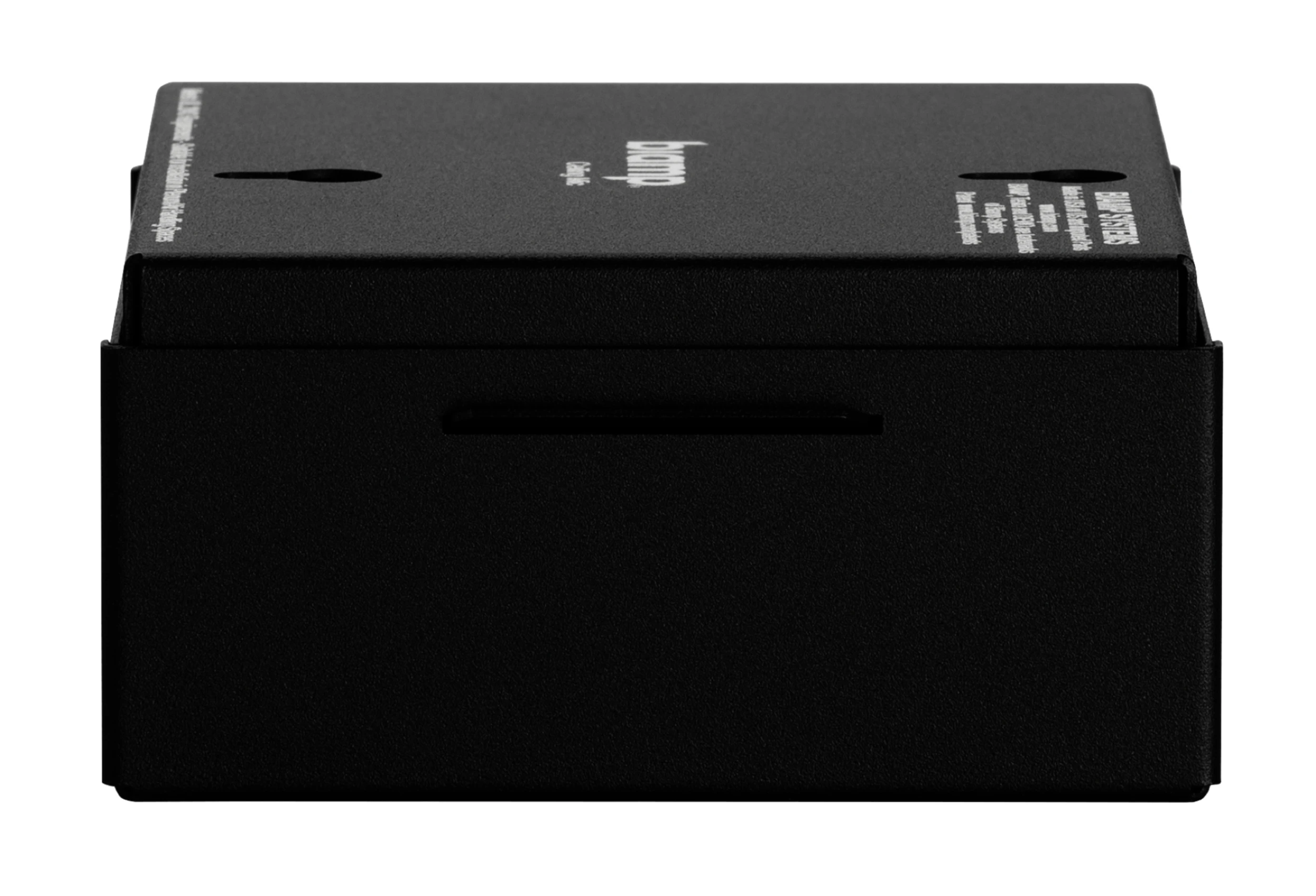

| Accessories | Plenum Box (included): Connectors: Two RJ-45: one between TCM-1EX plenum box and TCM-1 or TCM-1A, the other between TCM-1EX plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1EX microphone Digital Interface: Custom/Proprietary Max Distance Between Devices: 33 feet (10 meters) between TCM plenum boxes |
| POWER | |
| Power | Plenum Box: Custom/Proprietary |
| Power Indicator(s) | Plenum Box: Link Indicator (Green LED) Microphone: Mute Indicator (Green/Red LED) |
| AUDIO | |
| Microphone | Pendant: Microphone Technology: 8-Element Digital Array Polar Pattern: Beamformed Sensitivity (94dB SPL, 1kHz): > 70dB Digital Interface: Custom/Proprietary Connector: Custom 2-pin (cable length 10 feet [3 meters]) |
| Frequency Response | (150 Hz - 16 kHz): ± 3dB |
| Dynamic Range | (THD+N < 10%): 92dB, A-Weighted |
| SPL | (at 0.5% THD): 106dB |
| CERTIFIED SOLUTIONS | |
| TAA Compliant | TAA Compliant |
| COMPLIANCE | |
| Certifications | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
Key Features
Must be used with a Parlé TCM-1 or TCM-1A microphone
Beamtracking technology actively tracks and intelligently mixes conversations
Three 120-degree zones for 360-degree coverage
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Pendant microphone available in either white or black
Optional tile bridge mounting accessory available
Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
CE marked, UL listed, and RoHS compliant
Compliant with the US Trade Agreement Act (TAA)
