Sennheiser TeamConnect Ceiling Medium F-W
With a coverage of up to 40 m², our ceiling microphone TeamConnect Ceiling Medium is the right choice for mid-sized meeting rooms and lecture or collaboration spaces. With this solution, Sennheiser provides an additional design option to seamlessly include our audibly better ceiling microphone into your meeting room.
Features
• Patented automatic dynamic beamforming
• TruVoicelift
• 15 Electret condenser capsules, made in Germany
• Perfect speech intelligibility
• Dante or Analog Output
• PoE/PoE+ powered (single/daisy chaining)
• Single-cable mode
• Exclusion & Priority Zones
• Camera Control via talker position data
• Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2

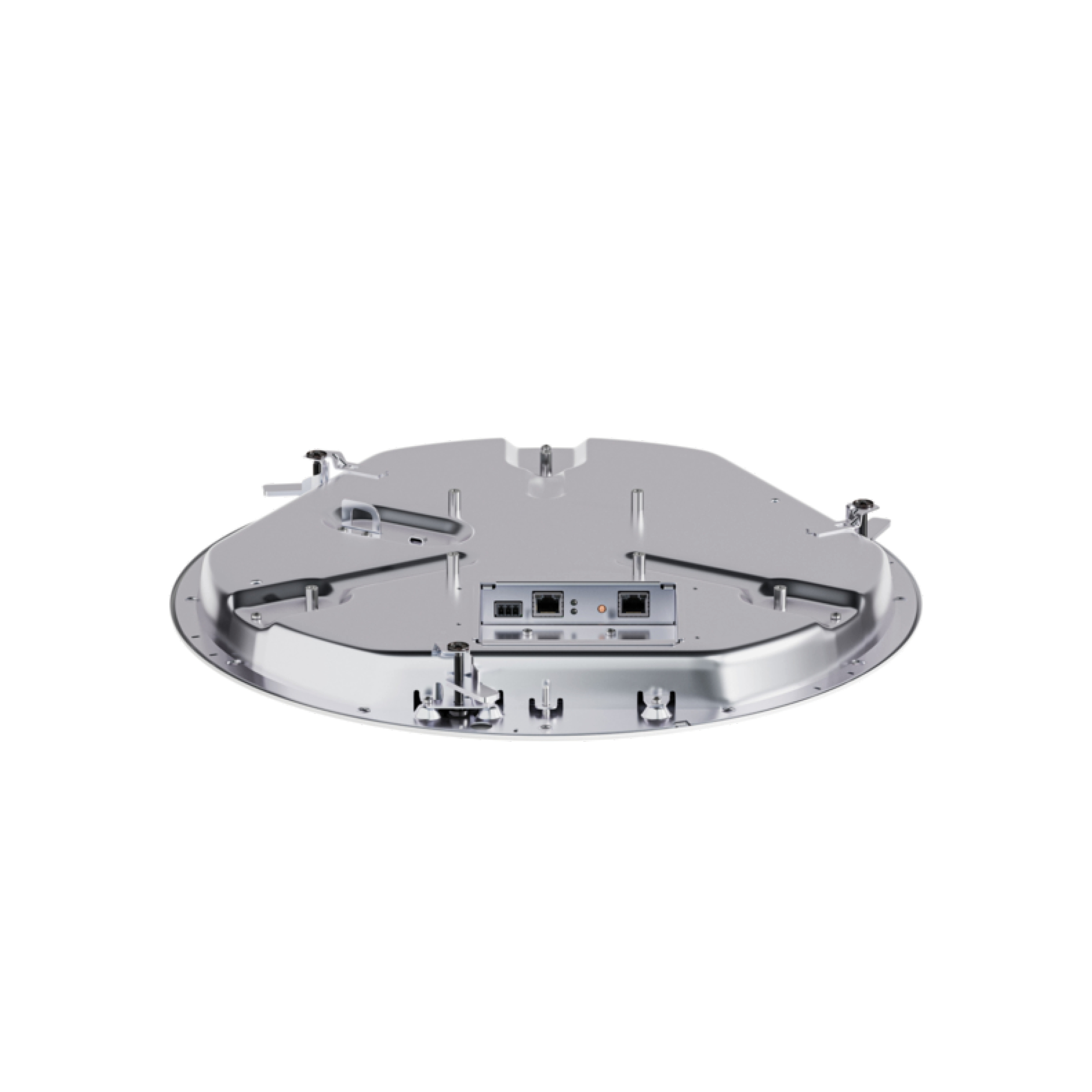

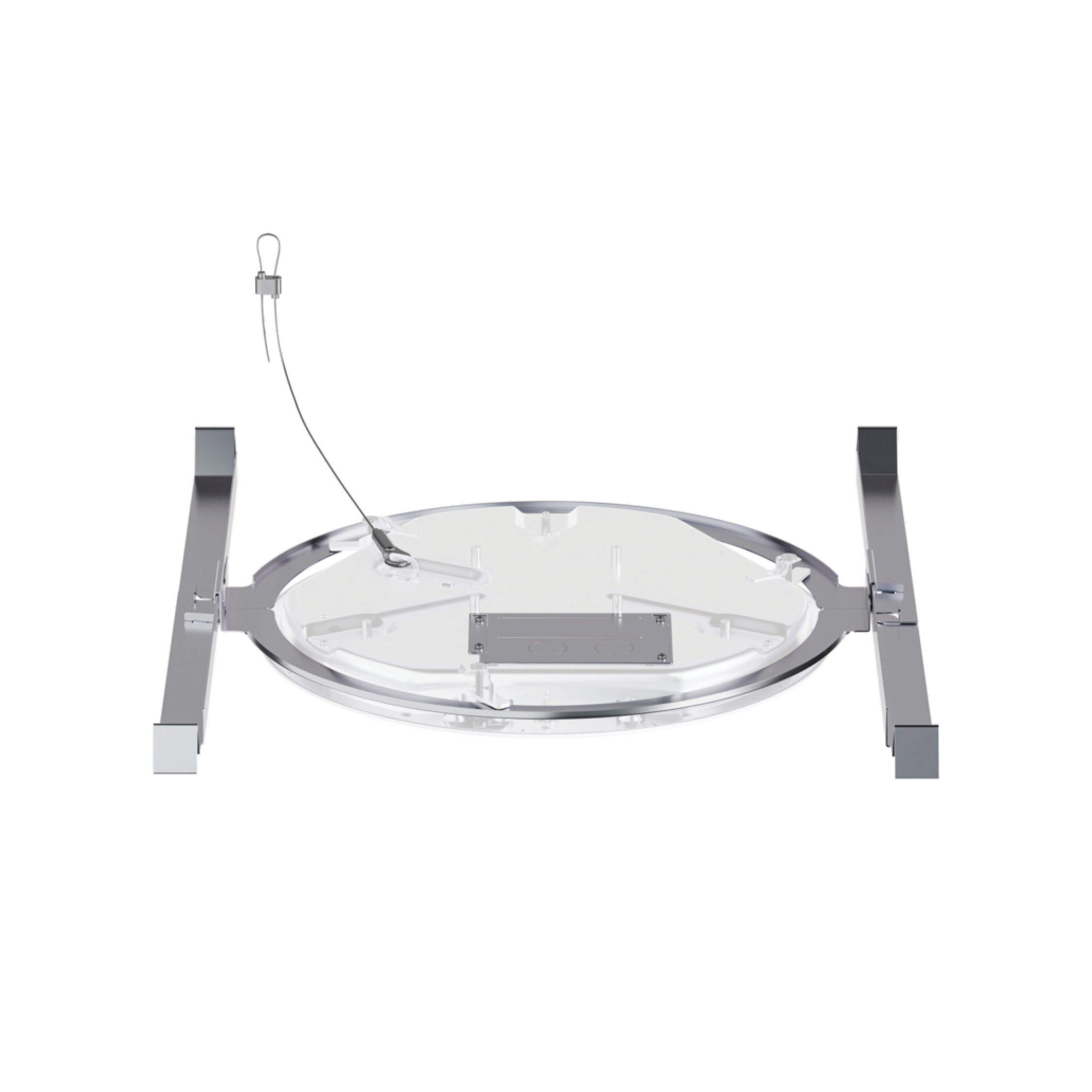

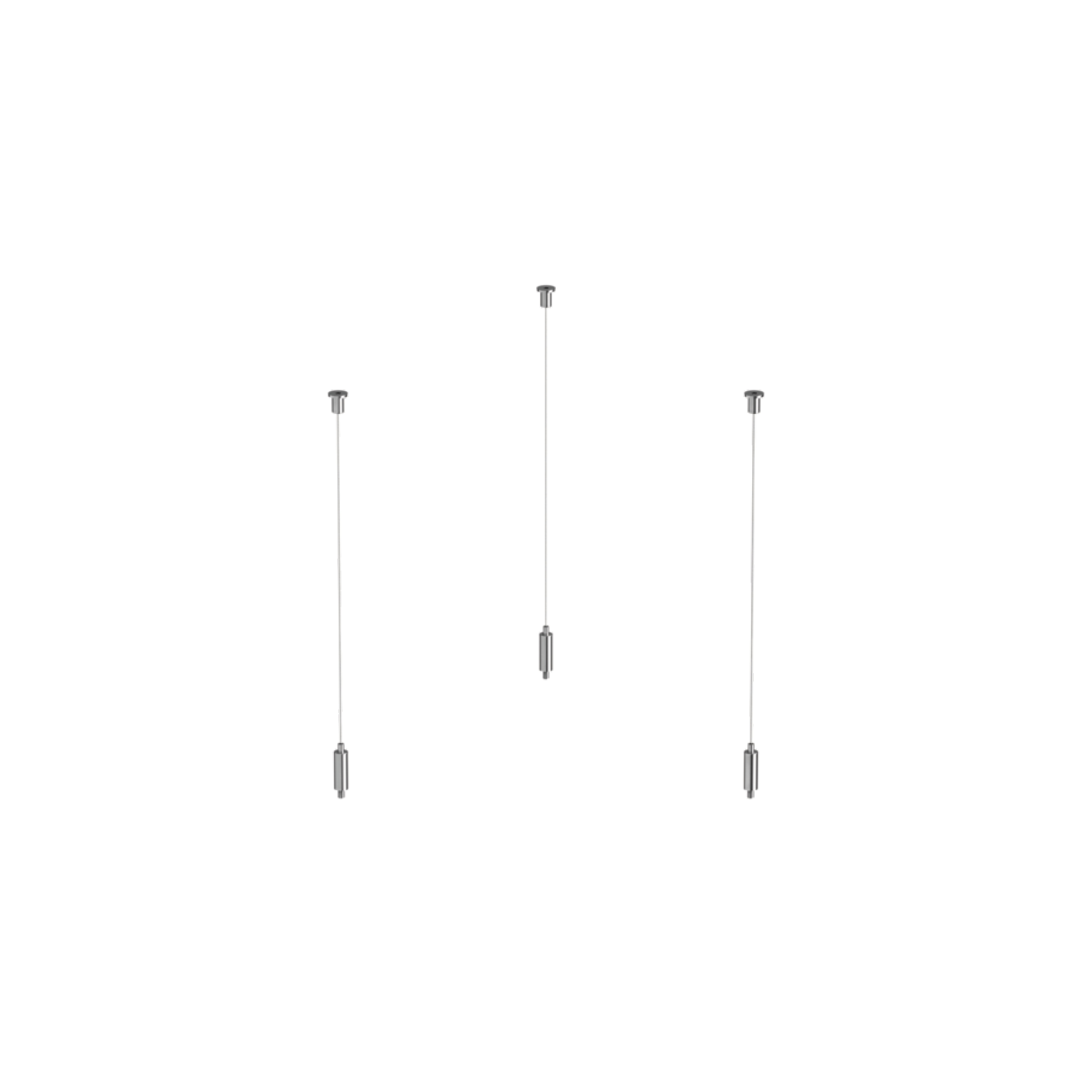

• Options for flush, surface, suspended or VESA mounting
• Easily paintable metal housing
• IEEE 802.1x
Tech Specs
Product
Transducer principle: Pre-polarized condenser microphone
Warranty AMER (years): 5
Frequency Specifications
Af frequency response (Hz): 100 Hz to 16,000 Hz
Acoustic Properties
Dynamic range (>): 81 dB (A)
Equivalent noise level (db): 17 dB (A)
Max. sound pressure level: 98 dB SPL
Signal-to-noise ratio: 77 dB (A)
Inputs/Outputs
Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Ambient Conditions
Operating relative humidity (≤ %): 20 to 95%, non-condensing
Battery & Power
Power consumption (Amp): Approx. 8 W
Electrical Properties
Sensitivity: 0 dBV/Pa (1020 mV/Pa)
Dimensions
Height (mm): 92
Length (mm): 525
Master carton height (mm): 470
Master carton length (mm): 760
Master carton weight (g): 1650
Master carton width (mm): 760
Weight (g): max. 4,9 kg (10.8lbs)
Width (mm): 455
Package Depth (mm): 450
Package Height (mm): 100
Package Weight (g): 6640
Package Width (mm): 520
